1-Fiber Single-Mode Seamless Tube Armored Temperature Sensing Cable

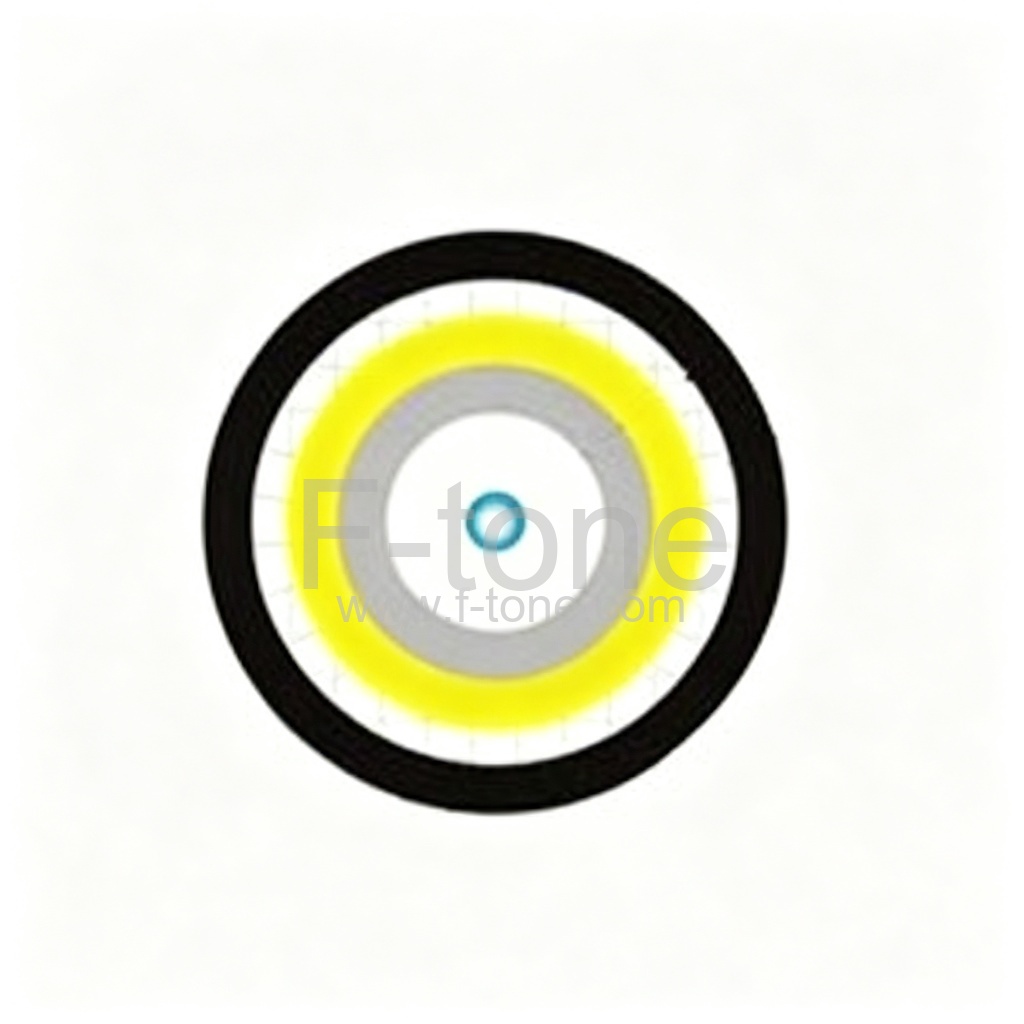

The FT-858 is a 1-fiber single-mode temperature sensing cable that seals the optical fiber inside a seamless stainless steel tube for long-term deployment in harsh environments. The hermetic tube construction gives the cable strong rust resistance and waterproofing while keeping the diameter small at 4.00 mm and the intensity high. The single-mode fiber measures 9.2±0.4 μm in core diameter, with attenuation of 0.4 dB/km at 1310 nm and 0.3 dB/km at 1550 nm. An LSZH or PVC flame-retardant outer jacket completes the structure. Mechanical ratings include 200 N long-term and 400 N short-term tension, 800 N long-term and 1000 N short-term crush, and an operating range of -20 to +90 °C.

Key Features

• Seamless stainless steel tube armor protects the fiber; small 4.00 mm diameter with high intensity
• Hermetic tube design for rust resistance and waterproofing
• LSZH or PVC flame-retardant outer jacket
• Single-mode fiber, 9.2±0.4 μm core; attenuation 0.4 dB/km at 1310 nm, 0.3 dB/km at 1550 nm
• Tension rating 200 N long-term / 400 N short-term; crush rating 800 N long-term / 1000 N short-term
• Bend radius 20D dynamic / 10D static; operating temperature -20 to +90 °C

Applications

• Distributed temperature sensing along pipelines, power cables and tunnels
• Temperature and stress measurement in tanks, mines and chemical plants
• Disaster prevention and structural safety monitoring
