1 / 6MODEL · FT-10M-OM4-3
10m LC UPC Duplex OM4 Patch, 2.0mm PVC OFNR
F-tone Networks 10m (33ft) LC UPC to LC UPC duplex OM4 patch, 2.0mm PVC (OFNR), ClearCurve glass, IL<=0.3dB, RL>=20dB. Ask Betty or Una for a quote today.
- Connector A
- LC UPC
- Connector B
- LC UPC
- Fiber Type
- OM4 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM4-3 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | LC UPC |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Aqua/Violet |
| 应用 | 40G/100G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Connector Type | LC Uniboot |
| Fiber Mode | OM4 50/125 m |
| Polish | UPC/UPC |
| Durability | 500 Cycles |
| Designation | Fiber Dia.( m) |
| OM3 (Laser Optimized) | 50/125 |
| OM4 (Laser Optimized) | 50/125 |
| Singlemode | 9/125 |
| Ferrule Hole Sizes | 125.0+1/-0 m Concentricity |
| Connector | LC to LC |
| Polarity | A(Tx) to B(Rx) |
| Polish Type | UPC to UPC |
Overview
Product details

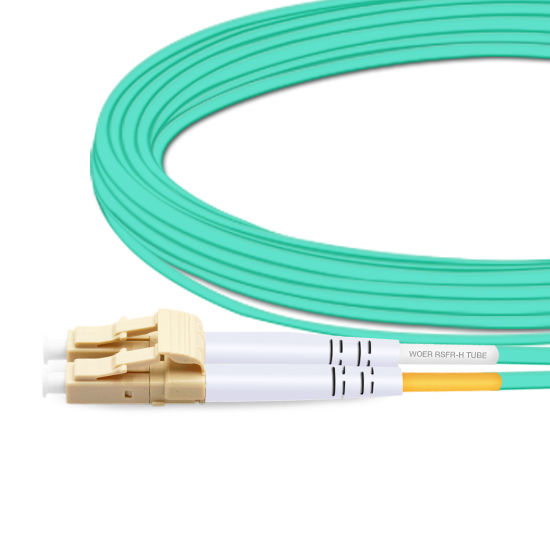

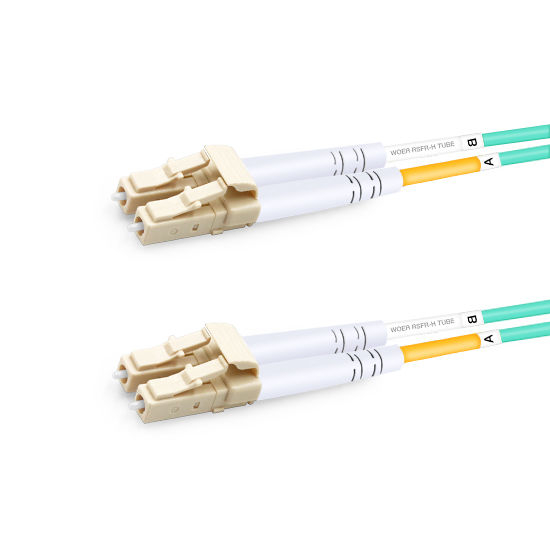

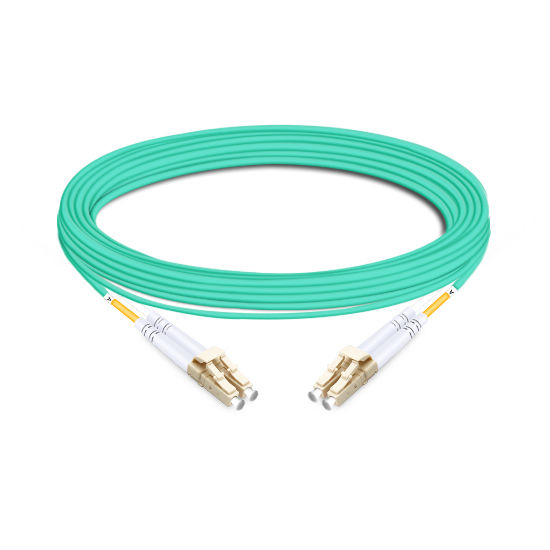

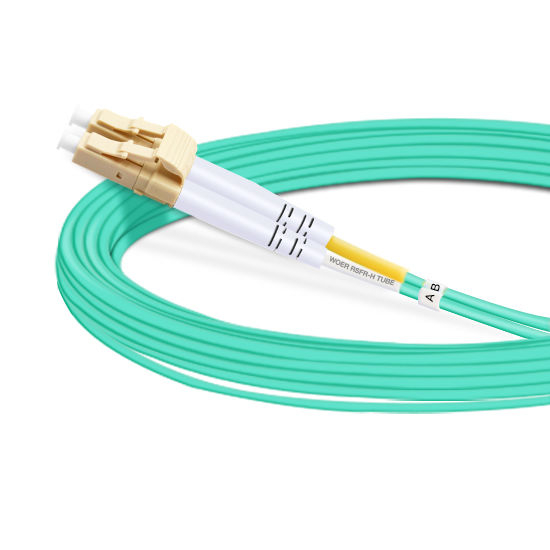

Aqua OM4 duplex between matching LC UPC tips covers short 40G/100G multimode hops. ClearCurve glass under PVC (OFNR) spans 10m (33ft) at 2.0 mm Uniboot. Caps: IL <=0.3 dB, RL >=20 dB, bend 7.5 mm; 850/1300 nm attenuation as listed.
Key Features
- Matching LC UPC duplex (Uniboot) ends
- OM4 50/125 multimode ClearCurve
- PVC (OFNR) jacket at 2.0 mm OD
- IL <=0.3 dB / RL >=20 dB
- 10m (33ft) aqua/violet build
Applications
- 40G/100G OM4 short reaches
- LC-to-LC multimode patching in riser spaces
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | LC UPC |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Aqua/Violet |
| Application | 40G/100G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Connector Type | LC Uniboot |
| Fiber Mode | OM4 50/125 m |
| Polish | UPC/UPC |
| Durability | 500 Cycles |
| Connector | LC to LC |
| Polarity | A(Tx) to B(Rx) |
| Polish Type | UPC to UPC |
