1 / 6MODEL · FT-10M-OM3-3

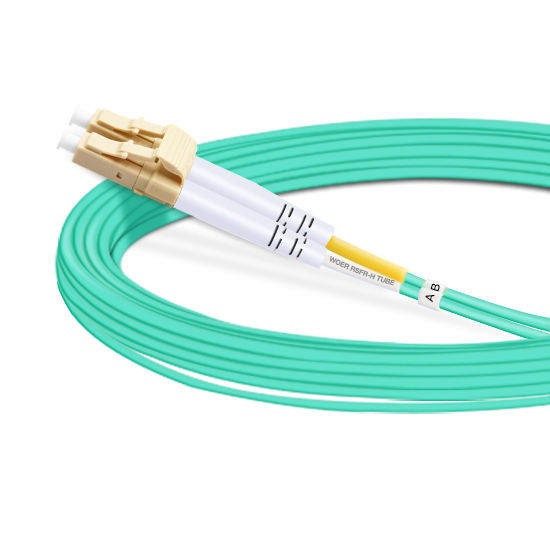

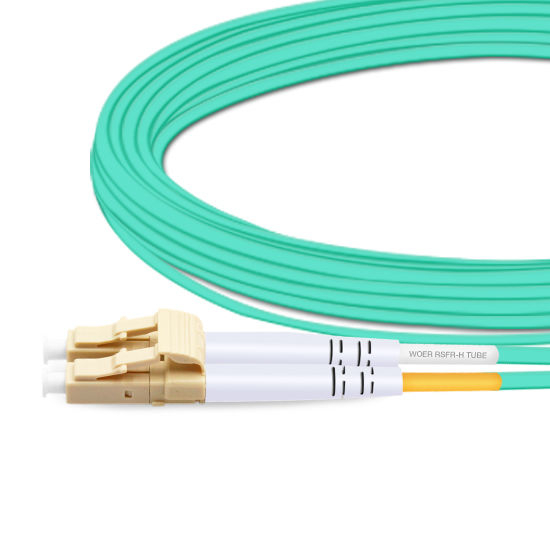

10m Duplex OM3 LC Uniboot Patch, PVC OFNR 3.0mm
F-tone Networks 10m (33ft) LC Uniboot duplex OM3 PVC(OFNR) patch, ClearCurve aqua, IL<=0.3dB RL>=20dB, 500 cycles. Contact Betty or Una for pricing .
- Connector A
- LC UPC
- Connector B
- LC UPC
- Fiber Type
- OM3 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM3-3 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | LC UPC |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Aqua |
| 应用 | 10G/40G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Connector Type | LC Uniboot |
| Fiber Mode | OM3 50/125 m |
| Polish | UPC/UPC |
| Durability | 500 Cycles |
| Designation | Fiber Dia.( m) |
| OM3 (Laser Optimized) | 50/125 |
| OM4 (Laser Optimized) | 50/125 |
| Singlemode | 9/125 |
| Ferrule Hole Sizes | 125.0+1/-0 m Concentricity |
| Connector | Push Pull Tab LC to Push Pull Tab LC |
| Polish Type | UPC to UPC |
Overview
Product details
Aqua OM3 under PVC (OFNR) with LC Uniboot push-pull tabs for dense multimode patching. Title identity 3.0 mm (conflicting 2.0 mm diameter dropped). ClearCurve glass, 10m (33ft), IL <=0.3 dB, RL >=20 dB, durability 500 cycles, bend 7.5 mm.
Key Features
- LC Uniboot push-pull tab duplex
- OM3 50/125 multimode
- PVC (OFNR) aqua jacket
- ClearCurve glass, 10m (33ft)
- IL <=0.3 dB / RL >=20 dB, 500 cycles
Applications
- OM3 LC Uniboot high-density patching
- 10G/40G multimode short reaches
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | LC UPC |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Fiber Color | Aqua |
| Application | 10G/40G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Connector Type | LC Uniboot |
| Fiber Mode | OM3 50/125 m |
| Polish | UPC/UPC |
| Durability | 500 Cycles |
| Ferrule Hole Sizes | 125.0+1/-0 m Concentricity |
| Connector | Push Pull Tab LC to Push Pull Tab LC |
| Polish Type | UPC to UPC |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
