1 / 6MODEL · FT-10M-OM2-3

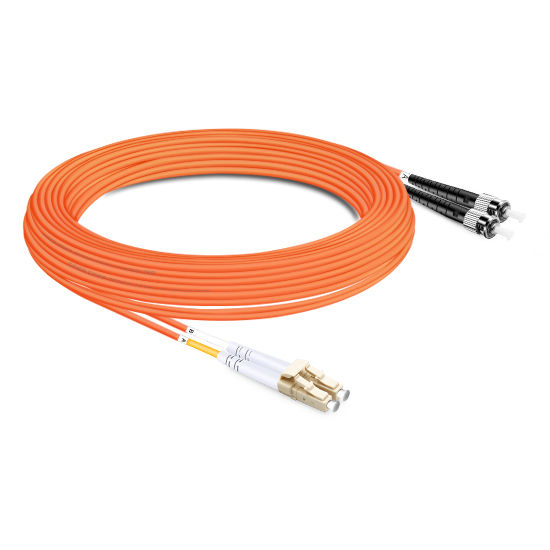

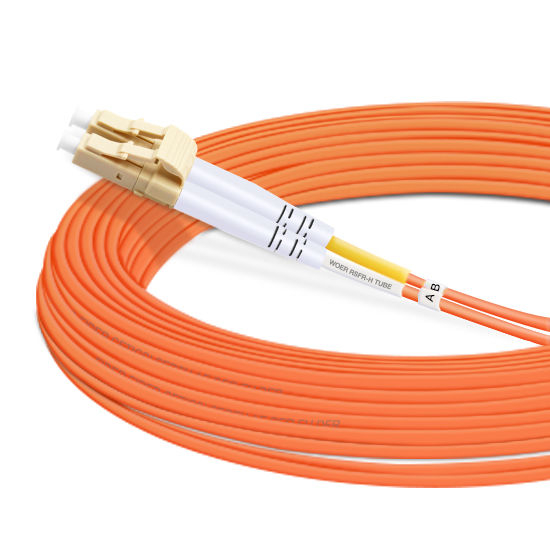

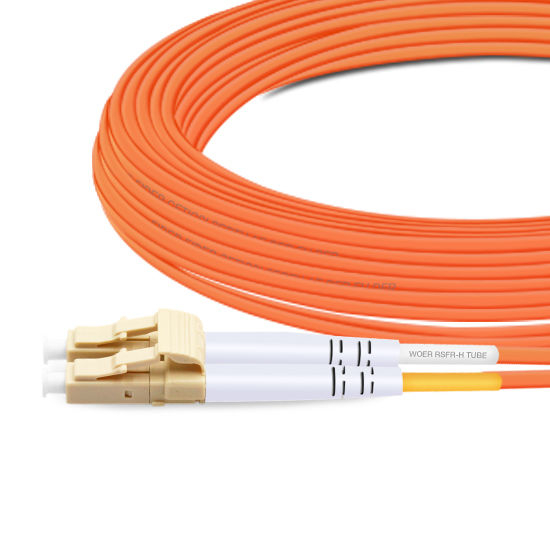

10m LC to ST UPC Duplex OM2 Patch, 2.0mm LSZH
F-tone Networks 10m (33ft) LC UPC to ST UPC duplex OM2 patch, 2.0mm LSZH orange, ClearCurve glass, IL<=0.3dB, RL>=20dB. Ask Betty or Una for a quote now.
- Connector A
- LC UPC
- Connector B
- ST UPC
- Fiber Type
- OM2 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM2-3 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | ST UPC |
| Fiber Type | OM2 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Orange |
| 应用 | FE/GE Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Connector | LC to ST |
| Fiber Mode | 50/125 m |
| Polish | UPC to UPC |
| Polarity | A(Tx) to B(Rx) |
Overview
Product details
Bridge an LC UPC optic face onto ST UPC bulkheads on orange OM2 glass. Low-smoke LSZH (specs) houses ClearCurve across 10m (33ft) at 2.0 mm. Caps: IL <=0.3 dB, RL >=20 dB, bend 7.5 mm for FE/GE multimode closets.
Key Features
- LC UPC paired with ST UPC
- OM2 50/125 multimode ClearCurve
- LSZH orange jacket at 2.0 mm
- IL <=0.3 dB / RL >=20 dB
- 10m (33ft) FE/GE multimode build
Applications
- FE/GE multimode LC-to-ST patching
- Legacy OM2 interconnects in LSZH spaces
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | ST UPC |
| Fiber Type | OM2 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Orange |
| Application | FE/GE Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Connector | LC to ST |
| Fiber Mode | 50/125 m |
| Polish | UPC to UPC |
| Polarity | A(Tx) to B(Rx) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
