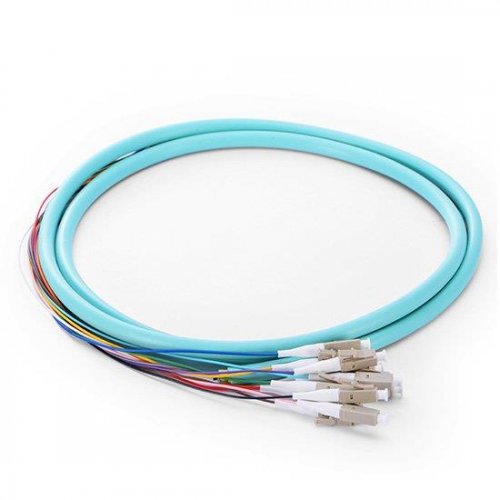

FT-0-9MM-OM4 OM4 LC UPC 12-Fiber Multimode Pigtail Cable 1.5m

Overview

The FT-0-9MM-OM4 is a 1.5-meter 12-fiber multimode pigtail assembly built on 50/125 um OM4 fiber. One end is factory-terminated with LC UPC connectors; the far end is left unterminated for fusion splicing or field termination. The aqua PVC jacket identifies OM4 grade at a glance, and the 0.9 mm tight-buffered legs strip easily for fast preparation. Breakout legs extend 0.3 m from the fan-out point. Insertion loss is rated at 0.3 dB with 50 dB return loss at 850 and 1310 nm. The connector exceeds 1000 mating cycles for durable service. The assembly simplifies high-density OM4 terminations in data centers, telecom rooms and enterprise networks.

Key Features

• 12-fiber 50/125 um OM4 multimode; LC UPC terminated, unterminated far end
• 1.5 m length; 0.3 m breakout legs; 0.9 mm aqua PVC jacket
• Insertion loss 0.3 dB; return loss 50 dB; interchangeability 0.2 dB
• Connector durability over 1000 mating cycles
• Easy-strip color-coded buffer for fast, error-free installation
• Operating -40 to 75 C; storage -45 to 85 C

Applications

• Data center fiber cabling
• Telecom networks
• Local and wide area networks
• Indoor fiber installations

Specifications
