MODEL · FT-10M-26

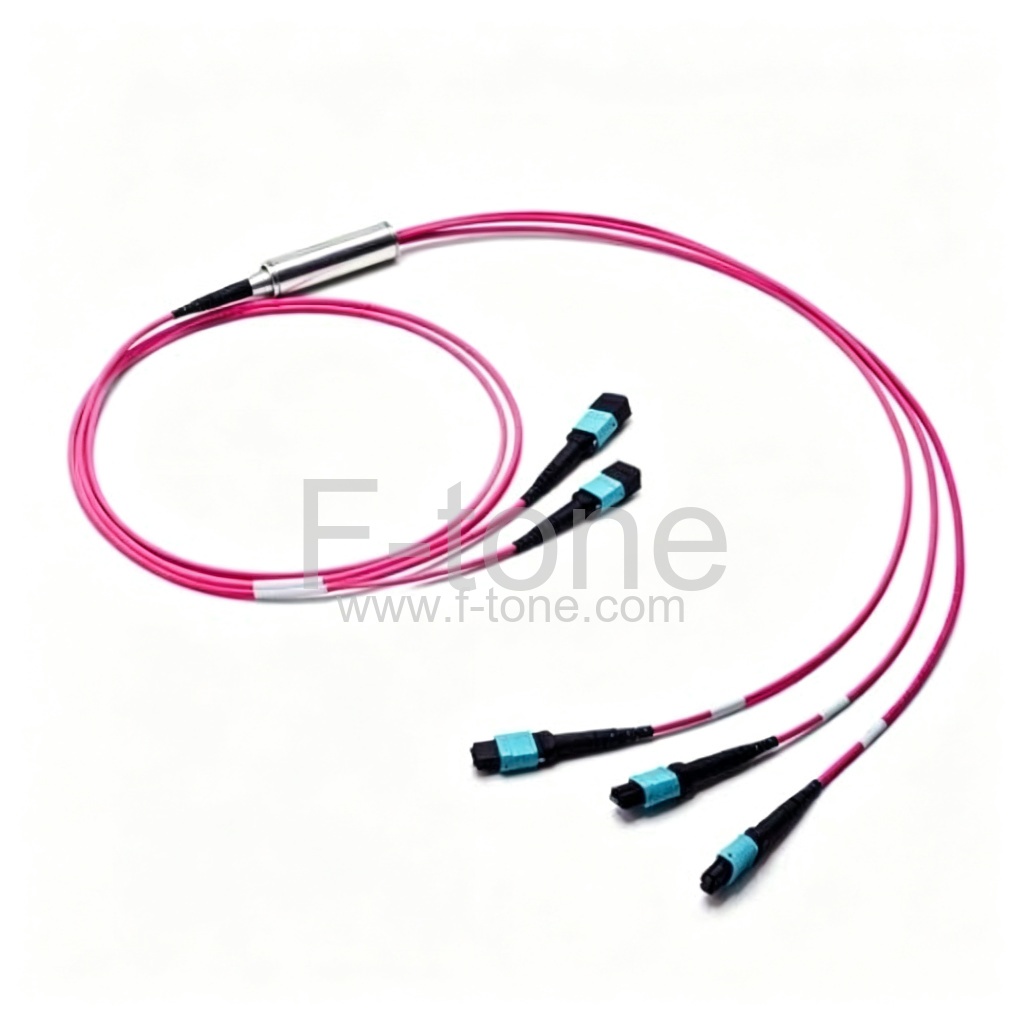

10m 2xMTP to 3xMTP OM4 Conversion, Magenta LSZH
F-tone Networks 10m 2x MTP to 3x MTP OM4 conversion, 24F female polarity B magenta LSZH, IL 0.6dB RL 20dB. Ask Betty or Una for a quote. In stock paths vary.
- Fiber Connector
- 2xMTP to 3xMTP
- Jacket OD
- 3.0 mm
- Fiber Category
- 50/125 m MM (OM4)
- Gender
- Female to Female
- Fiber Count
- 24
- Test Wavelength
- 850nm
Reference model FT-10M-26 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Fiber Connector | 2xMTP to 3xMTP |
|---|---|
| Jacket OD | 3.0 mm |
| Fiber Category | 50/125 m MM (OM4) |
| Gender | Female to Female |
| Fiber Count | 24 |
| Test Wavelength | 850nm |
| Insertion Loss | 0.6dB |
| Return Loss | 20dB |
| Polarity | Type B (Full-Flipped) |
| Durability | 500 times |
| Operating Temperature | -40 ~ 80C |
| Fiber Grade | G651 |
| Flame Rating | LSZH |
| Outer Jacket Color | Magenta |
| Designation | Fiber Dia.( m) |
| Type | 10Gbps Ethernet 10GBASE SR/LR |
| 40Gbps Ethernet 40GBASE SR4/PLRL4 | 100Gbps Ethernet 100GBASE SR10/IR4 |
| Multimode | 400 Meters (SR) |
| Not supported | Not supported |
| OM3 (Laser Optimized) | 50/125 |
| 100 Meters (SR4) | 100 Meters (SR10) |
| OM4 (Laser Optimized) | 50/125 |
| 150 Meters (SR4) | 150 Meters (SR10) |
| Singlemode | 10 KM at 1310nm (LR) |
| 1KM (PLRL4) | 2KM (IR4 PSM) |
Overview
Product details
Magenta LSZH jacket marks this twenty-four-fiber OM4 conversion between dual and triple MTP female faces. Polarity B, IL 0.6 dB, RL 20 dB, G651 grade, durability 500 cycles, ambient -40 C to 80 C, jacket OD 3.0 mm.
Key Features
- 2x MTP to 3x MTP female-to-female
- Twenty-four OM4 50/125 strands
- Polarity B, magenta LSZH, 3.0 mm OD
- IL 0.6 dB / RL 20 dB
- Durability 500 cycles, -40 C to 80 C
Applications
- OM4 MTP conversion with color-coded LSZH
- Twenty-four-fiber multimode polarity-B harnesses
Specifications
| Parameter | Value |
|---|---|
| Fiber Connector | 2xMTP to 3xMTP |
| Jacket OD | 3.0 mm |
| Fiber Category | 50/125 m MM (OM4) |
| Gender | Female to Female |
| Fiber Count | 24 |
| Test Wavelength | 850nm |
| Insertion Loss | 0.6dB |
| Return Loss | 20dB |
| Polarity | Type B (Full-Flipped) |
| Durability | 500 times |
| Operating Temperature | -40 ~ 80C |
| Fiber Grade | G651 |
| Flame Rating | LSZH |
| Outer Jacket Color | Magenta |
