FT-0-9MM-OM3 OM3 LC UPC 12-Fiber Multimode Patch Cable 1.5m

Overview

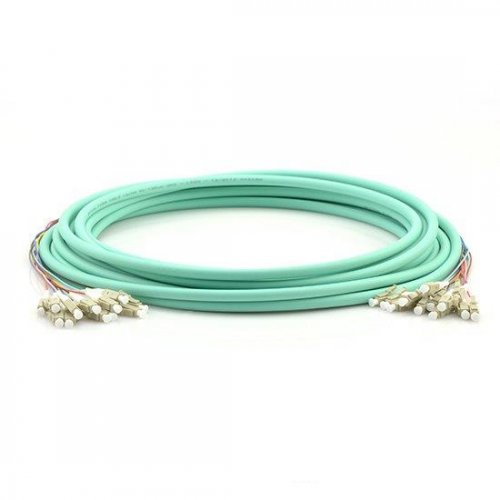

The FT-0-9MM-OM3 is a 1.5-meter preterminated multimode cable built on 50/125 um OM3 fiber. Twelve fibers are factory-terminated with LC UPC connectors on both ends, arriving ready for immediate installation with no field termination. The aqua PVC jacket marks the OM3 grade, and the 0.9 mm legs stay flexible for routing, with 0.5 m breakout legs at each fan-out point. Insertion loss is rated at 0.3 dB with 50 dB return loss at 850 and 1310 nm. The cable operates from -40 to 75 C and is rated for indoor use. It suits high-density 10G, 40G and 100G parallel-optics links in data centers and telecom rooms.

Key Features

• 12-fiber 50/125 um OM3 multimode; LC UPC on both ends
• 1.5 m length; 0.5 m breakout legs; 0.9 mm aqua PVC jacket
• Insertion loss 0.3 dB; return loss 50 dB; interchangeability 0.2 dB
• Connector durability over 1000 mating cycles
• Easy-strip color-coded buffer for fast, error-free installation
• Indoor use; operating -40 to 75 C, storage -45 to 85 C

Applications

• Data center high-density fiber links
• Telecom networks
• Local and wide area networks
• CATV and metro test setups

Specifications
