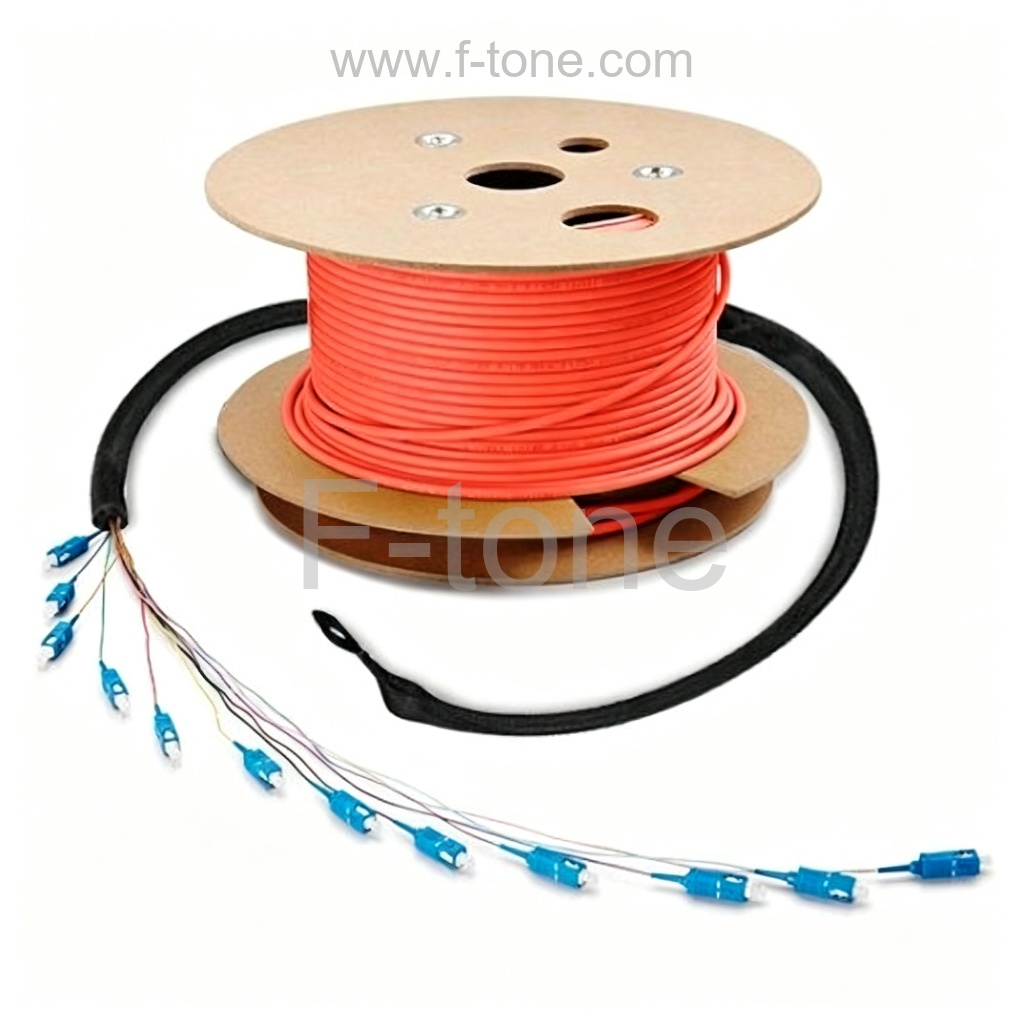

OM2 50/125 µm Armored TPU Patch Cable, LC/SC/ST/FC/MTP/IP67

The FT-OM2-8 from F-tone Networks is a ruggedized OM2 50/125 µm multimode patch cable with a black TPU armored jacket for sites where standard indoor cable would not survive. It terminates with LC, SC, ST, FC, MTP, IP67, ODC or YZC connectors and carries 1 to 24 fibers. The cable resists 1000 N long-term and 3000 N short-term crush loads, 200 impacts and 2000 flex cycles, with tensile ratings of 200 to 600 N. Insertion loss is 0.3 dB or less on LC/SC/ST/FC connectors, return loss at least 50 dB UPC, and the operating range is -40 to 85 °C. These traits suit outdoor, industrial and base-station links exposed to crushing, impact and repeated bending.

Key Features

• OM2 50/125 µm multimode fiber, 1 to 24 fibers per cable
• Black TPU (thermoplastic polyurethane) armored jacket
• LC/SC/ST/FC/MTP/IP67/ODC/YZC connector options, UPC polish
• Crush resistance 1000 N long term / 3000 N short term; 2000 flex cycles
• Insertion loss 0.3 dB or less on LC/SC/ST/FC; return loss 50 dB or better UPC
• Operating and storage temperature -40 to 85 °C

Applications

• Outdoor and harsh-environment fiber cabling
• Base station and remote radio head connections with ODC hardened connectors
• Industrial and surveillance network links
• Data center interconnects exposed to mechanical stress
