MODEL · FT-10M-27

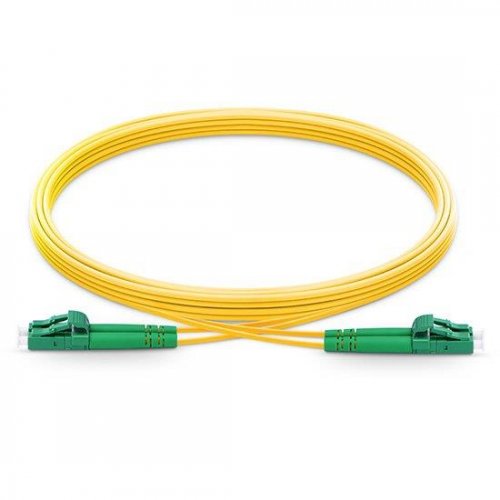

10m Duplex LC APC Bend-Insensitive SMF Patch (CN)
F-tone Networks 10m LC APC duplex 2.0mm PVC(OFNR) bend-insensitive yellow SMF, G.657.A1/A2, RoHS. Contact Betty or Una for pricing and datasheets now.
- Connector-1
- LC APC
- Fiber Mode
- 9/125 m
- Fiber Type
- Duplex
- Jacket Material
- PVC
- Jacket Color
- Yellow
- Cladding Diameter
- 125/1 m
Reference model FT-10M-27 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector-1 | LC APC |
|---|---|
| Fiber Mode | 9/125 m |
| Fiber Type | Duplex |
| Jacket Material | PVC |
| Jacket Color | Yellow |
| Cladding Diameter | 125/1 m |
| Mandrel Radius | 10mm@1550nm/10mm@1625nm |
| Macrobend Loss@1550nm(1Turn) | Induced Attenuation 0.5dB |
| Macrobend Loss@1625nm(1Turn) | Induced Attenuation 1.5dB |
| Operating Temperature | -40 ~ 75C |
| Storage Temperature | -45~85C |
| Fiber Class | 657A1/657A2 |
| RoHS Compliancy Status | Compliant |
| 当需要在角落和狭小空间内布线时，例如在现有建筑物中的 FTTH 安装中、网络正常运行时间至关重要的数据中心中。 例如，OM4 RBS 跳线在被柜门挤压时将继续提供数据服务，而传统 OM4 跳线会丢失服务 | POP、MDU 分配点和用户连接中的 FTTH 布线当需要小半径安装或布线可能会受到偶尔的小半径事件的影响时 |
| Designation | Fiber Dia.( m) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10 Gigabit Ethernet 10GBASE | 40 Gigabet Ethernet 40GBASE-SR4/PLRL4 | 100 Gigabet Ethernet 100GBASE-SR4/IR4 PSM |
| OM3 (Laser Optimized) | 50/125 | Multimode | 2000m | 550m | 550m | 300m | 100m | 100m |
| OM4 (Laser Optimized) | 50/125 | Multimode | 2000m | 550m | 550m | 400m | 150m | 150m |
| Singlemode | 9/125 | Singlemode | 2000m | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | 1km at PLRL4 | 2km at PSM |
Overview
Product details
Chinese-title sibling of the LC APC bend-insensitive duplex. Yellow PVC, 9/125, class 657A1/657A2, mandrel radius 10 mm at 1550/1625 nm, macrobend 0.5/1.5 dB per turn, RoHS compliant, storage -45 C to 85 C. Prose and reach-table keys dropped.
Key Features
- Matching LC APC duplex ends
- 9/125 bend-insensitive SMF, yellow
- 2.0 mm PVC jacket
- Mandrel 10 mm @1550/1625 nm
- RoHS compliant, -40 C to 75 C
Applications
- Tight-bend OS2 LC APC patching
- FTTH corners and dense data-hall runs
Specifications
| Parameter | Value |
|---|---|
| Connector | LC APC |
| Fiber Mode | 9/125 m |
| Fiber Type | Duplex |
| Jacket Material | PVC |
| Jacket Color | Yellow |
| Cladding Diameter | 125/1 m |
| Mandrel Radius | 10mm@1550nm/10mm@1625nm |
| Macrobend Loss@1550nm(1Turn) | Induced Attenuation 0.5dB |
| Macrobend Loss@1625nm(1Turn) | Induced Attenuation 1.5dB |
| Operating Temperature | -40 ~ 75C |
| Storage Temperature | -45~85C |
| Fiber Class | 657A1/657A2 |
| RoHS Compliancy Status | Compliant |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
