1 / 31-Core 50/125 µm Multimode Copper-Braided Flame-Retardant Armored Sensing Cable
F-tone Networks FT-900: 1-core 50/125 µm multimode copper-braided flame-retardant armored sensing cable for 200–250 °C and 6 kV environments with EMI shielding.
- 特征 采用耐高温、耐高压材料对光纤进行保护。 在250℃环境下正常工作，不影响光纤传输。 在6kv高压环境下正常工作，不影响光纤传输。 符合RoHS要求。 默认为黑色外套。
- 应用 电源系统柜与柜之间的连接 高温环境下正常传输
- 包装 1
- 包装 2
- Material Attribute
- Silica Gel
- Teflon Hose
- Kevlar
- Packaging
- Weight
- High KV
- 15
Reference model FT-900 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| 特征 采用耐高温、耐高压材料对光纤进行保护。 在250℃环境下正常工作，不影响光纤传输。 在6kv高压环境下正常工作，不影响光纤传输。 符合RoHS要求。 默认为黑色外套。 | 应用 电源系统柜与柜之间的连接 高温环境下正常传输 |
|---|---|
| 包装 1 | 包装 2 |
| Material Attribute | Silica Gel |
| Teflon Hose | Kevlar |
| Packaging | Weight |
| High KV | 15 |
| 300m/drum | 5Kg |
| High Temperature ℃ | ≥200~250 |
| ≥230~250 | ≥250 |
| 500m/drum | 8Kg |
| Teflon | Kevlar |
| Silica Gel Wall Thickness | Finished Outside Diameter |
| 0.46mm~0.96mm | 8×1580（1.80mm） |
| 0.75mm | 3.30mm |
| 0.96mm~1.46mm | 8×1580（2.40mm） |
| 0.45mm | 3.30mm |
| 特征 它可以防止外部电磁场对内部的侵入，使其光信号传输发生损失。 具有防止静电的功能。 高强度光缆的拉伸和压缩性能。 阻燃性能好 | 应用 用于功率传感器传输，可减少电磁波 对于静电防护对使用环境有要求 应用于户外光纤通讯及光纤传感器 |

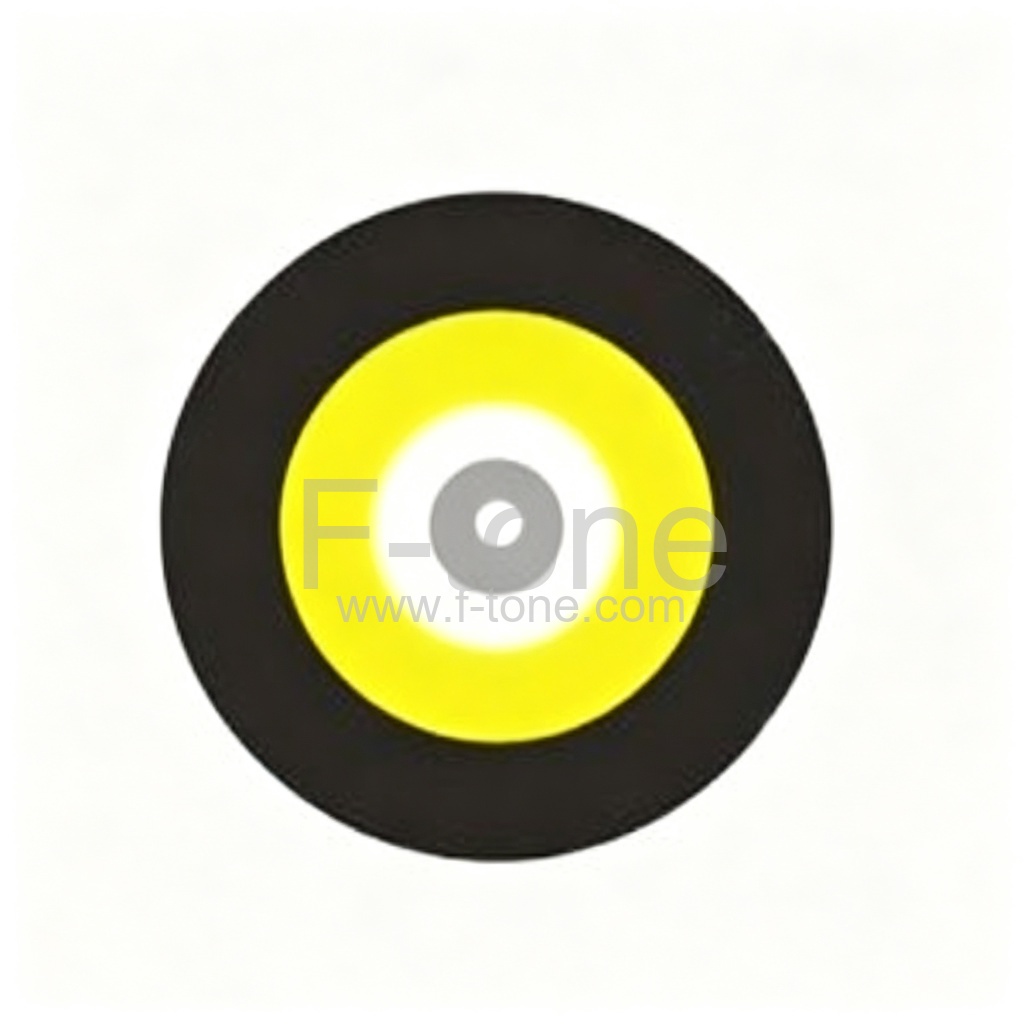

| Type | Thickness |
| Fiber | mm | 0.60±0.05&or0.90±0.05 |
| SpiralMetalArmored | 1.70±0.10 / 0.25 mm |
| 1.70±0.10 | 0.25 |
| Kevlar | mm | 1.80±0.10 |
| MetalBraid | 2.10±0.10 / 0.07 mm |
| 2.10±0.10 | 0.07 |
| Jacket | 3.50±0.10 / 0.7 mm |
| 3.50±0.10 | 0.7 |
| OuterWovenLayer | 3.80±0.10 / 0.15 mm |
| 3.80±0.10 | 0.15 |
| Weight | kg/km | 25 |
| MM 50 | MM 62.5 |
| Core Diameter(µm) | 9.2±0.4 |
| 50±2.5 | 62.5±2.5 |
| Cladding Diameter (µm) | 124.8±0.7 |
| 124.8±0.1 | 124.8±0.1 |
| Cladding Non-circularity(%) | ≤0.7 |
| ≤1.0 | ≤1.0 |
| Core-cladding Concentricity Error (µm) | ≤0.5 |
| ≤1.5 | ≤1.5 |
| Coating Diameter(µm) | 245±5 |
| 245±7 | 245±7 |
| Coarting-cladding Concentricity Error (µm) | ≤12.0 |
| ≤12.0 | ≤12.0 |
| Zero Dispersion Wavelength(nm) | 1302-1322 |
| 1295-1320 | 1320-1365 |
| Zero Dispersion Slop [ps/(nm2.km)] | ≤0.090 |
| ≤0.101 | ≤0.097 |
| Ngroup Index Of Refraction | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm |
| 1.467 | 1.4677 |
| 1.481 | 1.476 |
| 1.496 | 1.491 |
| Singlemode | Multimode |
| Fiber core/Modal Diameter | µm | 9.2±0.4 | 50.0±2.5 | 62.5±2.5 |
| Cladding Diameter | µm | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 |
| Attenuation | dB/km | 0.4dB/km@1310nm | 3.5dB/km@850nm | 3.5dB/km@850nm |
| 0.3dB/km@1550nm | 1.5dB/km@1300nm | 1.5dB/km@1300nm |
| Temperature | ℃ | -20℃~+90℃ |
| Cable shape | mm | 3.8 ±0.10 |
| Cable weight | Kg/km | 25 |
| Allowable Bending Radius | mm | Dynamic 20D Static 10D |
| Allow Tension | N | Long-term 200 Short-term 400 |
| Crush | N | Long-term 3000 Short-term 5000 |
| 特征 双铠装护套确保良好的机械性能。 微小的直径和样品结构提供了良好的导热性。 外护套符合 UL、RoHS 和 IP9 标准。 灵活且有弹性，易于部署。 | 应用 高速公路隧道、地下隧道火灾探测 电源线隧道、电源线层间温度检测 工厂、大厅、粮仓等消防监控 煤炭、石化管道等安全检测 |
| Fiber Core/Modal Diameter | 9.2±0.4 / 50.0±2.5 / 62.5±2.5 µm |
| 50.0±2.5 | 62.5±2.5 |
| 125.0±1.0 | 125.0±1.0 |
| 3.5dB/km@850nm | 3.5dB/km@850nm |
| 1.5dB/km@1300nm | 1.5dB/km@1300nm |
| Outer Diameter | mm | 2.85±0.10 |
| Cable Weight | Kg/km | 18 |
| Coefficient Of Heat Conductivity | W/(m·k) | 1 |
Product details

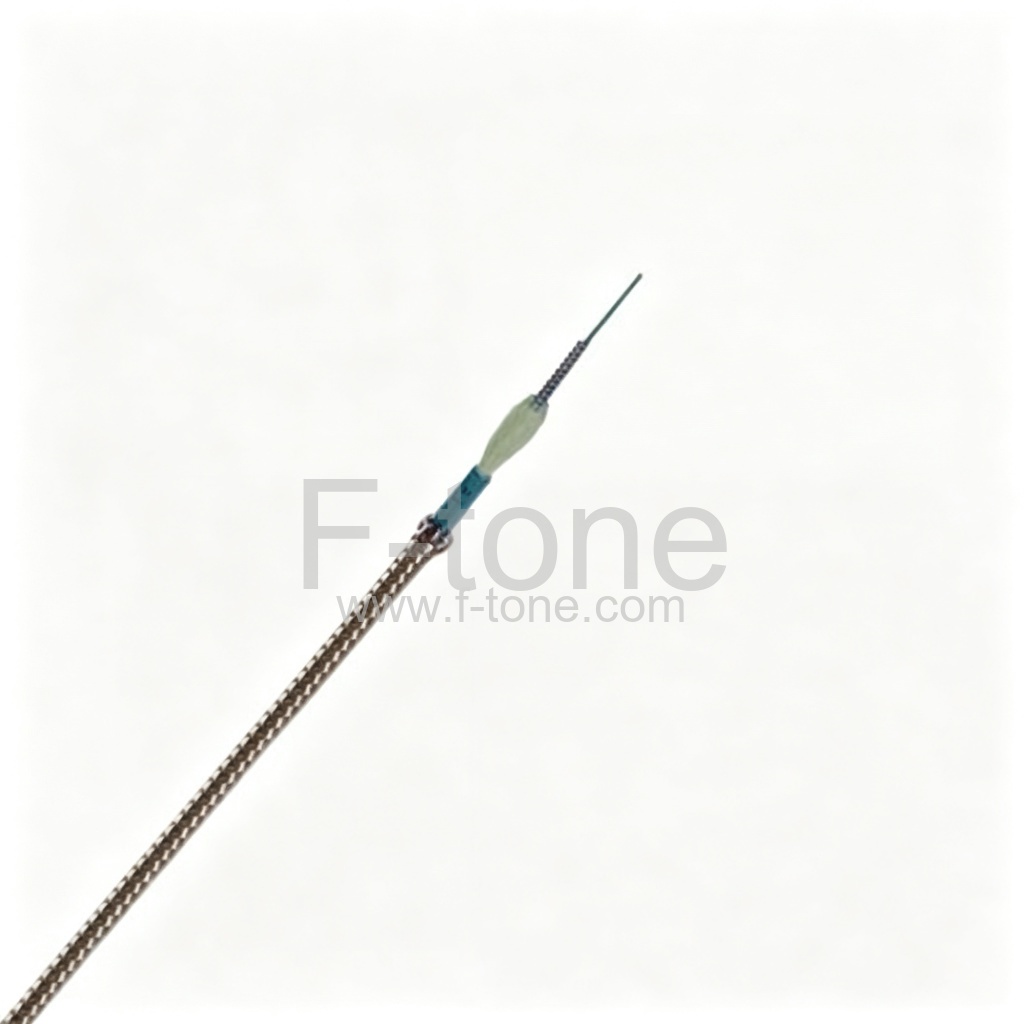

The FT-900 from F-tone Networks is a 1-core 50/125 µm multimode sensing cable with copper braid and flame-retardant armoring for hostile service environments. It keeps operating at 200 °C to 250 °C and under 6 kV high voltage without affecting optical transmission, and the outer jacket meets RoHS requirements with a default black finish. The copper-braided layer blocks external electromagnetic fields from intruding on the fiber, gives the cable anti-static protection and adds high tensile and compression strength along with good flame retardance. Cable outer diameter is 3.8 mm at 25 kg/km, with a dynamic bend radius of 20D and static 10D. Long-term tension is 200 N (short-term 400 N) and crush resistance is 3000 N long-term, 5000 N short-term.
Key Features
- 1-core 50/125 µm multimode fiber in copper-braided flame-retardant armored construction
- Operates at 200 °C to 250 °C and under 6 kV high voltage
- Copper braid blocks external electromagnetic interference; anti-static protection
- High tensile and compression strength with good flame retardance
- Outer diameter 3.8 mm; cable weight 25 kg/km; RoHS compliant jacket
- Long-term tension 200 N / crush 3000 N; short-term 400 N / 5000 N
Applications
- Power system cabinet-to-cabinet connections
- High-temperature environment transmission
- Power sensor signal transmission with EMI immunity
- Outdoor fiber communication and fiber sensor networks
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
