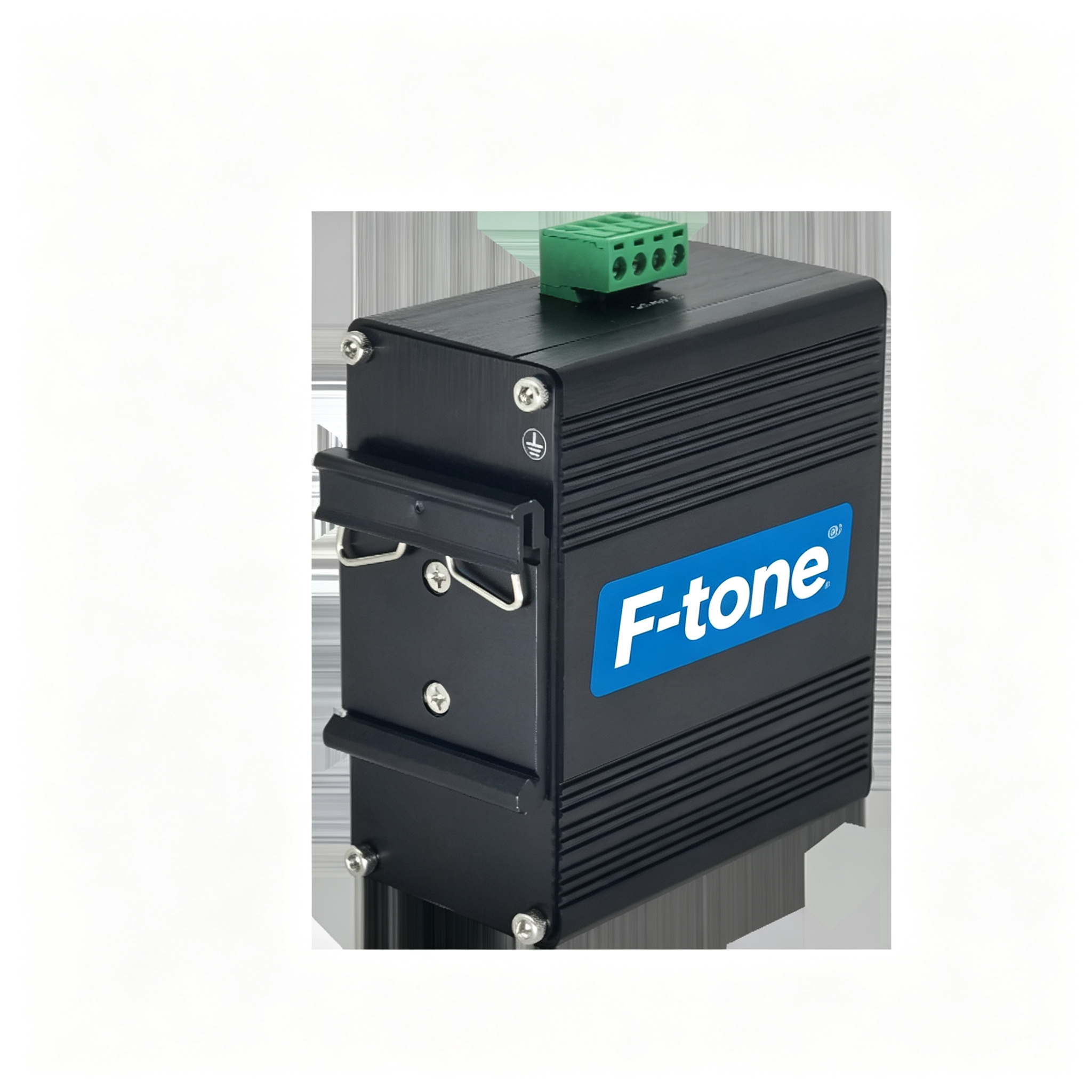

1 / 2MODEL · FT-901
10-Port Industrial Gigabit Switch Family (FT9000)
F-tone Networks FT9000-class industrial gigabit switch family with up to 10x RJ45, 20Gbps backplane, DIN/wall mount, -40 to 85C. Ask Betty or Una for SKUs.
- 端口
- 环境
- 光口：/
- 工作温度：-40°C ~ 85°C
- 网口：10×10/100/1000Base-T/RJ45
- 相对湿度：5 % ~ 95%（无凝露）
- 调试口：/
- 检测认证
- 电源口：5.08mm/4位接线端子
- 公安部检测：GB/T 15211-2013、GB/T 17626.5-2019、GB/T4208-2017、企业标准
- IEEE802.3 IEEE802.3u IEEE802.3z
- 交通部检测：YD/T 1099-2013、JT/T 817-2011、GB/T21671-2008
Reference model FT-901 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| 端口 | 环境 |
|---|---|
| 光口：/ | 工作温度：-40°C ~ 85°C |
| 网口：10×10/100/1000Base-T/RJ45 | 相对湿度：5 % ~ 95%（无凝露） |
| 调试口：/ | 检测认证 |
| 电源口：5.08mm/4位接线端子 | 公安部检测：GB/T 15211-2013、GB/T 17626.5-2019、GB/T4208-2017、企业标准 |
| IEEE802.3 IEEE802.3u IEEE802.3z | 交通部检测：YD/T 1099-2013、JT/T 817-2011、GB/T21671-2008 |
| IEEE802.3ah IEEE802.1X IEEE802.1Q | 浪涌：6KV；执行标准：IEC61000-4-5 |
| IEEE802.3 10BASE-T,IEEE802.3u 100BASE-TX/FX | 静电防护：接触放电8KV，空气放电15KV |
| IEEE802.3ab 1000BASE-T,IEEE802.3z 1000BASE-X | 机械结构 |
| 交换性能 | 尺寸：93mm×86mm×46mm |
| 背板总带宽：20Gbps | 安装：轨道/墙面 |
| FT9000-082H-D | 工业级8×10/100/1000Base-T (输入12~48VDC) |
| FT9000-082TH-D | 工业级8×10/100/1000Base-T （PoE+）(输入48V~56VDC) |
| FT9000-0102H-D | 工业级10×10/100/1000Base-T (输入12~48VDC) |
| FT9000-282H-D | 工业级8×10/100/1000Base-T + 2x1000Base-X SFP(输入12~48VDC) |
| FT9000-242H-D | 工业级4×10/100/1000Base-T + 2x1000Base-X SFP(输入12~48VDC) |
Overview
Product details
Industrial gigabit copper switches in the FT9000 family land up to ten 10/100/1000Base-T ports with a 20 Gbps backplane. DIN-rail or wall mount, ambient down to -40 C, and optional PoE+ bins. Surge and ESD figures follow the listed GB/IEC references.
Key Features
- Up to 10x GE RJ45 ports
- 20 Gbps backplane class
- DIN-rail or wall mount
- Ambient down to -40 C class
- Optional PoE+ and SFP bins
Applications
- Industrial Ethernet edge switching
- DIN-rail gigabit copper closets
Specifications
| Parameter | Value |
|---|---|
| Copper Ports | 10x 10/100/1000Base-T RJ45 (family) |
| Backplane Bandwidth | 20 Gbps |
| Power Terminal | 5.08 mm 4-position |
| Operating Temperature | -40 C to 85 C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 93 x 86 x 46 mm (listed body) |
| Mounting | DIN-rail / wall |
| Surge | 6 kV (IEC 61000-4-5) |
| ESD | Contact 8 kV / Air 15 kV |
Ordering References
Model and part numbers for ordering reference:
| Reference | Description |
|---|---|
| FT9000-082H-D | Industrial 8x GE 12-48VDC |
| FT9000-082TH-D | Industrial 8x GE PoE+ 48-56VDC |
| FT9000-0102H-D | Industrial 10x GE 12-48VDC |
| FT9000-282H-D | Industrial 8x GE + 2x SFP |
| FT9000-242H-D | Industrial 4x GE + 2x SFP |
| FT9000-082H-D | 工业级8×10/100/1000Base-T (输入12~48VDC) |
| FT9000-082TH-D | 工业级8×10/100/1000Base-T （PoE+）(输入48V~56VDC) |
| FT9000-0102H-D | 工业级10×10/100/1000Base-T (输入12~48VDC) |
| FT9000-282H-D | 工业级8×10/100/1000Base-T + 2x1000Base-X SFP(输入12~48VDC) |
| FT9000-242H-D | 工业级4×10/100/1000Base-T + 2x1000Base-X SFP(输入12~48VDC) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
Related products
View all Industrial & Enterprise Switches →More in Industrial & Enterprise Switches
FT-3882
11-Slot 2RU Packet-Optical Transport Platform
View details →

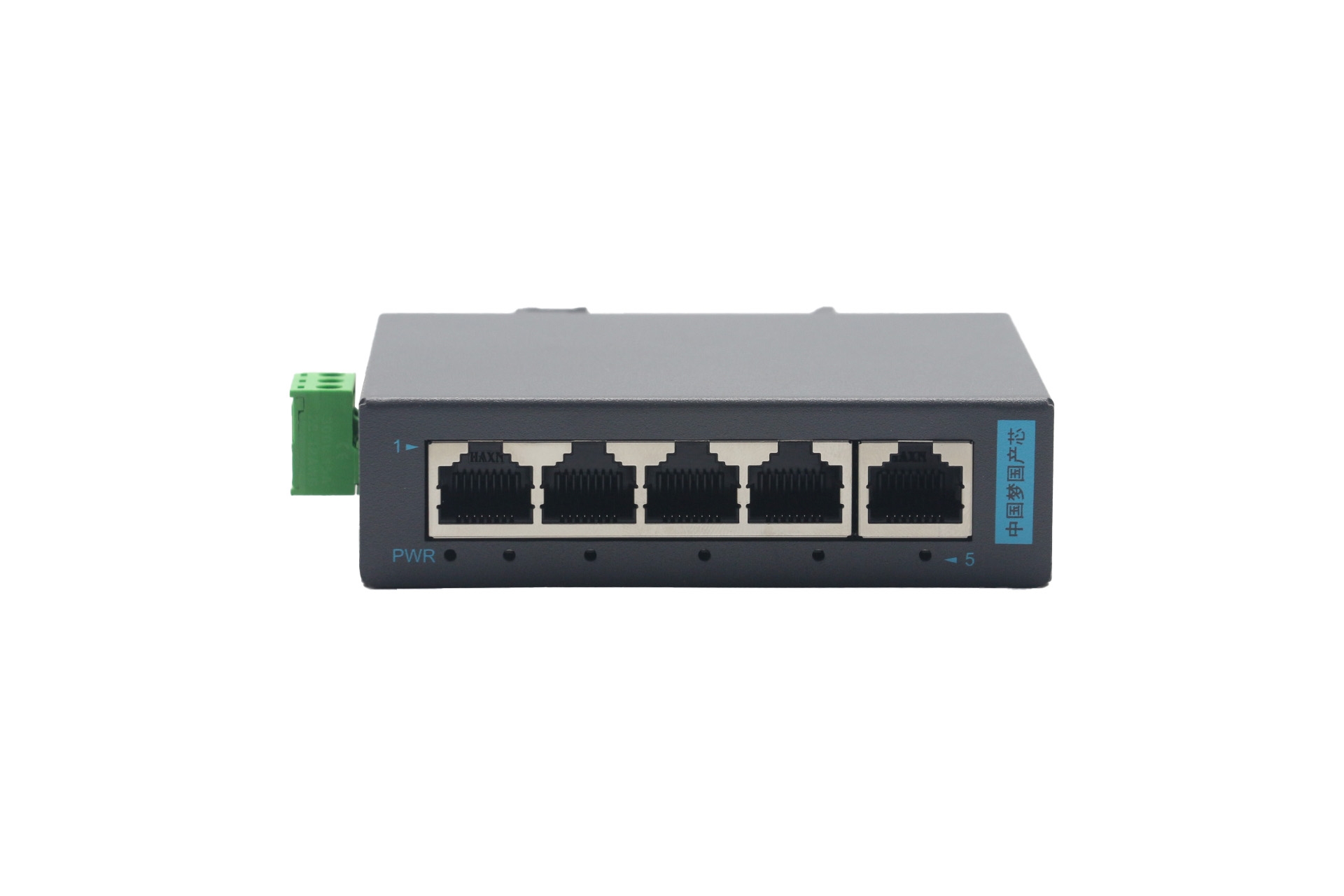

FT308GPS-2G
