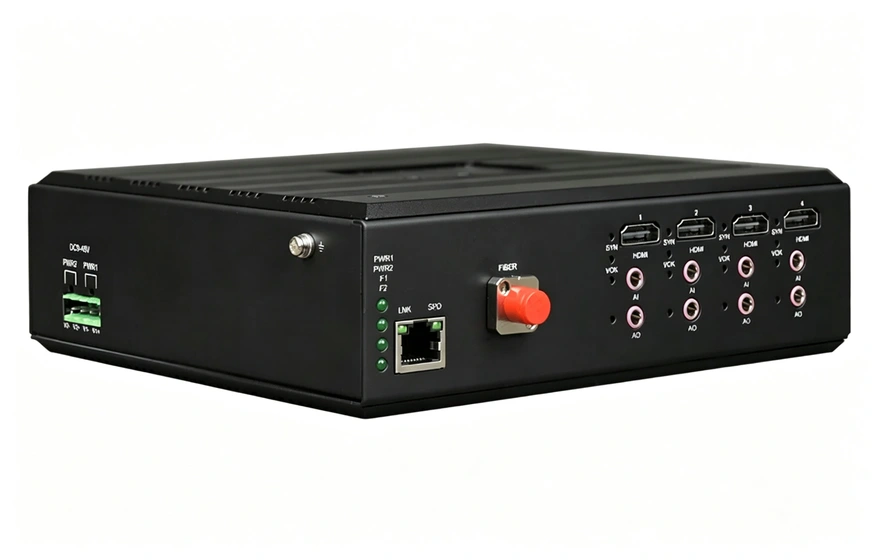

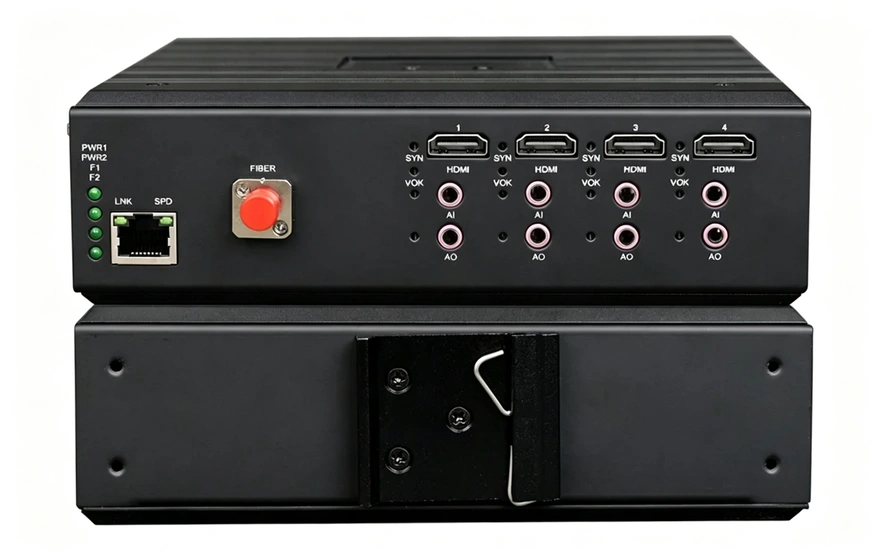

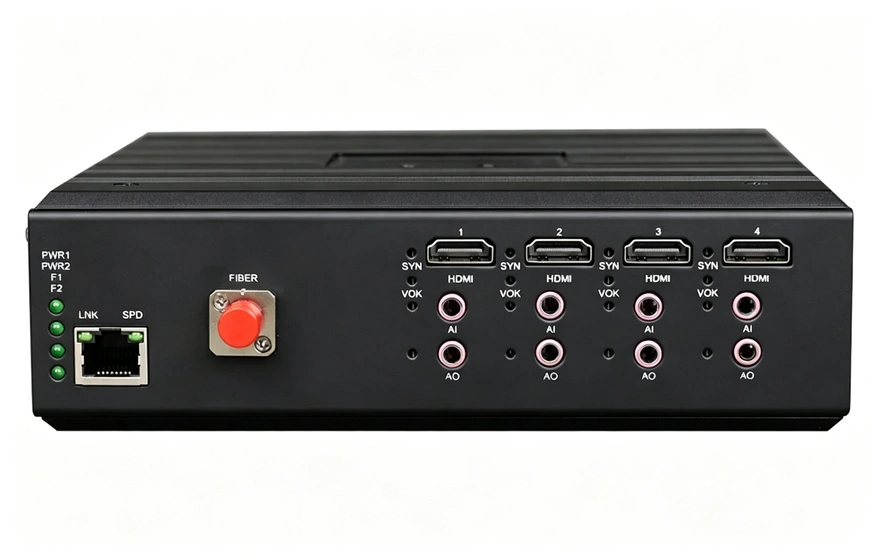

4-Channel 2K HDMI Video & Audio Fiber Converter with Gigabit Ethernet and USB

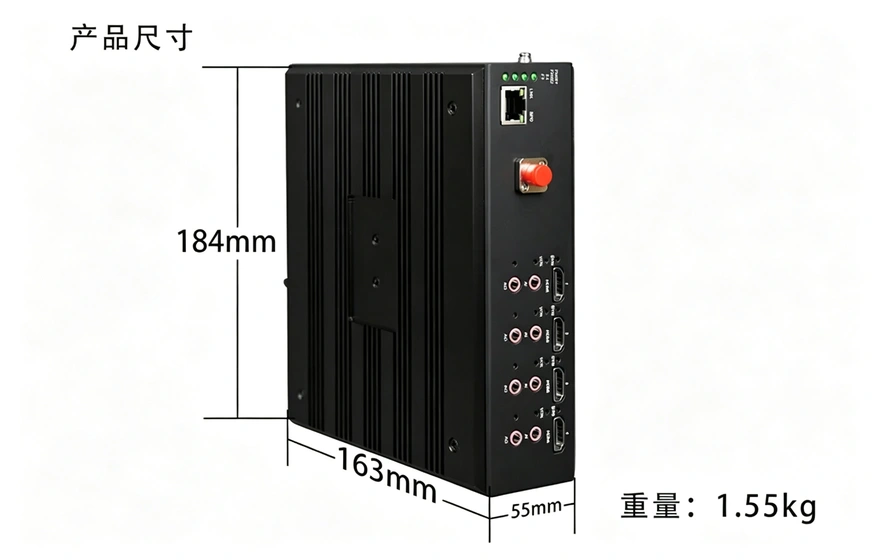

The FTVH-H4G1U1 from F-tone Networks carries four independent 2K HDMI signals, one Gigabit Ethernet channel and one USB 1.1 channel over a single fiber, consolidating video, data and control transport in one chassis. It complies with the HDMI 1.2 standard and supports resolutions from 1280x720p50 up to 1920x1080p60, including interlaced 1080i60 and 1080i50. Color space coverage spans RGB, YCbCr 4:4:4 / 4:2:2 and YUV 4:2:0. Redundant dual power input accepts DC 9 to 48 V or AC 9 to 48 V, with overload, reverse-polarity and redundancy protection on a 4-pin 5.08 mm terminal block. The unit measures 133 x 120 x 40 mm and weighs 1.25 kg.

Key Features

• Four independent 2K HDMI channels transmitted over a single fiber interface
• HDMI 1.2 compliant; supports 1920x1080p60/p50/p30/p25/p24, 1080i60/i50 and 1280x720p60/p50
• One Gigabit Ethernet port and one USB 1.1 port carried over the same fiber
• Color space support: RGB, YCbCr 4:4:4 / 4:2:2 and YUV 4:2:0
• Redundant dual power input DC 9-48 V / AC 9-48 V with overload, reverse-polarity and redundancy protection
• Compact chassis: 133 x 120 x 40 mm, 1.25 kg

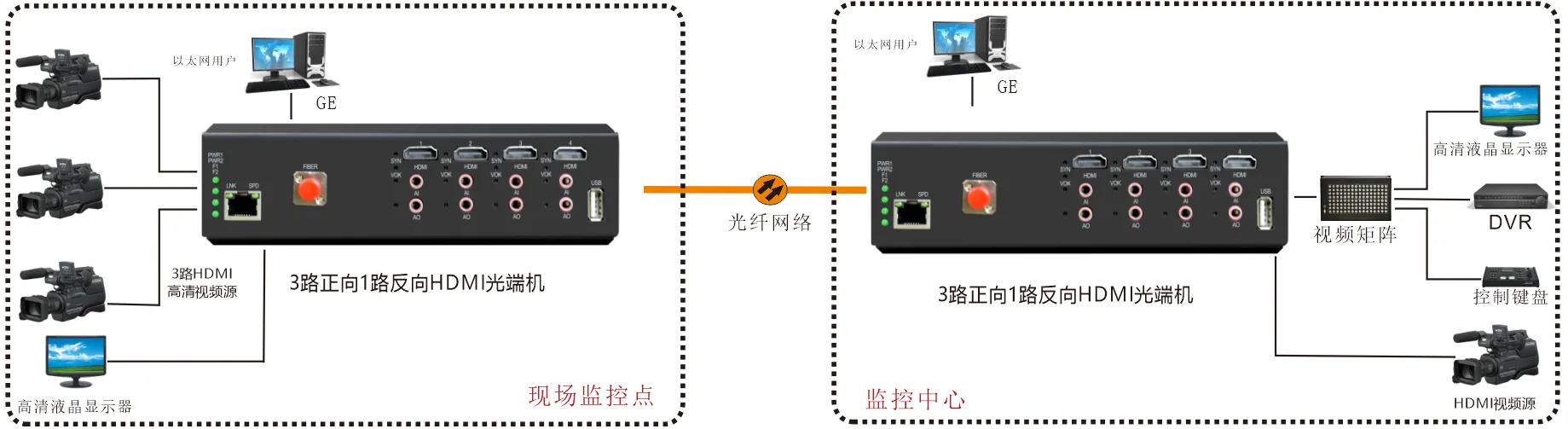

Applications

• Security surveillance and long-reach video transmission
• Broadcast and studio video distribution systems
• Traffic monitoring and intelligent transportation networks
• Conference and command center video walls
