10G Media Converter RJ45 to SFP+ Fiber Transceiver

Overview

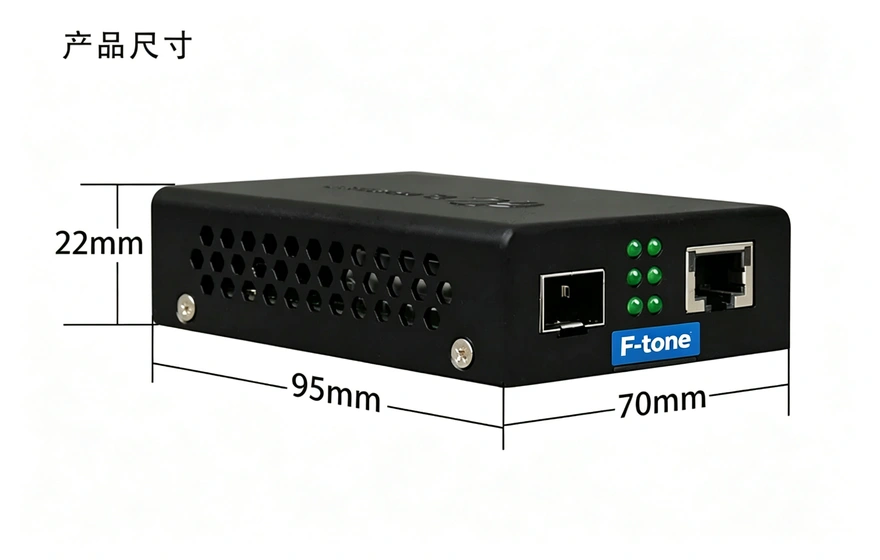

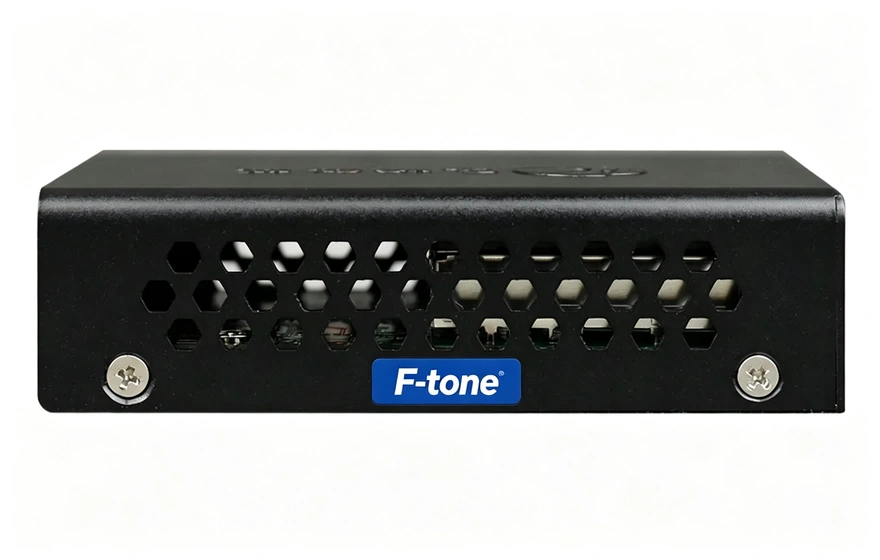

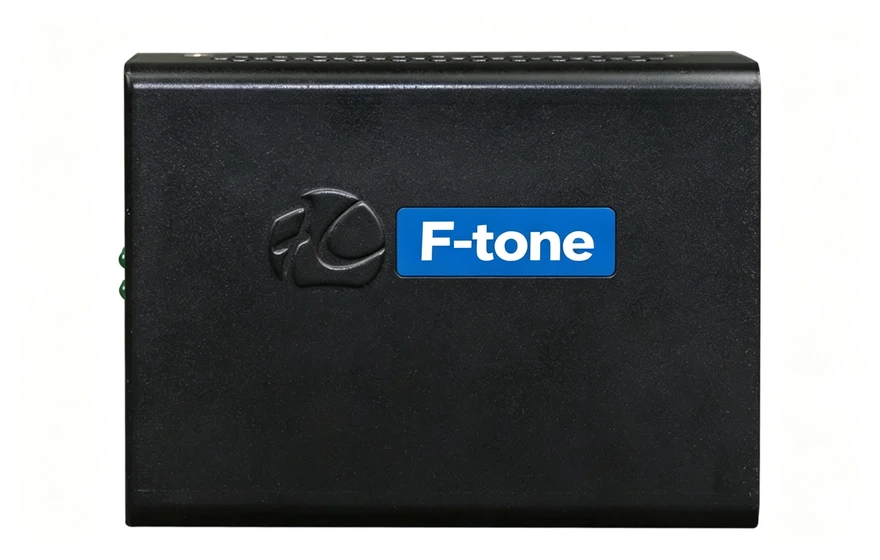

The FTM-10G is a standalone 10G media converter that bridges a 10GBase-T copper port and a 10G SFP+ fiber port. The RJ45 side auto-negotiates 100/1000Base-T and 2.5/5/10GBase-T over up to 100 m of Cat6e cable, while the SFP+ cage accepts standard 10G modules covering 300 m multimode links to 80 km single-mode spans. Four LEDs report copper link, speed, fiber link and power at a glance. The pocket-sized chassis (91 x 59 x 20.5 mm) runs on an external DC 12 V adapter at 0.75 to 3 W, and it is rated from -20 to +60 degrees C for wiring closets and industrial cabinets.

Key Features

• 1x 10G SFP+ optical port plus 1x RJ45 10G electrical port
• Copper side auto-negotiates 100/1000Base-T and 2.5/5/10GBase-T up to 100 m (Cat6e or higher)
• Fiber side supports 10G SFP+ modules from 300 m multimode to 80 km single-mode

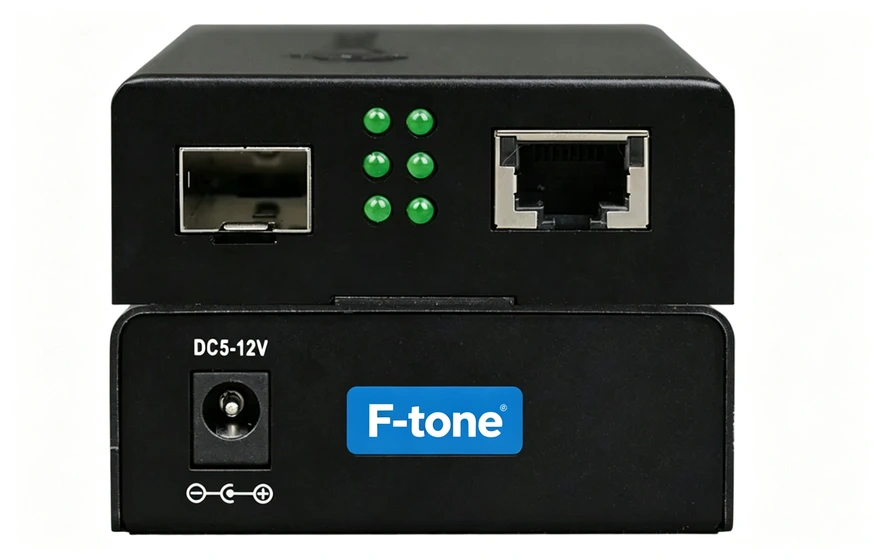

• LED indicators: TP/LINK, SPD, FX/LNK, PWR
• DC 12 V input (1 A), 0.75 to 3 W operating power; 91 x 59 x 20.5 mm desktop chassis
• Operating temperature -20 to +60 C; storage -20 to +70 C; 5 to 90% non-condensing humidity

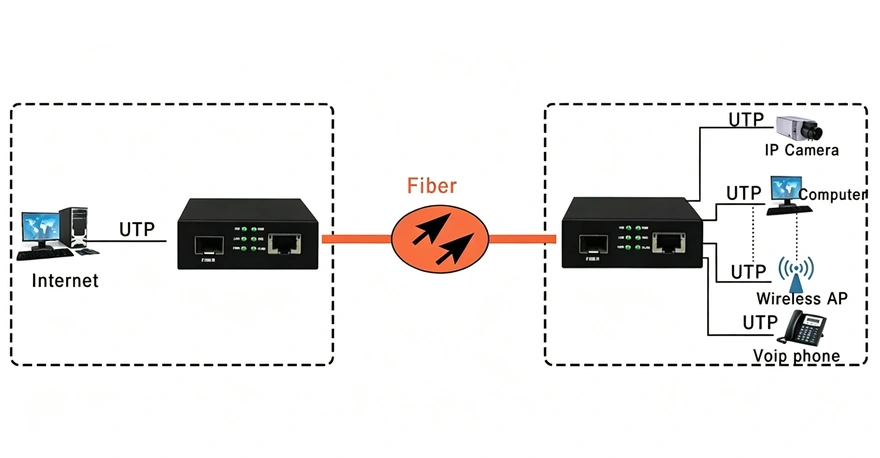

Applications

• Extending 10G beyond the 100 m copper limit
• Connecting copper-based switches to fiber backbones
• Surveillance and industrial Ethernet edge links
• Fiber-to-desk setups in labs and small offices

Specifications
