32-Ch Digital Input / 16 Serial + 4x 100M Ethernet Fiber Multiplexer, 19-inch Rack

Overview

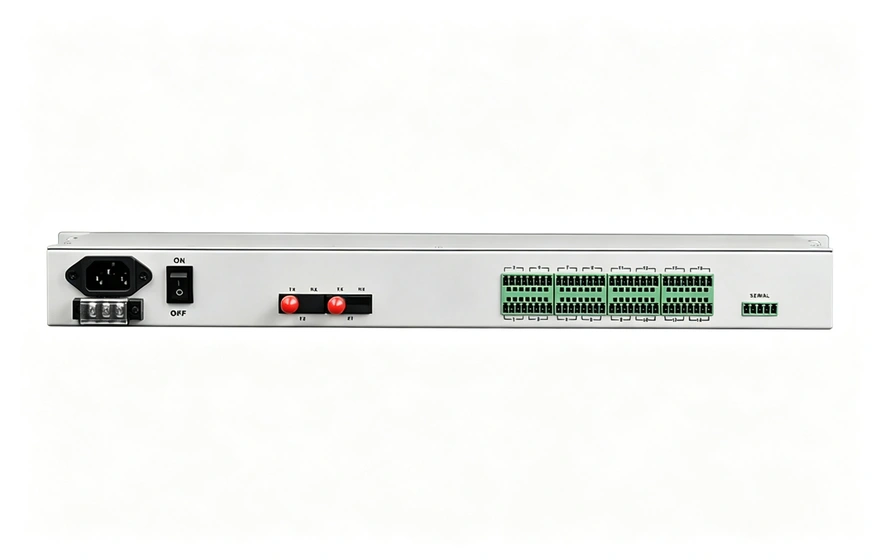

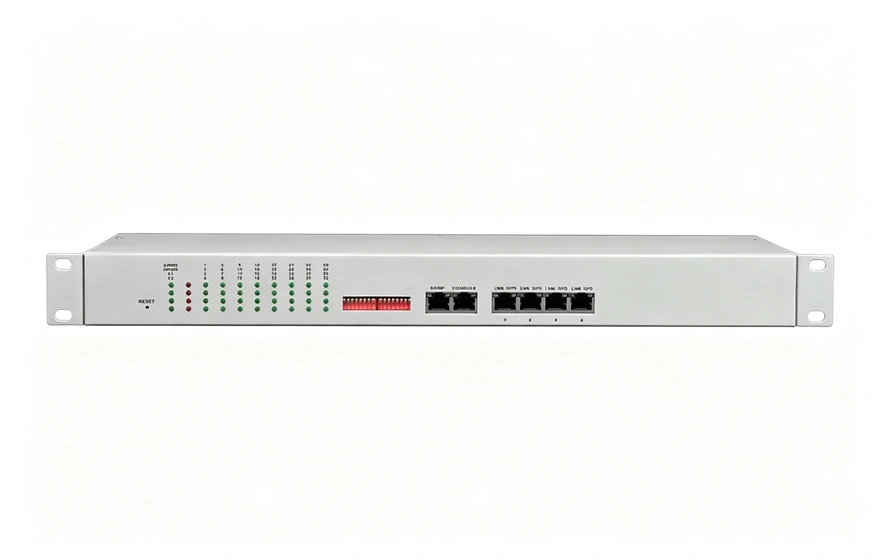

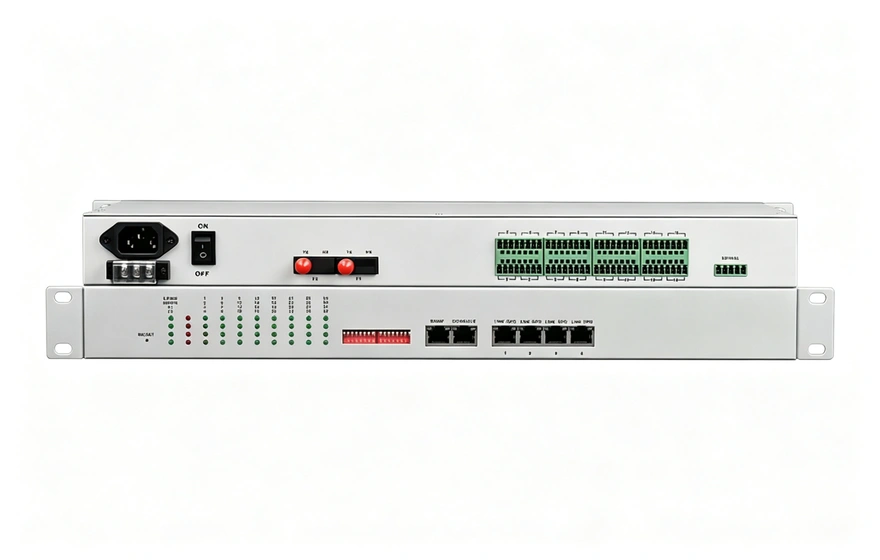

The FT-1313 is a 19-inch rack-mount fiber multiplexer that carries digital-input, serial and Ethernet traffic together over optical fiber. It supports 1 to 32 channels of unidirectional digital input (or 16 bidirectional), 1 to 16 serial ports, and 4 channels of 100M Ethernet. Dual 1x9 optical ports give 1+1 fiber backup, and power options are AC220V or DC-48V with redundant backup.

Fiber transmission removes the electromagnetic interference, ground-loop interference and lightning exposure of copper wiring, improving the reliability, safety and confidentiality of the carried traffic. The chassis measures 485 x 200 x 45 mm and weighs 3 kg per unit.

Key Features

• 1–32 unidirectional or 16 bidirectional digital-input channels over fiber
• 1–16 serial ports plus 4 channels of 100M Ethernet on the same fiber link
• 1+1 optical fiber backup via dual 1x9 optical ports
• AC220V or DC-48V power supply, optional; redundant power backup supported

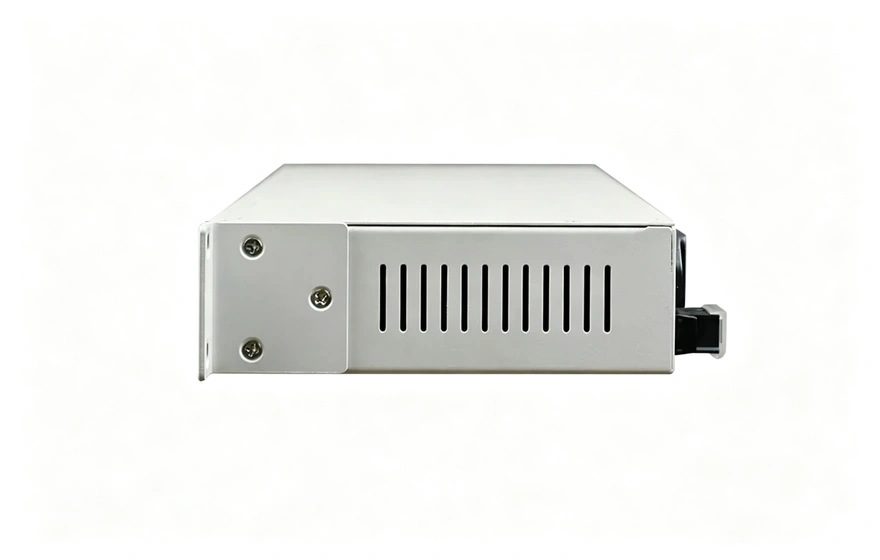

• 19-inch rack-mount chassis, 485 x 200 x 45 mm, 3 kg
• Immune to EMI, ground-loop and lightning damage on the fiber path

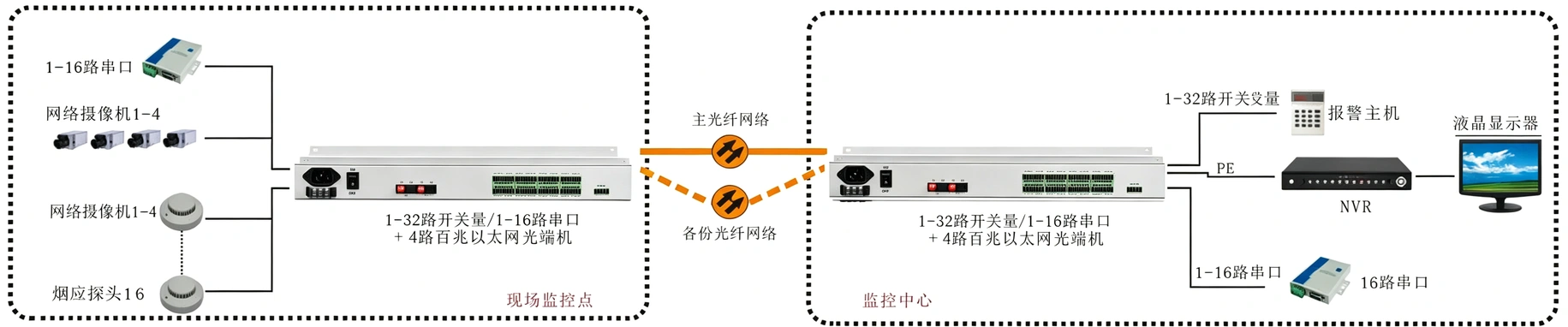

Applications

• Industrial control with mixed I/O and serial devices
• Process control and telemetry networks
• Traffic control with Ethernet and signal integration
• Power and banking systems in EMI-sensitive environments

Specifications
