1 / 6MODEL · FT-100G-10M-OM4

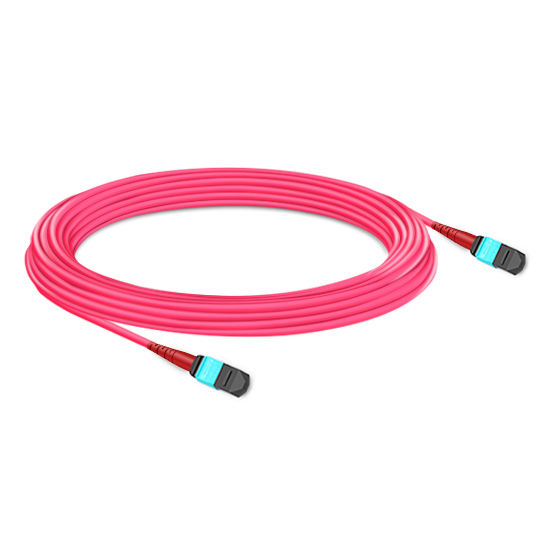

10m 24F Elite MTP Female Trunk, Polarity A, OFNP OM4
F-tone Networks 10m (33ft) 24-fiber Elite MTP female trunk, polarity A, plenum OFNP, OM4 50/125 multimode for 100GBASE-SR10, aqua/violet, ClearCurve glass.
- Connector A
- MTP Female (US Conec)
- Connector B
- MTP Female (US Conec)
- Fiber Type
- OM4 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- 24 Fibers
- Distance
- 10m (33ft)
Reference model FT-100G-10M-OM4 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MTP Female (US Conec) |
|---|---|
| Connector B | MTP Female (US Conec) |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 24 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 全会 (OFNP) |
| 抛光型 | UPC to UPC |
| Min. Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | ≤2.3 dB/km |
| 1300nm 处的衰减 | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua/Violet |
| 安装拉伸载荷 | 66 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Polarity-A Elite MTP females carry twenty-four OM4 multimode fibers across 10m (33ft) of plenum OFNP in aqua/violet. Built on Corning ClearCurve with UPC polish, the trunk targets 100GBASE-SR10 style paths. Listed optics: 0.35 dB max IL (0.15 dB typ.), RL >=20 dB, 7.5 mm bend, 3.0 mm diameter.
Key Features
- MTP female Elite (US Conec) both ends
- 24 fibers, OM4 50/125
- Polarity A, UPC polish
- OFNP plenum, aqua/violet
- IL 0.35 dB max, for 100GBASE-SR10 paths
Applications
- 100GBASE-SR10 trunking between modules
- High-count OM4 backbone in plenum spaces
Specifications
| Parameter | Value |
|---|---|
| Connector A | MTP Female (US Conec) |
| Connector B | MTP Female (US Conec) |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 24 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | OFNP |
| Polish Type | UPC to UPC |
| Min. Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km |
| Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua/Violet |
| Installation Tensile Load | 66 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
