1 / 6MODEL · FT-100964

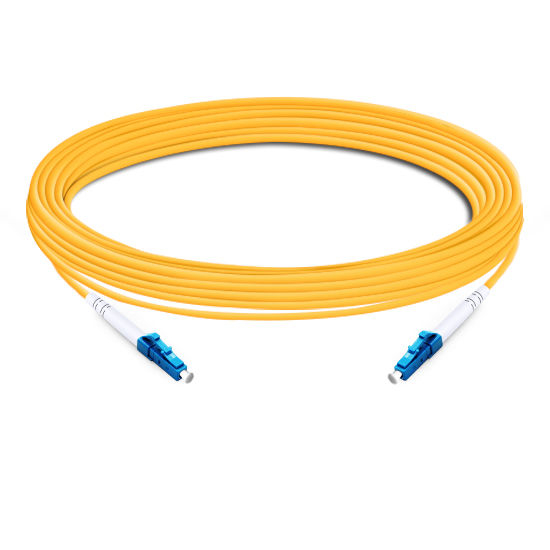

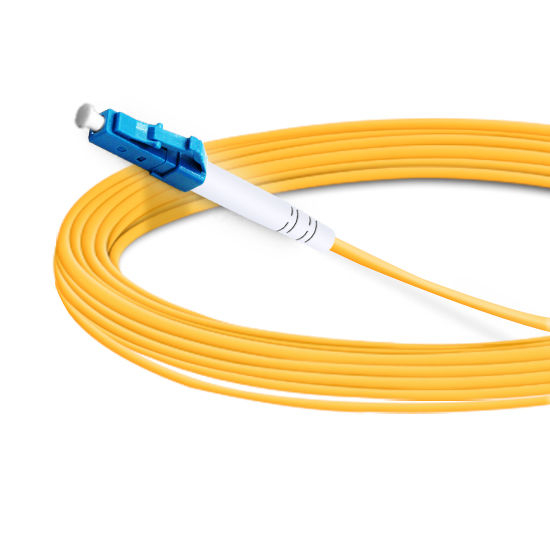

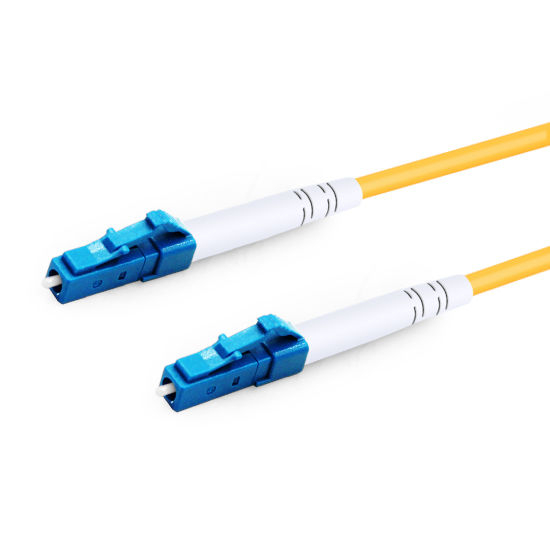

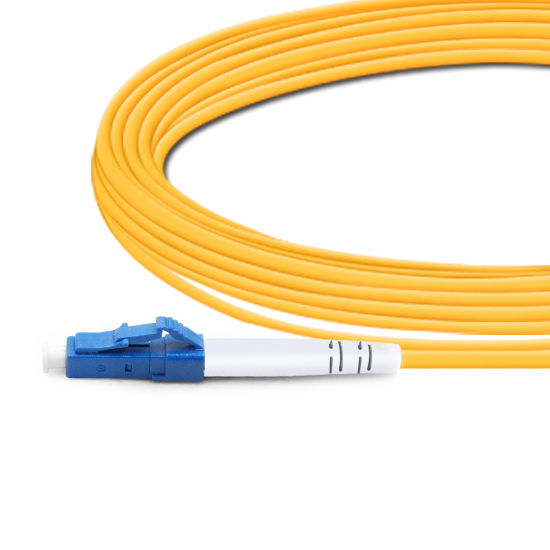

10m Simplex OS2 LC UPC Patch Cable, LSZH 2.0mm
F-tone Networks 10m (33ft) LC UPC simplex OS2 2.0mm LSZH patch, ClearCurve G.657.A1, IL<=0.3dB, RL>=50dB. Contact Betty or Una for pricing. In stock paths vary.
- Connector A
- LC UPC
- Connector B
- LC UPC
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm (CWDM DWDM)
- Fiber Count
- Simplex
- Distance
- 10m (33ft)
Reference model FT-100964 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | LC UPC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Simplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36 dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25 dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Connector Type | LC UPC to LC UPC |
| Armoured | No |
| Insert Loss | 0.25dB |
| Approximate Diameter | 2.0mm |
| Min. Bend Radius (Fiber Cable) Dynamic | 10mm |
Overview
Product details
Simplex OS2 with matched LC UPC tips under yellow LSZH ClearCurve. Ten metres (33ft), 2.0 mm, G.657.A1. Insertion within 0.3 dB, return from 50 dB, bend floor 10 mm, 1310/1550 nm attenuation as listed.
Key Features
- Matching LC UPC simplex ends
- OS2 9/125 single-mode, G.657.A1
- LSZH yellow jacket, 2.0 mm
- ClearCurve glass
- IL <=0.3 dB / RL >=50 dB over 10m (33ft)
Applications
- LSZH OS2 LC-to-LC simplex patching
- CWDM/DWDM and long-haul patch fields
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | LC UPC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Simplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36 dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25 dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Connector Type | LC UPC to LC UPC |
| Armoured | No |
| Approximate Diameter | 2.0mm |
| Min. Bend Radius (Fiber Cable) Dynamic | 10mm |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
Compatibility
Compatible platforms
