1 / 6MODEL · FT-10M-OS2-BRK

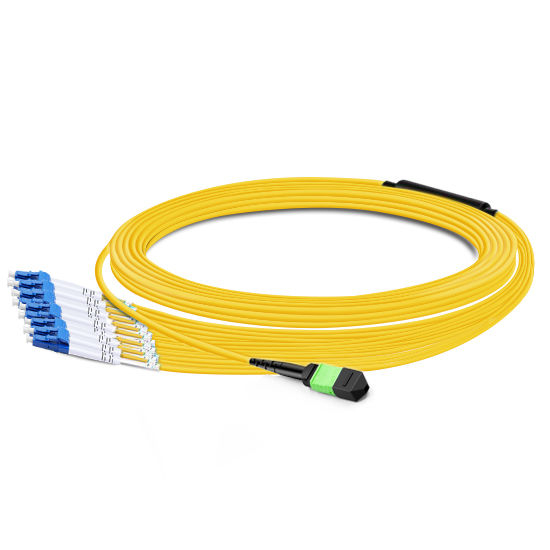

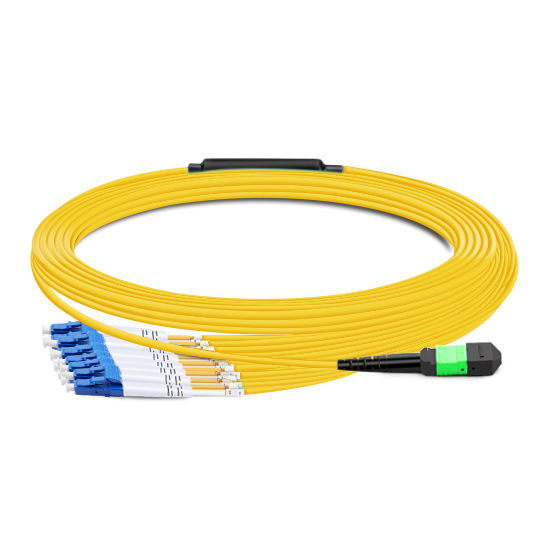

10m MTP APC to Six LC Duplex Breakout, OS2 LSZH
F-tone Networks 10m (33ft) US Conec MTP APC into six LC duplex OS2 Elite breakout, 12F Type B LSZH yellow, ClearCurve. Ask Betty or Una for a quote. Now.
- Connector A

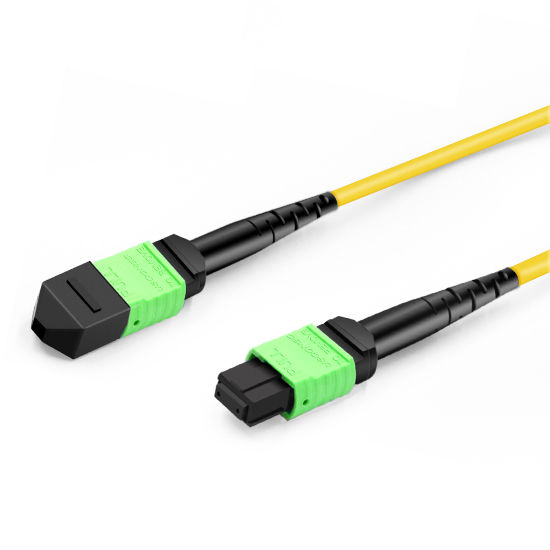

- MTP APC Female (US Conec)
- Connector B

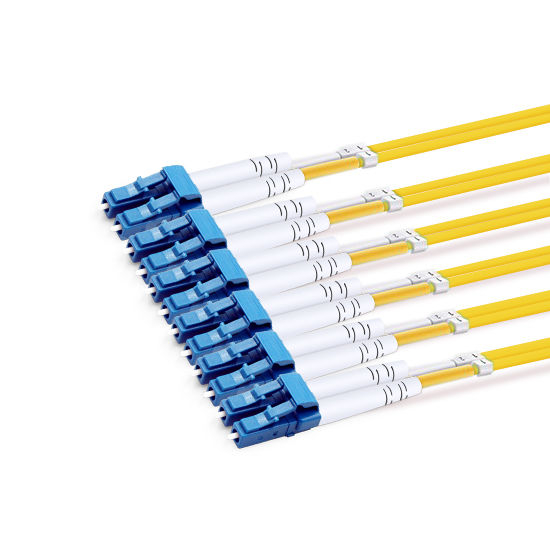

- LC UPC Duplex
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm
- Fiber Count
- 12 Fibers
- Distance
- 10m (33ft)
Reference model FT-10M-OS2-BRK in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MTP APC Female (US Conec) |
|---|---|
| Connector B | LC UPC Duplex |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥60dB |
| LC Connector RL | ≥50dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| 扇出直径 | 2.0mm |
| Min. Bend Radius | 10mm |
| 安装拉伸载荷 | 100 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Twelve OS2 fibers leave a US Conec MTP APC female as six LC UPC duplex legs. Type B Elite, LSZH yellow, ClearCurve, 10m (33ft). Install tension 100 N, long-term 50 N.
Key Features
- US Conec MTP APC into six LC duplexes
- Twelve OS2 9/125 strands
- Type B Elite, LSZH yellow
- MTP 0.35 dB max / LC <=0.2 dB
- 10m (33ft) ClearCurve build
Applications
- OS2 MTP landing on six LC duplexes
- Twelve-fiber single-mode Elite fan-out
Specifications
| Parameter | Value |
|---|---|
| Connector A | MTP APC Female (US Conec) |
| Connector B | LC UPC Duplex |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥60dB |
| LC Connector RL | ≥50dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |

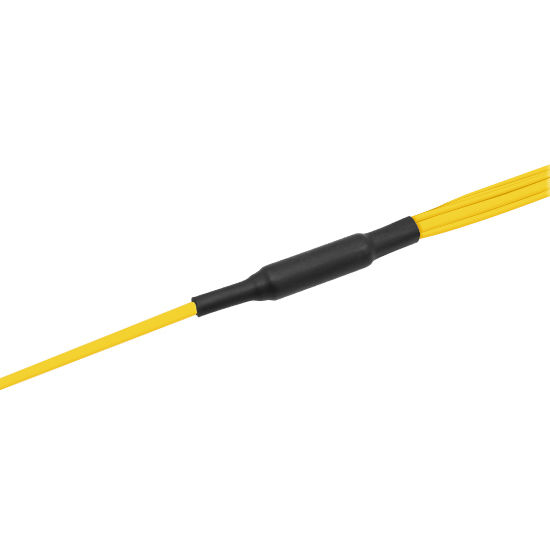

| Breakout Diameter | 2.0mm |
| Min. Bend Radius | 10mm |
| Installation Tensile Load | 100 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
