1 / 4MODEL · FT-10M-OS2-BRK-2

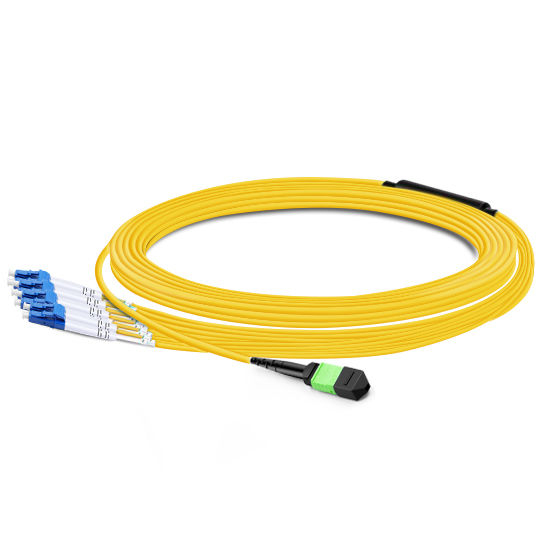

10m MTP APC to Four LC Duplex Breakout, OS2
F-tone Networks 10m (33ft) US Conec MTP APC into four LC duplex OS2 Elite breakout, 8F Type B LSZH yellow, ClearCurve. Ask Betty or Una for a quote. Now.
- Connector A
- MTP APC Female (US Conec)
- Connector B
- LC UPC Duplex
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm
- Fiber Count
- 8 Fibers
- Distance
- 10m (33ft)
Reference model FT-10M-OS2-BRK-2 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MTP APC Female (US Conec) |
|---|---|
| Connector B | LC UPC Duplex |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 8 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥60dB |
| LC Connector RL | ≥50dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| 扇出直径 | 2.0mm |
| Min. Bend Radius | 10mm |
| 安装拉伸载荷 | 100 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
US Conec MTP APC female fans eight OS2 fibers into four LC UPC duplexes. Type B Elite, LSZH yellow, ClearCurve, 10m (33ft). MTP insertion 0.35 dB max, LC within 0.2 dB, bend 10 mm.
Key Features
- US Conec MTP APC into four LC duplexes
- Eight OS2 9/125 strands
- Type B Elite, LSZH yellow
- MTP 0.35 dB max / LC <=0.2 dB
- 10m (33ft) ClearCurve build
Applications
- OS2 MTP cassette landing on LC fields
- Eight-fiber single-mode Elite fan-out
Specifications
| Parameter | Value |
|---|---|
| Connector A | MTP APC Female (US Conec) |
| Connector B | LC UPC Duplex |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 8 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥60dB |
| LC Connector RL | ≥50dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| Breakout Diameter | 2.0mm |
| Min. Bend Radius | 10mm |
| Installation Tensile Load | 100 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
