1 / 610m 12F Low-IL MPO Female Trunk, Polarity B, LSZH OS2

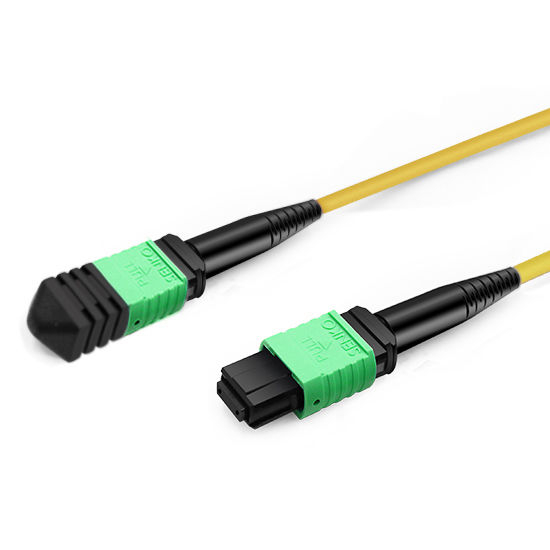

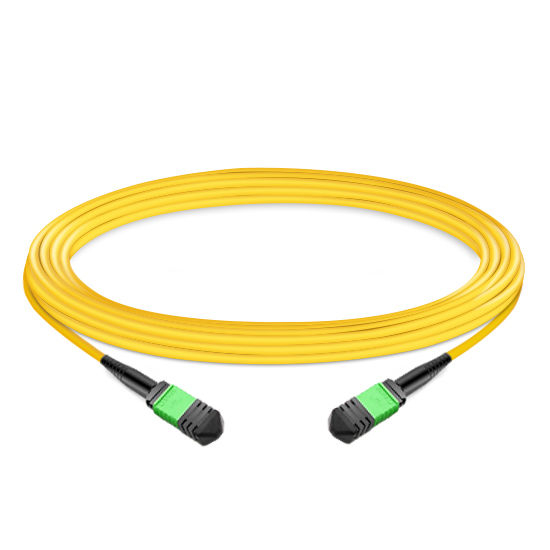

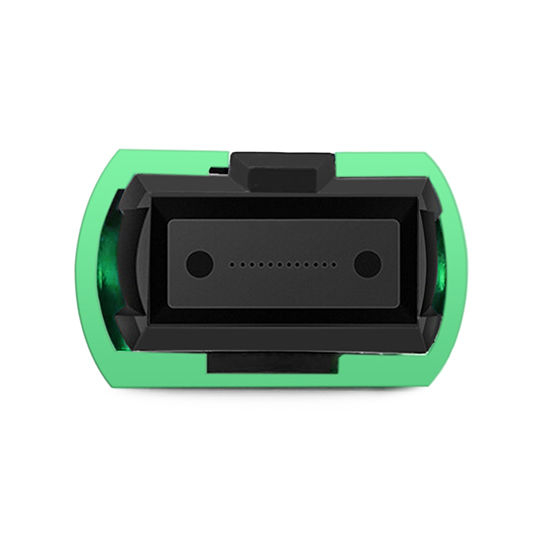

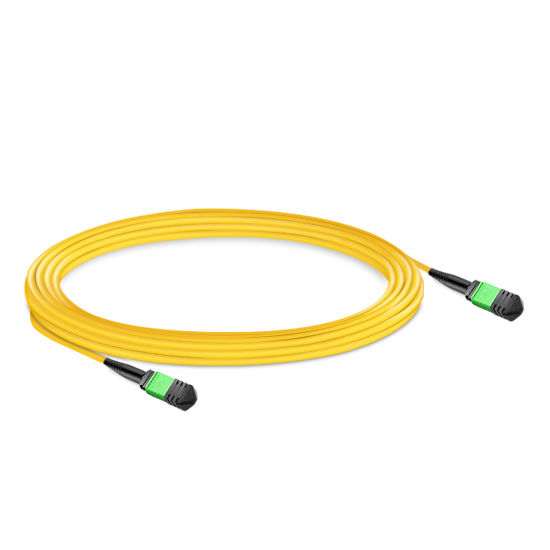

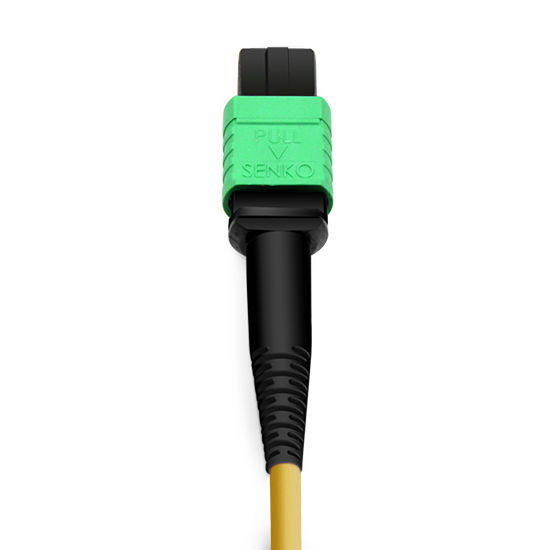

F-tone Networks 10m (33ft) 12-fiber low insertion loss MPO female trunk, polarity B, LSZH, OS2 9/125 single-mode, APC polish, yellow jacket, ClearCurve glass.
- Connector A
- MPO Female
- Connector B
- MPO Female
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm
- Fiber Count
- 12 Fibers
- Distance
- 10m (33ft)
Reference model FT-10M-OS2-2 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| Connector A | MPO Female |
|---|---|
| Connector B | MPO Female |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| 抛光型 | APC to APC |
| Min. Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| 安装拉伸载荷 | 100 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Product details
Single-mode twelve-fiber MPO trunk aimed at low loss: female ends, polarity B, APC finish, yellow LSZH jacket, 10m (33ft). Corning ClearCurve OS2 glass sits in a 3.0 mm cable with a 10 mm bend minimum. Budget figures include 0.35 dB max insertion loss (0.15 dB typ.) and return loss of 60 dB or higher.
Key Features
- MPO female to MPO female
- 12 fibers, OS2 9/125 single-mode
- Polarity B, APC polish
- LSZH jacket, yellow
- IL 0.35 dB max, RL >=60 dB
Applications
- Single-mode MPO backbone between distribution frames
- Long-wavelength links inside a data hall
Specifications
| Parameter | Value |
|---|---|
| Connector A | MPO Female |
| Connector B | MPO Female |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Polish Type | APC to APC |
| Min. Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| Installation Tensile Load | 100 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
