1 / 6MODEL · FT-10M-OM4
10m 16F MPO Female Trunk, Polarity B, LSZH OM4 APC

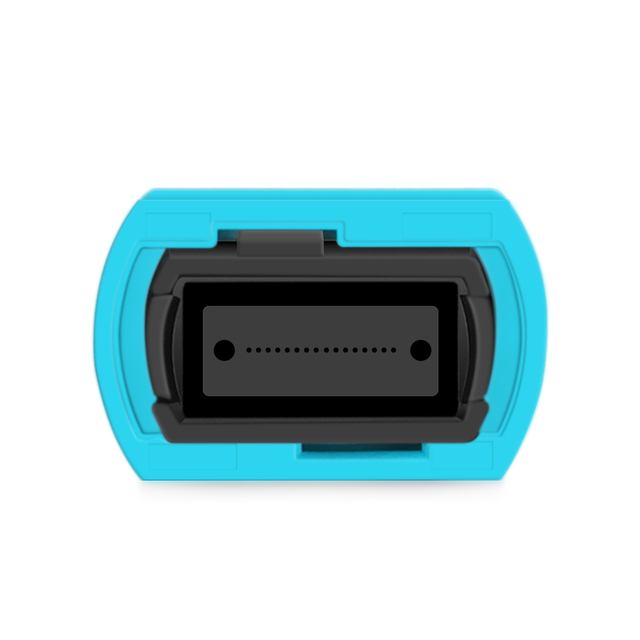

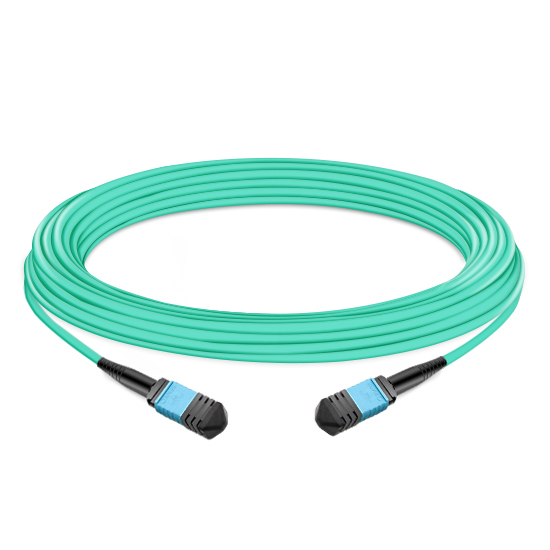

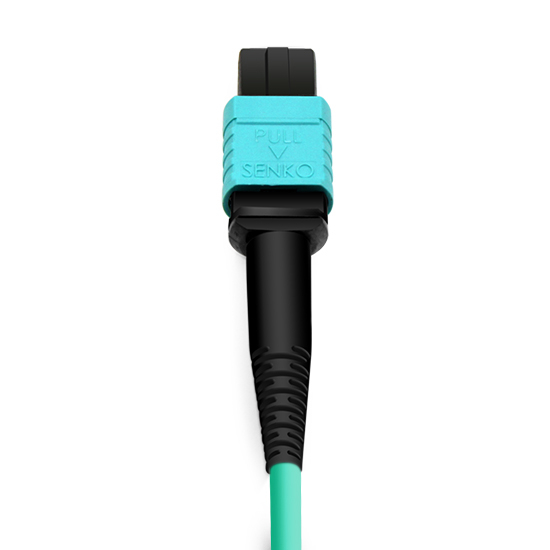

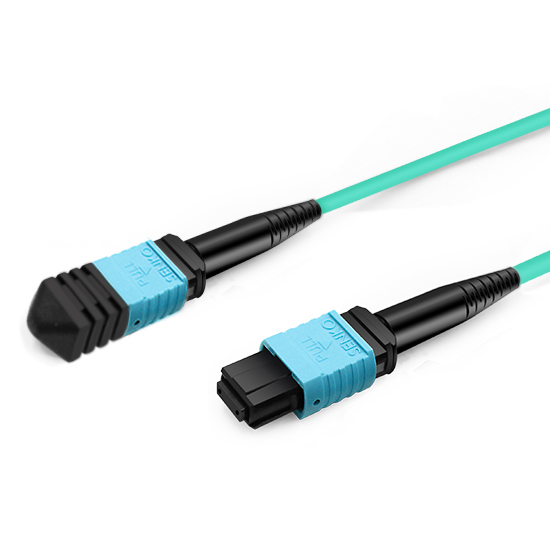

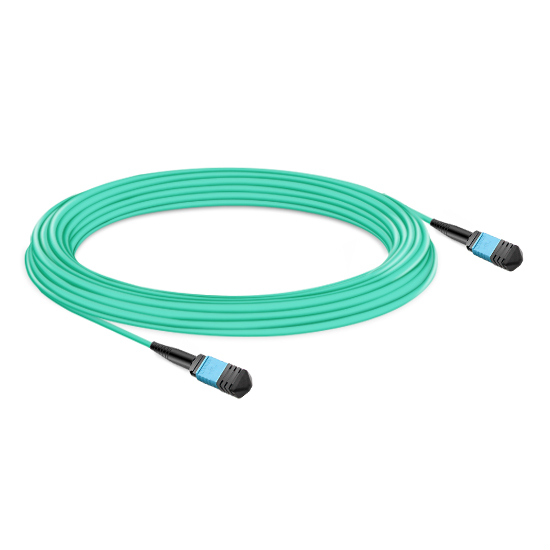

F-tone Networks 10m (33ft) 16-fiber MPO female-to-female trunk, polarity B (Type B), LSZH, OM4 50/125 multimode, APC polish, aqua, Corning ClearCurve.
- Connector A
- MPO Female
- Connector B
- MPO Female
- Fiber Type
- OM4 50/125μm Multimode
- Wavelength
- 850nm
- Fiber Count
- 16 Fibers
- Distance
- 10m (33ft)
Reference model FT-10M-OM4 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MPO Female |
|---|---|
| Connector B | MPO Female |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850nm |
| Fiber Count | 16 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| 抛光型 | APC to APC |
| Min. Bend Radius | 7.5mm |
| Insertion Loss | 0.75dB Max (0.35dB Typ.) |
| Return Loss | ≥60dB |
| 850nm 处的衰减 | ≤2.3 dB/km |
| Polarity | Type B |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua |
| 安装拉伸载荷 | 66 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Sixteen OM4 fibers between female MPO connectors follow Type B polarity with APC polish under LSZH aqua. Span is 10m (33ft) on Corning ClearCurve glass. Insertion loss tops out at 0.75 dB (0.35 dB typical), return loss stays at 60 dB or above, and the 3.0 mm cord bends to 7.5 mm.
Key Features
- MPO female both ends
- 16 fibers, OM4 50/125 multimode
- Type B polarity, APC polish
- LSZH aqua jacket
- IL 0.75 dB max (0.35 dB typ.)
Applications
- 16-fiber parallel optics trunks
- High-density OM4 cassette interconnects
Specifications
| Parameter | Value |
|---|---|
| Connector A | MPO Female |
| Connector B | MPO Female |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850nm |
| Fiber Count | 16 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Polish Type | APC to APC |
| Min. Bend Radius | 7.5mm |
| Insertion Loss | 0.75dB Max (0.35dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 850nm | ≤2.3 dB/km |
| Polarity | Type B |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua |
| Installation Tensile Load | 66 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
