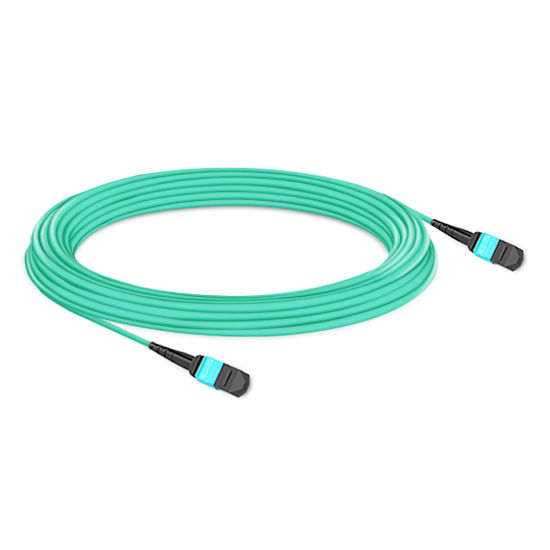

1 / 610m 12F Elite MTP Female Trunk, Polarity B, OFNP OM3
F-tone Networks 10m (33ft) 12-fiber Elite MTP female-to-female trunk, polarity B, plenum OFNP, OM3 50/125 multimode, Corning ClearCurve, aqua. Ask us.
- Connector A
- MTP Female (US Conec)
- Connector B
- MTP Female (US Conec)
- Fiber Type
- OM3 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- 12 Fibers
- Distance
- 10m (33ft)
Reference model FT-10M-OM3 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| Connector A | MTP Female (US Conec) |
|---|---|
| Connector B | MTP Female (US Conec) |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| 抛光型 | UPC to UPC |
| Min. Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | ≤2.3 dB/km |
| 1300nm 处的衰减 | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua |
| 安装拉伸载荷 | 66 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Product details
Elite-grade MTP females bookend twelve OM3 multimode fibers in polarity B over a 10m (33ft) plenum run. US Conec connectors, Corning ClearCurve glass, aqua OFNP jacket and a 3.0 mm diameter define the build. Optical sheet lists 0.15 dB typical / 0.35 dB max insertion loss, return loss of 20 dB or better, and a 7.5 mm bend floor.
Key Features

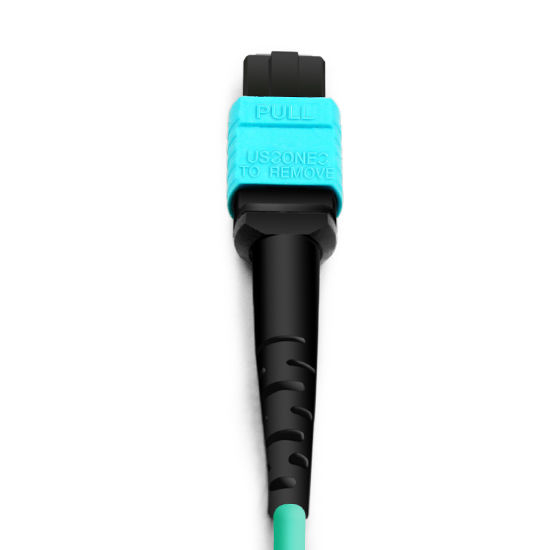

- MTP female to MTP female, Elite grade (US Conec)
- 12 fibers, OM3 50/125 multimode
- Polarity B, UPC polish
- Plenum OFNP jacket, aqua
- IL 0.35 dB max (0.15 dB typ.), RL >=20 dB
Applications
- OM3 parallel optics trunks between cassettes
- Data center spine-leaf multimode plants
Specifications
| Parameter | Value |
|---|---|
| Connector A | MTP Female (US Conec) |
| Connector B | MTP Female (US Conec) |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Polish Type | UPC to UPC |
| Min. Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km |
| Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua |
| Installation Tensile Load | 66 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
