1 / 6MODEL · FT-100G-LR-OS2

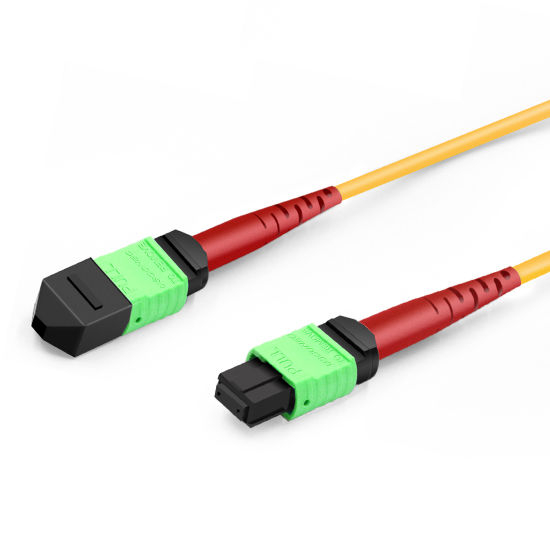

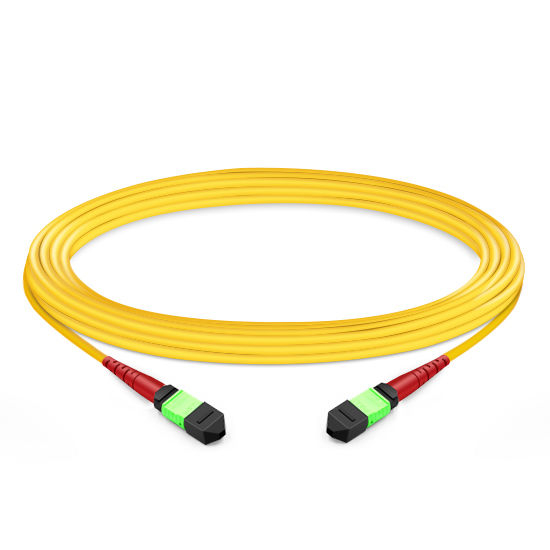

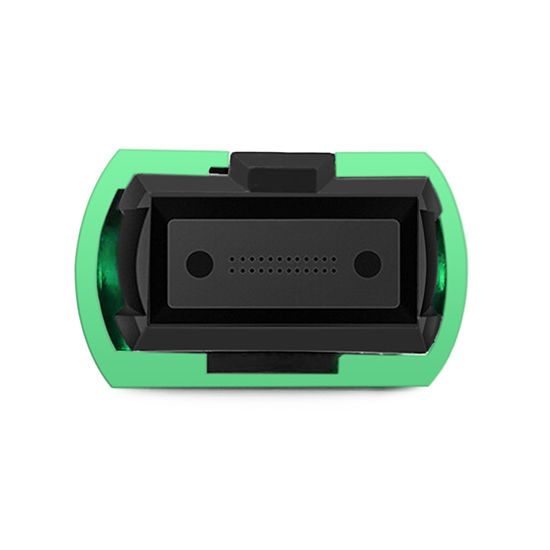

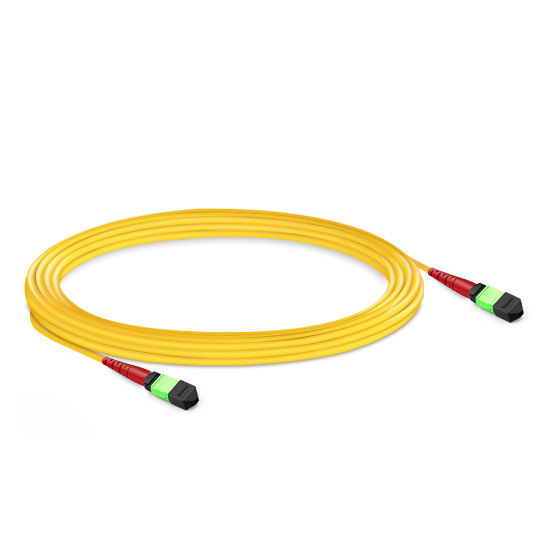

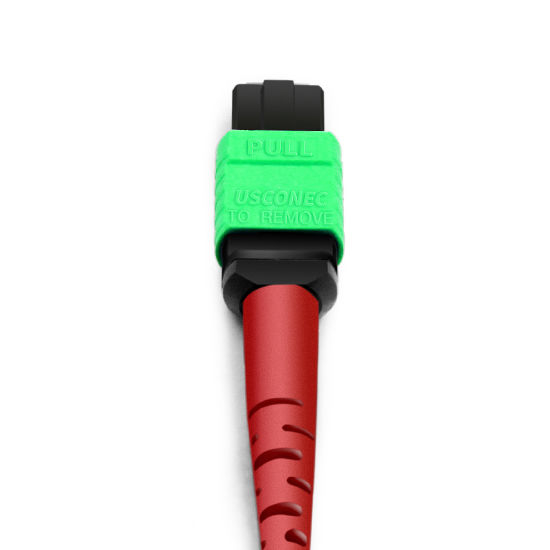

10m 24F Elite MTP Female Trunk, Polarity A, OFNP OS2
F-tone Networks 10m (33ft) 24-fiber Elite MTP female trunk, polarity A, plenum OFNP, OS2 9/125 single-mode for 100G CPAK LR paths, yellow, APC polish.
- Connector A
- MTP Female (US Conec)
- Connector B
- MTP Female (US Conec)
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm
- Fiber Count
- 24 Fibers
- Distance
- 10m (33ft)
Reference model FT-100G-LR-OS2 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MTP Female (US Conec) |
|---|---|
| Connector B | MTP Female (US Conec) |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 24 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 全会 (OFNP) |
| 抛光型 | APC to APC |
| Min. Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| 安装拉伸载荷 | 100 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Twenty-four OS2 single-mode fibers in a polarity-A Elite MTP female trunk, APC polished, yellow plenum OFNP, 10m (33ft). Aimed at 100G CPAK LR style connectivity. Optics cite 0.35 dB max IL, RL >=60 dB, attenuation caps of 0.32 and 0.18 dB/km at 1310 and 1550 nm, plus a 10 mm bend radius.
Key Features
- MTP female Elite both ends
- 24 fibers, OS2 9/125 single-mode
- Polarity A, APC polish
- OFNP plenum, yellow
- IL 0.35 dB max, RL >=60 dB
Applications
- 100G CPAK LR single-mode trunking
- High-count OS2 backbone in plenum spaces
Specifications
| Parameter | Value |
|---|---|
| Connector A | MTP Female (US Conec) |
| Connector B | MTP Female (US Conec) |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 24 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | OFNP |
| Polish Type | APC to APC |
| Min. Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| Installation Tensile Load | 100 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
