1.25G BIDI 1x9 ST Single-Mode Optical Transceiver, 60–100km

Overview

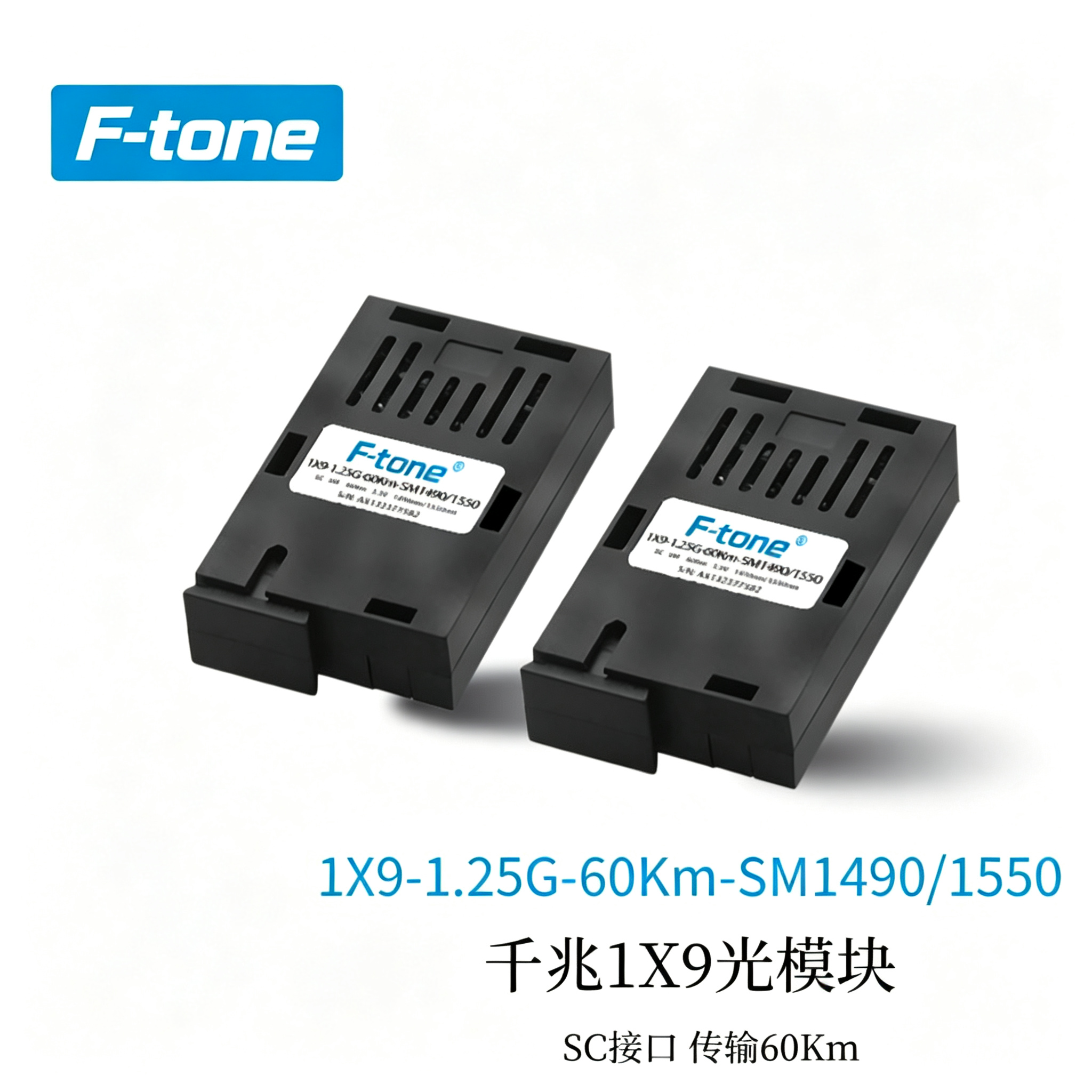

The FT-1-25G-BIDI-6 is a 1.25 Gbps bidirectional (BIDI) optical transceiver in a compact 1x9 package, built for long-haul single-mode fiber links between 60 and 100 km. It uses a single fiber strand with paired wavelength combinations — 1310/1550 nm or 1490/1550 nm depending on reach — so one module transmits while its paired module receives. The ST connector interface suits legacy and industrial installations where ST panels are already in place. Powered from a 3.3 V rail with an LVPECL signal interface, the module supports both commercial (0 to 70 ℃) and industrial (-40 to 85 ℃) temperature grades, making it a flexible option for telecom access and metro networks.

Key Features

• 1.25 Gbps bidirectional transmission over a single single-mode fiber strand
• ST connector interface, with 60, 80 and 100 km reach variants
• Wavelength pairs: 1310/1550 nm or 1490/1550 nm, selected by distance
• 3.3 V supply with LVPECL signal interface
• Commercial (0 to 70 ℃) and industrial (-40 to 85 ℃) temperature grades
• Metal shield housing, EMC Class A design

Applications

• Telecom access and metro single-fiber links
• Gigabit Ethernet point-to-point backbone connections
• Long-haul point-to-point links over existing single fiber

Specifications
