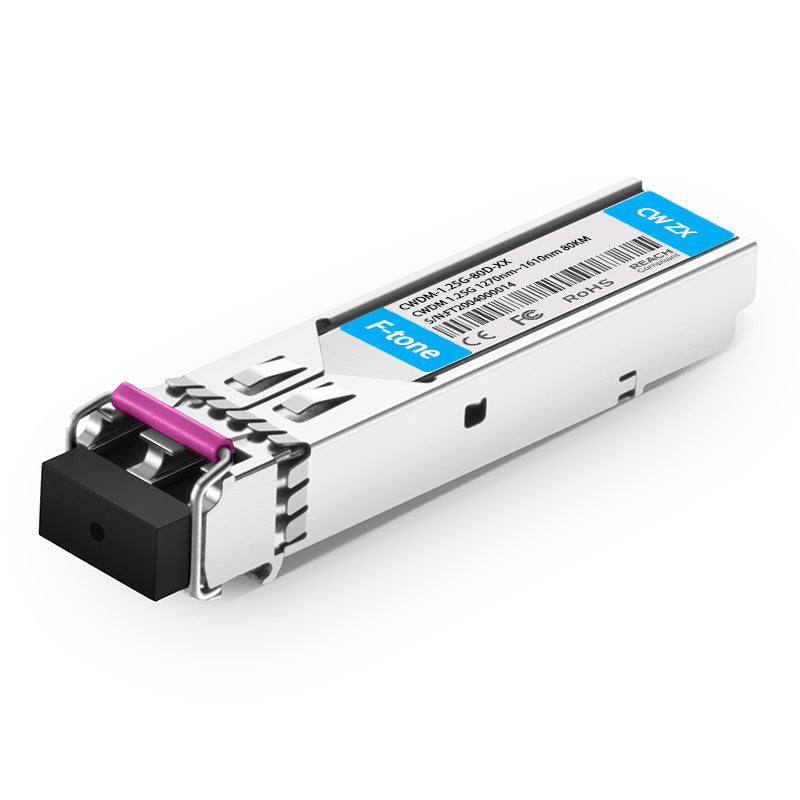

MODEL · FT-SFP-1-25G-150KM-1270-1610
1.25G CWDM SFP Transceiver, 1270-1610nm, 150km, DDM
F-tone Networks FT-SFP-1-25G-150KM-1270-1610: 1.25G CWDM SFP transceiver, 1270-1610nm, 150km, duplex LC, DDM. Hot-pluggable +3.3V for long-haul Gigabit links.
- 10
- us
- 250
- 800
- Min.
- Typical
- Storage Temperature
- TS | -40 | +85 | °C
- Supply Voltage
- VCC | -0.5 | 4 | V
- Relative Humidity
- FH | 0 | 85 | %
Reference model FT-SFP-1-25G-150KM-1270-1610 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| 10 | us |
|---|---|
| 250 | 800 |
| Min. | Typical |
| Storage Temperature | TS | -40 | +85 | °C |
| Supply Voltage | VCC | -0.5 | 4 | V |
| Relative Humidity | FH | 0 | 85 | % |
| Case operating Temperature | Industrial |
| TC | -40 |
| Extended | -5 |
| Commercial | 0 |
| Supply Current | Icc |
| Inrush Current | Isurge |
| Maximum Power | Pmax |
| Input differential impedance | Rin | 90 | 100 | 110 | | |
| Single ended data input swing | Vin PP | 250 | 1200 | mVp-p |
| Transmit Disable Voltage | VD |
| Vcc – 1.3 | Vcc |
| V | 5 |
| Transmit Enable Voltage | VEN | Vee | Vee+ 0.8 | V |
| Transmit Disable Assert Time | Tdessert |
| Single ended data output swing | Vout,pp |
| mv | 3 |
| LOS Fault | Vlosfault |
| Vcc – 0.5 | VCC_host |
| LOS Normal | Vlos norm |
| Vee | Vee+0.5 |
| Power Supply Rejection | PSR | 100 | mVpp | 6 |
| Center Wavelength | λc |
| λ-3 | λ |
| Spectral Width | σ |
| Side Mode Suppression Ratio | SMSR |
| Optical Output Power | Pout |
| +2 | +5 |
| dBm | 1 |
| Extinction Ratio | ER |
| Optical Rise/Fall Time | tr/ tf | 260 | ps | 2 |
| Relative Intensity Noise | FIN |
| -120 | dB/Hz |
| Output Eye Mask | Compliant with IEEE802.3 z (class 1 laser safety) |
| Optical Input Wavelength | λc | 1270 | 1610 | nm |
| Receiver Overload | Pol | -7 | dBm | 4 |
| FX Sensitivity | Sen | -34 | dBm | 4 |
| FX_LOS Assert | LOSA |
| FX_LOS De-assert | LOSD |
| FX_LOS Hysteresis | LOSH |
| Data Rate | BR |
| 1.25 | Gb/s |
| Bit Error Rate | BER | 10-12 |
| Max. Supported Link Length on 9/125μm SMF@1.25Gb/s | LMAX |
| Total System Budget | LB |
| Part Number | Product Description |
| FSPD-03C150-27 | SFP, 1270nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-29 | SFP, 1290nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-31 | SFP, 1310nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-33 | SFP, 1330nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-35 | SFP, 1350nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-37 | SFP, 1370nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-39 | SFP, 1390nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-41 | SFP, 1410nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-43 | SFP, 1430nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-45 | SFP, 1450nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-47 | SFP, 1470nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-49 | SFP, 1490nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-51 | SFP, 1510nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-53 | SFP, 1530nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-55 | SFP, 1550nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-57 | SFP, 1570nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-59 | SFP, 1590nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
| FSPD-03C150-61 | SFP, 1610nm CWDM, 1.25Gbps, LC, 150km, 0°C~+70°C, with DDM |
Overview
Product details
The FT-SFP-1-25G-150KM-1270-1610 is a 1.25 Gb/s CWDM SFP transceiver operating across the 1270 to 1610 nm band, covering all 18 CWDM wavelengths. It delivers 150 km of single-mode transmission at Gigabit Ethernet rates using a CWDM DFB laser transmitter paired with an APD receiver.
The module is hot-pluggable in standard SFP slots, runs on a single +3.3 V supply, and carries a duplex LC optical interface. Digital diagnostic monitoring reports temperature, voltage, bias current and optical power in real time, simplifying link supervision on long-haul routes. It suits carrier metro, access aggregation and enterprise backbone links that need extended reach without external amplification.
Key Features
- 1.25 Gb/s data rate; 150 km reach over 9/125 μm single-mode fiber
- 18 CWDM wavelengths, 1270 to 1610 nm
- CWDM DFB laser transmitter with APD receiver
- Transmit power +2 to +5 dBm; receiver sensitivity -34 dBm
- Hot-pluggable SFP footprint; duplex LC connector; single +3.3 V supply
- Digital diagnostic monitoring (DDM); commercial 0 to 70 °C operation
Applications
- Carrier metro and access aggregation networks
- Enterprise backbone long-haul links
- WDM point-to-point Gigabit Ethernet links
Specifications
| Part Number | FT-SFP-1-25G-150KM-1270-1610 |
| Form Factor | SFP, hot-pluggable |
| Data Rate | 1.25 Gb/s |
| Wavelength | 1270-1610 nm CWDM, 18 channels |
| Distance | 150 km over 9/125 μm SMF |
| Connector | Duplex LC |
| Supply Voltage | +3.3 V |
| Transmitter | CWDM DFB LD |
| Receiver | APD |
| TX Output Power | +2 to +5 dBm |
| RX Sensitivity | -34 dBm |
| LOS Assert / De-assert | -45 / -35 dBm |
| Diagnostics | DDM |
| Operating Temperature | 0 to +70 °C |
