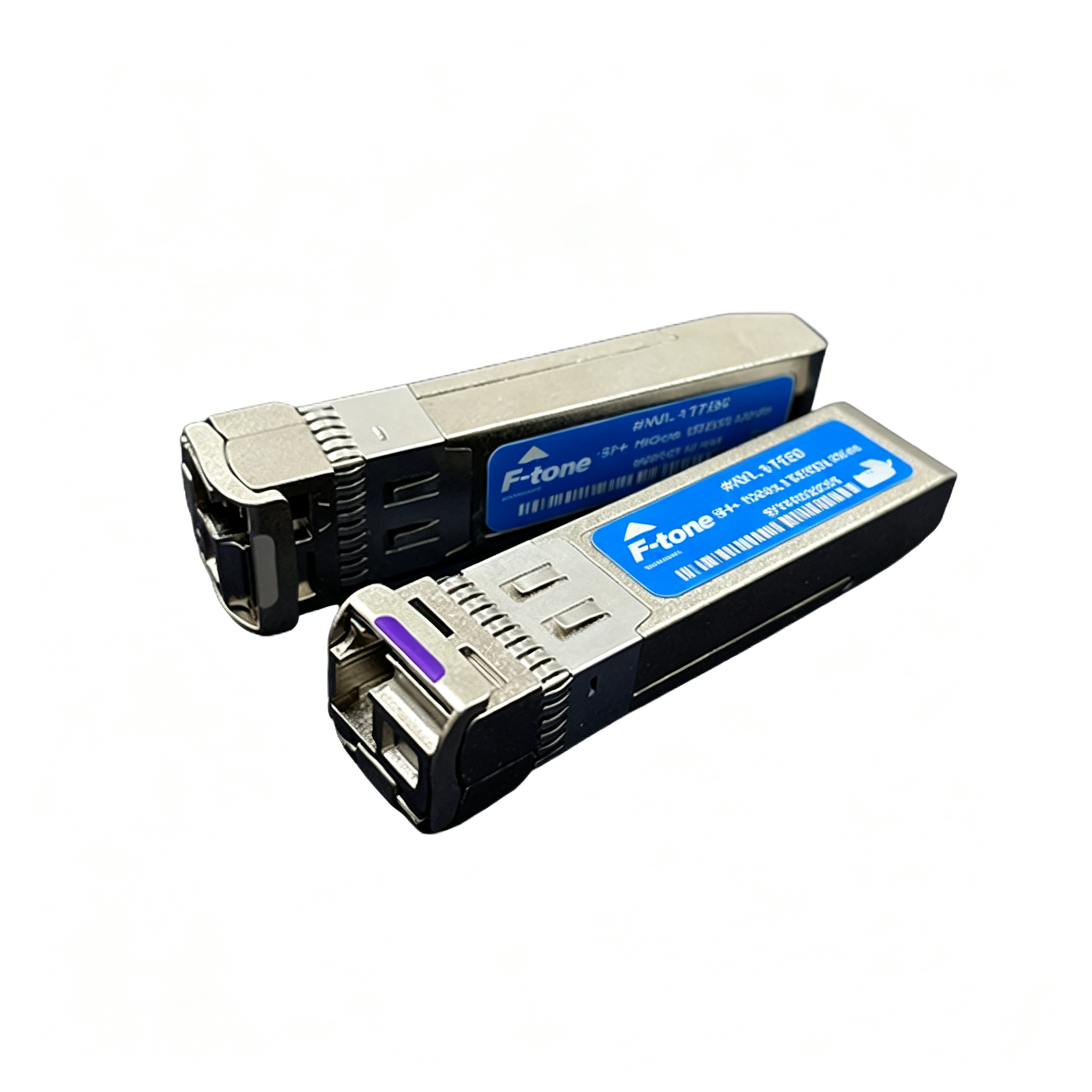

10G SFP+ BIDI Transceiver, 1270/1330nm, 10-60km
10G SFP+ BIDI single-mode transceivers on 1270/1330nm, 10km, 20km and 60km reach, DFB laser with PIN or APD receiver, digital diagnostics. F-tone Networks.
- Part Number
- 速率 | 光纤类型 | 波长(nm) | LD/PD | 发射光功率 （dBm） | 接收灵敏度（dBm） | 传输距离（Km） | 数字诊断
- FT-95-UL-TTLDE-MX
- 10G | SM | 1270/1330 | DFB/PIN | -5～+1 | -14.4 | 10 | Y
- FT-95-UL-TTLED-MX
- 10G | SM | 1330/1270 | DFB/PIN | -5～+1 | -14.4 | 10 | Y
- FT-95-UL-TT2DE-MX
- 10G | SM | 1270/1330 | DFB/PIN | -2～+3 | -14.4 | 20 | Y
- FT-95-UL-TT2ED-MX
- 10G | SM | 1330/1270 | DFB/PIN | -2～+3 | -14.4 | 20 | Y
- FT-95-UL-TT6DE-MX
- 10G | SM | 1270/1330 | DFB/APD | +1～+5 | -20 | 60 | Y
Reference model FT-NM-LD-PD-DBM-DBM-KM-10 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| Part Number | 速率 | 光纤类型 | 波长(nm) | LD/PD | 发射光功率 （dBm） | 接收灵敏度（dBm） | 传输距离（Km） | 数字诊断 |
|---|---|
| FT-95-UL-TTLDE-MX | 10G | SM | 1270/1330 | DFB/PIN | -5～+1 | -14.4 | 10 | Y |
| FT-95-UL-TTLED-MX | 10G | SM | 1330/1270 | DFB/PIN | -5～+1 | -14.4 | 10 | Y |
| FT-95-UL-TT2DE-MX | 10G | SM | 1270/1330 | DFB/PIN | -2～+3 | -14.4 | 20 | Y |
| FT-95-UL-TT2ED-MX | 10G | SM | 1330/1270 | DFB/PIN | -2～+3 | -14.4 | 20 | Y |
| FT-95-UL-TT6DE-MX | 10G | SM | 1270/1330 | DFB/APD | +1～+5 | -20 | 60 | Y |
| FT-95-UL-TT6ED-MX | 10G | SM | 1330/1270 | DFB/APD | +1～+5 | -20 | 60 | Y |
Product details
Paired BIDI modules in this range send and receive on 1270 and 1330 nm, so one fiber serves both directions. The 10 km and 20 km versions combine a DFB laser with a PIN detector; the 60 km version uses an APD. Transmit power and receive sensitivity step up with distance, and digital diagnostics are marked on every listed version.
Key Features
- BIDI wavelengths 1270/1330 nm, SM
- Reach options 10 / 20 / 60 km
- DFB/PIN (10, 20 km) or DFB/APD (60 km)
- Rx sensitivity -14.4 dBm (PIN) / -20 dBm (APD)
- Digital diagnostics
Applications
- Single-fiber 10G Ethernet
- Access and metro BIDI links
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 10G |
| Fiber Type | SM |
| Wavelengths | 1270/1330 nm pairs |
| Reach | 10 / 20 / 60 km |
| LD/PD | DFB/PIN; DFB/APD (60 km) |
| Digital Diagnostics | Y |
Ordering References
Model and part numbers for ordering reference:
| Reference | Description |
|---|---|
| FT-95-UL-TTLDE-MX | 10G, SM, 1270/1330 nm, DFB/PIN, Tx -5~+1 dBm, Rx -14.4 dBm, 10 km, DDM |
| FT-95-UL-TTLED-MX | 10G, SM, 1330/1270 nm, DFB/PIN, Tx -5~+1 dBm, Rx -14.4 dBm, 10 km, DDM |
| FT-95-UL-TT2DE-MX | 10G, SM, 1270/1330 nm, DFB/PIN, Tx -2~+3 dBm, Rx -14.4 dBm, 20 km, DDM |
| FT-95-UL-TT2ED-MX | 10G, SM, 1330/1270 nm, DFB/PIN, Tx -2~+3 dBm, Rx -14.4 dBm, 20 km, DDM |
| FT-95-UL-TT6DE-MX | 10G, SM, 1270/1330 nm, DFB/APD, Tx +1~+5 dBm, Rx -20 dBm, 60 km, DDM |
| FT-95-UL-TT6ED-MX | 10G, SM, 1330/1270 nm, DFB/APD, Tx +1~+5 dBm, Rx -20 dBm, 60 km, DDM |
