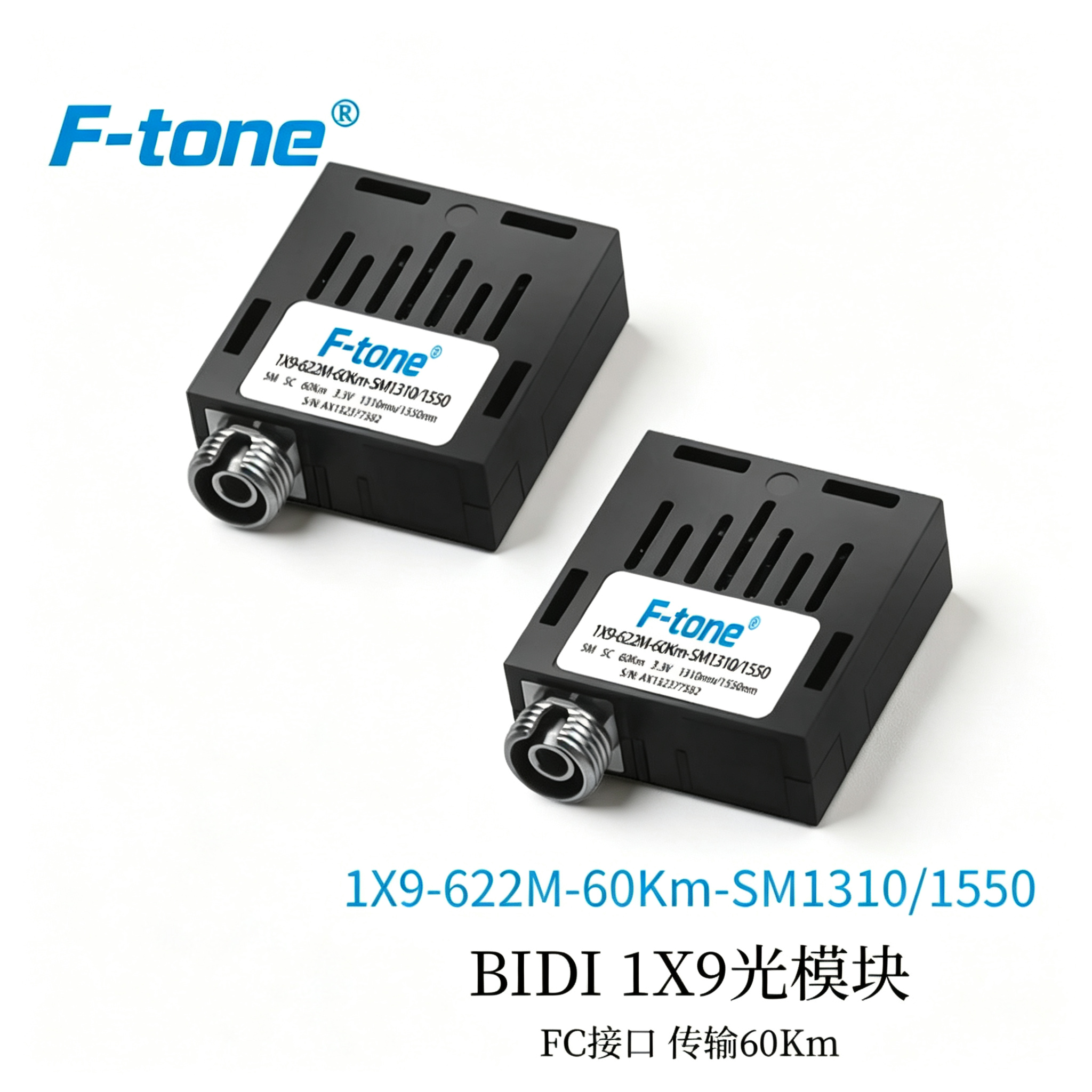

622Mbps 1x9 BIDI SC Single-Mode Optical Transceiver, 60-100km

Overview

The FT-BIDI-15 is a 622 Mbps 1x9 bidirectional optical transceiver with an SC connector for single-fiber links from 60 to 100 km. Wavelength-division diplexing carries transmit and receive traffic on one fiber strand through 1310/1550 nm or 1490/1550 nm pairs, selected by distance option, so operators double span capacity without new fiber builds. It draws from a 3.3 V supply and presents an LVPECL electrical interface compatible with legacy SONET/SDH line cards. EMC-CLASS A shielding with a metal-shielded plastic housing suits central-office and street-cabinet environments. F-tone Networks offers the FT-BIDI-15 to extend STM-4 services across metro access and rural routes where fiber counts are limited.

Key Features

• 622 Mbps bidirectional transmission over a single single-mode fiber strand
• SC connector; reach options from 60 to 100 km
• Wavelength pairs: 1310/1550 nm (60 km) or 1490/1550 nm (60/80/100 km)
• 3.3 V supply; LVPECL electrical interface
• Operating temperature 0 to 70 °C / -40 to 85 °C
• EMC-CLASS A design: metal shield with plastic housing

Applications

• SONET/SDH STM-4 access links in metro networks
• Rural point-to-point spans with limited fiber counts
• FTTH and access aggregation over single-fiber plant

Specifications
