155M 1x9 BIDI SC Optical Transceiver 60-120km

Overview

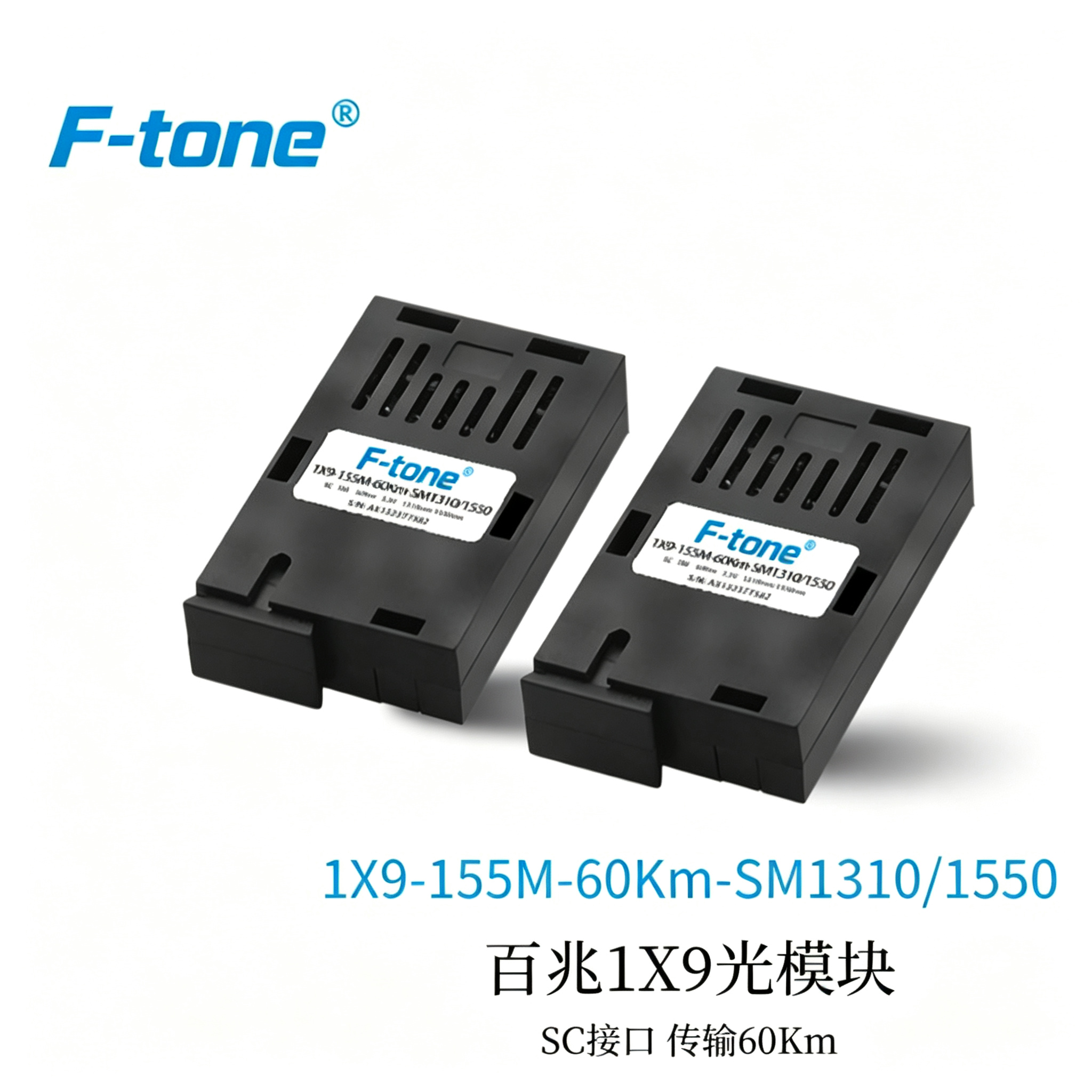

The FT-BIDI-12 is a 155 Mbps 1x9 bidirectional optical transceiver series built for long-haul single-fiber links. It transmits and receives over one strand of single-mode fiber through an SC connector, with distance options of 60, 80, 100 and 120 km and wavelength options of 1310, 1490 and 1550 nm to match the paired module at the far end. Supplied from 3.3 V with an LVPECL interface, the modules sit in a metal-shielded package designed to meet EMC-CLASS A requirements. Commercial and industrial temperature ratings cover 0 to 70 °C and -40 to 85 °C. The series targets carriers and utilities that need extended reach without laying a second fiber.

Key Features

• 155 Mbps bidirectional transmission over one single-mode fiber strand
• SC connector with distance options of 60, 80, 100 and 120 km
• Wavelength options of 1310, 1490 and 1550 nm to pair with the far-end module
• 3.3 V supply with LVPECL signal interface
• Metal-shielded package designed to meet EMC-CLASS A requirements
• Operating temperature: 0 to 70 °C commercial, -40 to 85 °C industrial

Applications

• Long-haul carrier access and metro aggregation links
• Utility and railway fiber routes with limited strands
• SDH STM-1 / SONET OC-3 point-to-point connections

Specifications
