155M 1x9 SC Single-Mode Optical Transceiver, 60-120km

Overview

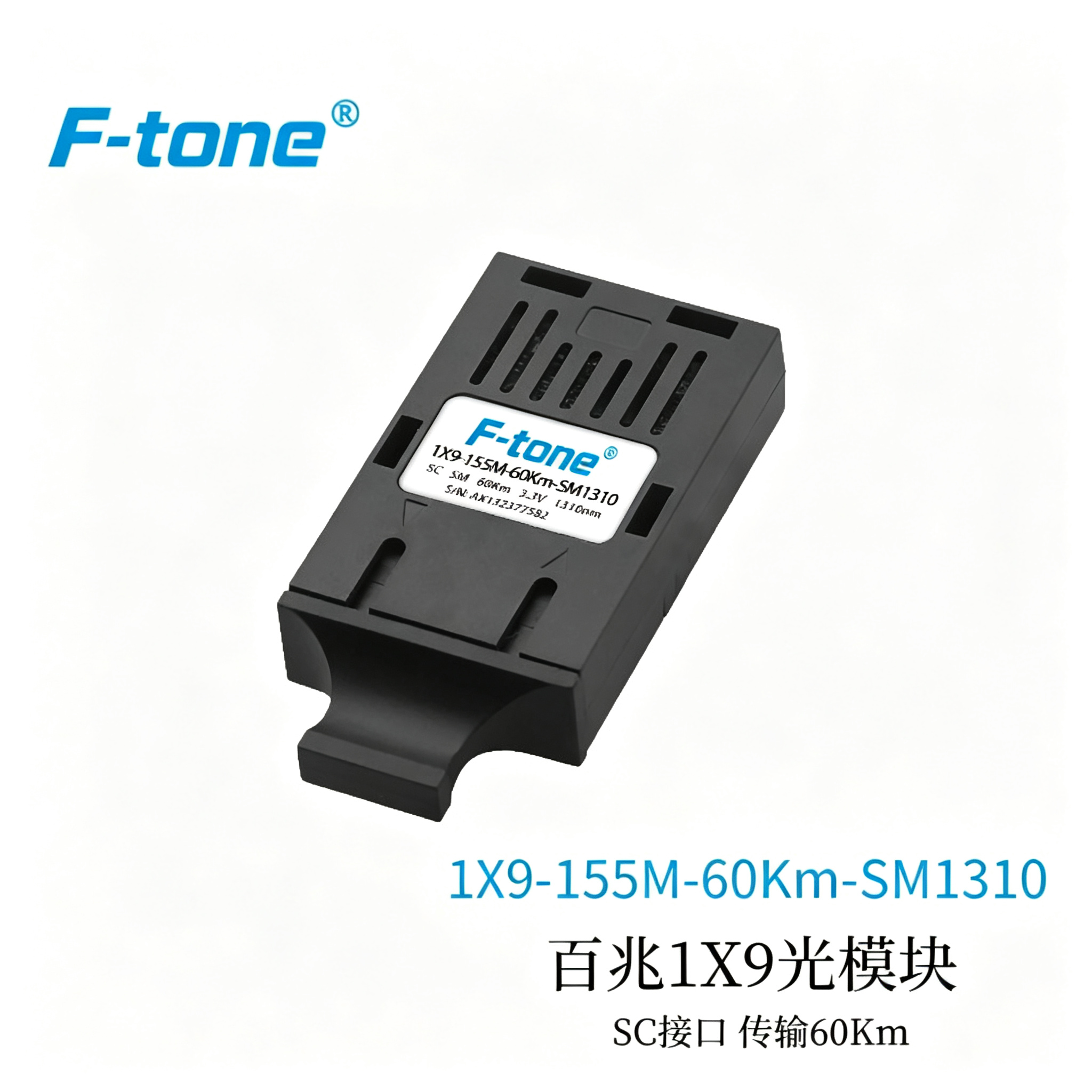

The FT-155M-22 is a family of 155 Mbps 1x9 single-mode optical modules with a SC connector, supplied in transmitter-only (/T) and receiver-only (/R) versions for unidirectional long-reach designs. The lineup covers 60 km at 1310 nm (FT-S1136-**/T, /R) and 80, 100 and 120 km at 1550 nm (FT-S1158, FT-S115X and FT-S115Y, each in /T and /R versions), all running on a single 3.3 V supply with an LVPECL interface. Separating the TX and RX functions suits asymmetric telecom and industrial links where the two directions are installed independently. Commercial (0 to 70 °C) and industrial (-40 to 85 °C) grades are available, and EMC Class A shielding keeps the signal stable in electrically noisy environments.

Key Features

• 155 Mbps 1x9 modules in transmitter-only (/T) and receiver-only (/R) versions
• SC connector, single-mode fiber: 60 km @ 1310 nm; 80, 100 and 120 km @ 1550 nm
• Single 3.3 V supply; LVPECL interface with LVTTL signal-detect output
• Commercial (0 to 70 °C) and industrial (-40 to 85 °C) grades
• EMC Class A: metallic shield with plastic housing
• Customizable high-quality metallized connector options per factory specification

Applications

• Unidirectional long-haul SDH/SONET STM-1/OC-3 links up to 120 km
• Telecom access and metro backbone extensions
• Asymmetric industrial and video transport links
• Fast Ethernet and ATM long-distance backbones

Specifications
