1.25G CWDM Single-Mode Optical Transceiver 40km

Overview

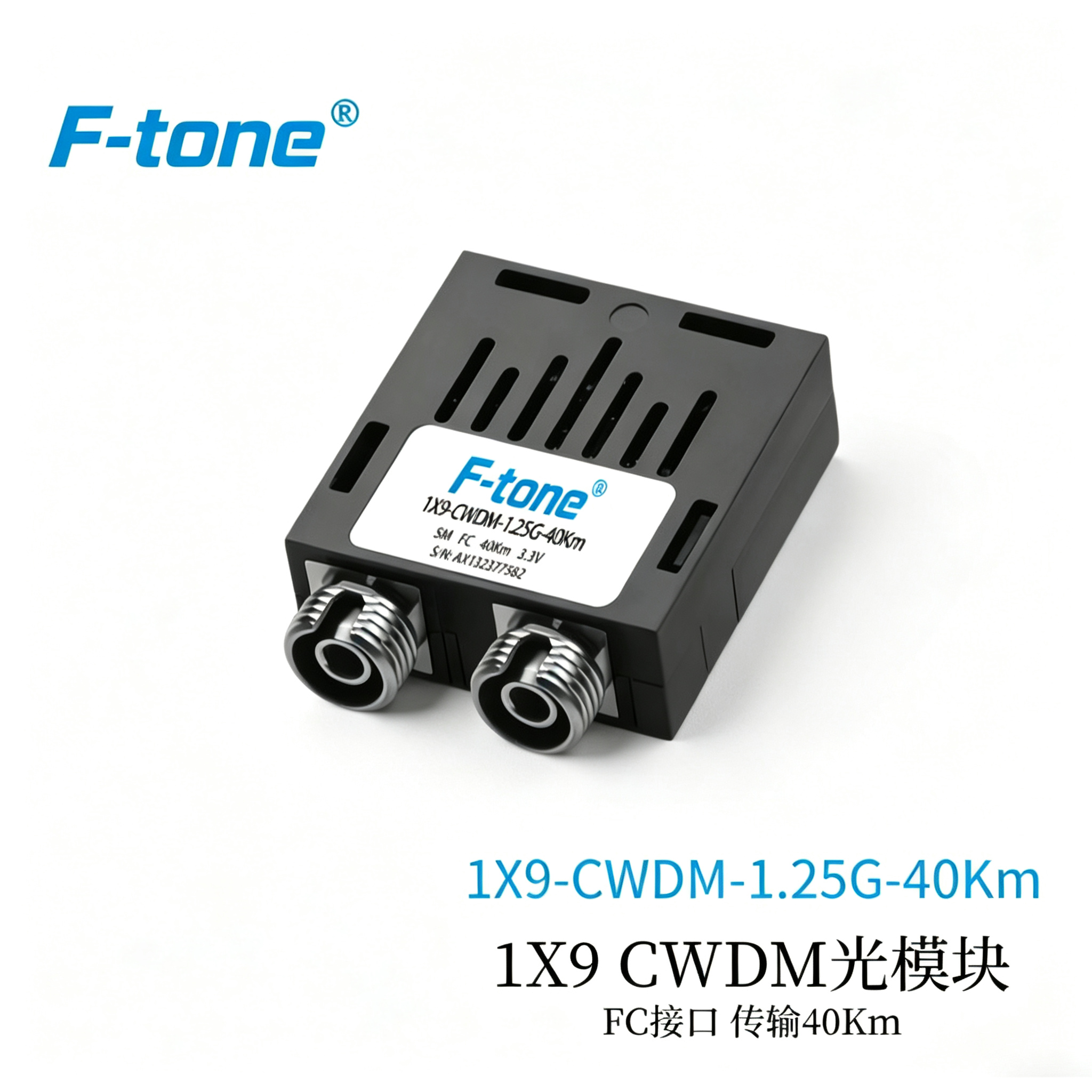

The FT-1-25G-40KM-1270 is a 1.25 Gbps 1x9 CWDM transceiver for single-mode fiber, covering 1270 to 1450 nm and reaching 40 km. It fits networks that carry multiple wavelengths over one fiber pair, such as CWDM multiplexer chains in metro access. The module accepts SC, FC or ST connectors and runs on a 3.3 V supply with an LVPECL electrical interface. With commercial and industrial temperature grades, it installs in central offices or outdoor enclosures alike. F-tone Networks verifies wavelength accuracy and link performance on every unit.

Key Features

• 1.25 Gbps CWDM transceiver for Fast Ethernet and Gigabit Ethernet
• Wavelength band 1270 to 1450 nm on single-mode fiber
• Transmission reach up to 40 km; 60, 80 and 100 km options in series
• SC, FC or ST connector options
• 3.3 V supply with LVPECL electrical interface
• Commercial 0 to 70 °C and industrial -40 to 85 °C grades

Applications

• CWDM multiplexer chains in metro access networks
• Multi-wavelength point-to-point Ethernet links
• Fiber relief and capacity expansion on existing plant

Specifications

Contact

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
