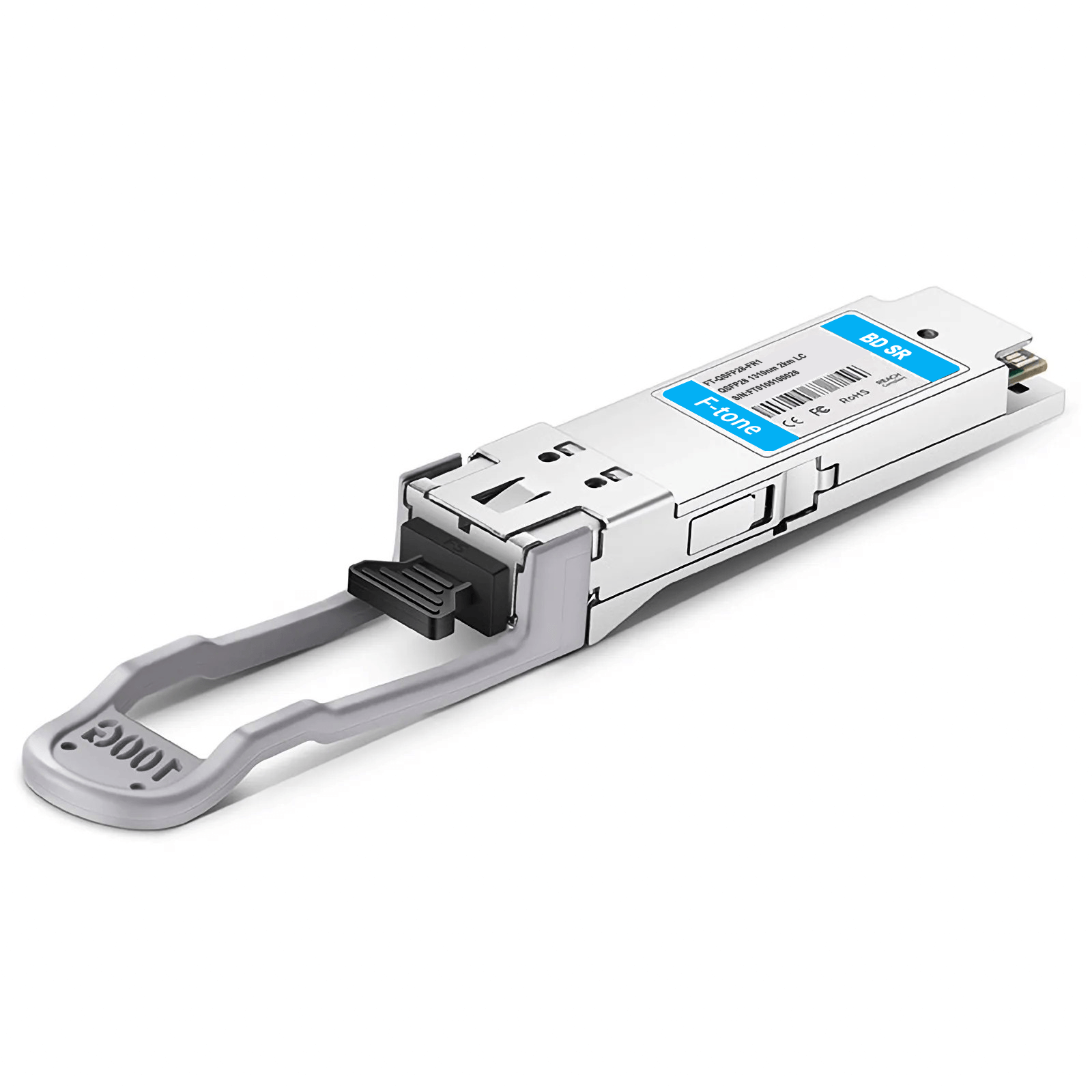

FT-QSFP28-100G-5 product image - F-tone Networks 1 / 4
MODEL · FT-QSFP28-100G-5

100G QSFP28 Optical Transceiver SR4/LR4/ER4/ZR4 Series

F-tone Networks FT-QSFP28-100G-5: 100G QSFP28 transceiver family with SR4 100m, LR4 10km, ER4 40km and ZR4 80km reaches, in commercial and industrial grades.

Optical Transceivers
ProductNumber
DataRate(Gb/s) | Wavelength(nm) | Reach(km) | LD | TxPower(dBm) | PD | RxSens(dBm) | Temperature(℃)
FTQ-100G-SR4
100 | 850nm | 0.1 | VCSEL | -8.4~2.4 | PIN | <-10.3 | 0~70
FTQ-100G-SR4-I
100 | 850nm | 0.1 | VCSEL | -8.4~2.4 | PIN | <-10.3 | -40~85
FTQ-100G-LR4
100 | 1310nm | 10 | LANWDMDFB | -4.3~4.5 | PIN | <-10.6 | 0~70
FTQ-100G-LR4-I
100 | 1310nm | 10 | LANWDMDFB | -4.3~4.5 | PIN | <-10.6 | -40~85
FTQ-100G-ER4
100 | 1310nm | 40 | LANWDMEML | -2.9~4.5 | APD | <-14.65 | 0~70
Request a quote WhatsApp Betty

Reference model FT-QSFP28-100G-5 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓

Specifications

Technical parameters

ProductNumberDataRate(Gb/s) | Wavelength(nm) | Reach(km) | LD | TxPower(dBm) | PD | RxSens(dBm) | Temperature(℃)
FTQ-100G-SR4100 | 850nm | 0.1 | VCSEL | -8.4~2.4 | PIN | <-10.3 | 0~70
FTQ-100G-SR4-I100 | 850nm | 0.1 | VCSEL | -8.4~2.4 | PIN | <-10.3 | -40~85
FTQ-100G-LR4100 | 1310nm | 10 | LANWDMDFB | -4.3~4.5 | PIN | <-10.6 | 0~70
FTQ-100G-LR4-I100 | 1310nm | 10 | LANWDMDFB | -4.3~4.5 | PIN | <-10.6 | -40~85
FTQ-100G-ER4100 | 1310nm | 40 | LANWDMEML | -2.9~4.5 | APD | <-14.65 | 0~70
FTQ-100G-ER4-I100 | 1310nm | 40 | LANWDMEML | -2.9~4.5 | APD | <-14.65 | -40~85
FTQ-100G-ZR4100 | 1310nm | 80 | LANWDMEML | 2~4.5 | PIN+SOA | <-24 | 0~70
FTQ-100G-ZR4-I100 | 1310nm | 80 | LANWDMEML | 2~4.5 | PIN+SOA | <-24 | -40~85
Overview

Product details

Overview

The FT-QSFP28-100G-5 is a 100G QSFP28 optical transceiver family built for data center and telecom networks that need flexible reach options. The series covers four standard variants: SR4 for 100 m links over multimode fiber at 850 nm, LR4 for 10 km single-mode links at 1310 nm, ER4 for 40 km, and ZR4 for 80 km. Each variant pairs its laser and receiver to the distance, from VCSEL plus PIN on short reach to EML plus APD or PIN with SOA on the long-reach models. Commercial and industrial temperature versions are available across the range, so one platform fits both controlled and harsh environments.

Key Features

  • 100G QSFP28 form factor for data center and telecom platforms
  • SR4: 850 nm VCSEL, 100 m reach over multimode fiber
  • LR4: 1310 nm LAN WDM, 10 km over single-mode fiber
  • ER4: 40 km reach with EML laser and APD receiver
  • ZR4: 80 km reach with EML laser and PIN plus SOA receiver
  • Commercial 0 to 70 °C and industrial -40 to 85 °C versions

Applications

  • Data center leaf-spine interconnects
  • Enterprise and campus backbone links
  • Metro and long-haul DCI transport

Specifications

Part NumberFT-QSFP28-100G-5
Form FactorQSFP28
SR4 Variant100G | 850 nm VCSEL | 0.1 km | TX -8.4~2.4 dBm | PIN | RX <-10.3 dBm | 0~70 °C
SR4 Industrial Variant100G | 850 nm VCSEL | 0.1 km | TX -8.4~2.4 dBm | PIN | RX <-10.3 dBm | -40~85 °C
LR4 Variant100G | 1310 nm LAN WDM DFB | 10 km | TX -4.3~4.5 dBm | PIN | RX <-10.6 dBm | 0~70 °C
LR4 Industrial Variant100G | 1310 nm LAN WDM DFB | 10 km | TX -4.3~4.5 dBm | PIN | RX <-10.6 dBm | -40~85 °C
ER4 Variant100G | 1310 nm LAN WDM EML | 40 km | TX -2.9~4.5 dBm | APD | RX <-14.65 dBm | 0~70 °C
ER4 Industrial Variant100G | 1310 nm LAN WDM EML | 40 km | TX -2.9~4.5 dBm | APD | RX <-14.65 dBm | -40~85 °C
ZR4 Variant100G | 1310 nm LAN WDM EML | 80 km | TX 2~4.5 dBm | PIN+SOA | RX <-24 dBm | 0~70 °C
ZR4 Industrial Variant100G | 1310 nm LAN WDM EML | 80 km | TX 2~4.5 dBm | PIN+SOA | RX <-24 dBm | -40~85 °C

Contact

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
