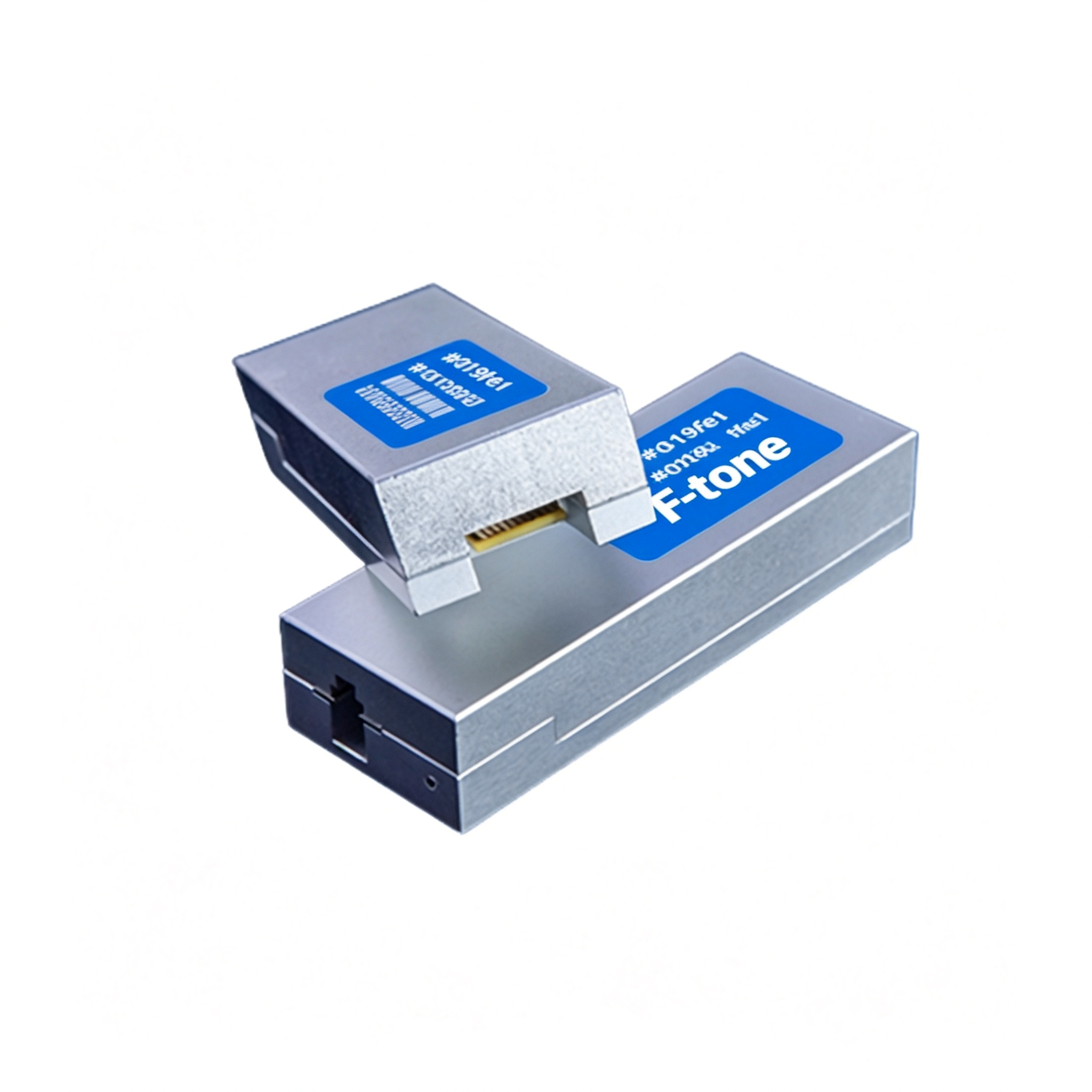

FT-NM-LD-PD-DBM-DBM-KM-4 product image - F-tone Networks
MODEL · FT-NM-LD-PD-DBM-DBM-KM-4

10G CWDM Optical Transceiver, 1270-1610nm, 10-60km

10G CWDM optical transceivers on single-mode fiber, 1270-1610nm at 20nm spacing, 10/20/40/60km reach options, PIN or APD receivers, with DDM. F-tone Networks.

Optical TransceiversWDM / OTN Systems
Part Number
速率 | 光纤类型 | 波长(nm) | LD/PD | 发射光功率（dBm） | 接收灵敏度（dBm） | 传输距离(Km) | 数字诊断
FT-95-VL-TTLXX-MX
10G | SM | 1270～1610(20nm间隔) | CWDM/PIN | -3～+1 | -14.4 | 10 | Y
FT-95-VL-TT2XX-MX
10G | SM | 1270～1610(20nm间隔) | CWDM/PIN | -3～+2 | -14.4 | 20 | Y
FT-95-VL-TTDXX-MX
10G | SM | 1270～1610(20nm间隔) | CWDM/PIN | +1.5～+5 | -14.4 | 40 | Y
FT-95-VL-TT6XX-MX
10G | SM | 1270～1610(20nm间隔) | CWDM/APD | 0～+5 | -20 | 60 | Y
FT-95-VLS-TTLXX8-MX
10G | SM/MM | 1270～1610(20nm间隔)/850 | CWDM/PIN | -3~+3 | -11.1 | – | Y
Request a quote WhatsApp Betty

Reference model FT-NM-LD-PD-DBM-DBM-KM-4 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓

Specifications

Technical parameters

Part Number速率 | 光纤类型 | 波长(nm) | LD/PD | 发射光功率（dBm） | 接收灵敏度（dBm） | 传输距离(Km) | 数字诊断
FT-95-VL-TTLXX-MX10G | SM | 1270～1610(20nm间隔) | CWDM/PIN | -3～+1 | -14.4 | 10 | Y
FT-95-VL-TT2XX-MX10G | SM | 1270～1610(20nm间隔) | CWDM/PIN | -3～+2 | -14.4 | 20 | Y
FT-95-VL-TTDXX-MX10G | SM | 1270～1610(20nm间隔) | CWDM/PIN | +1.5～+5 | -14.4 | 40 | Y
FT-95-VL-TT6XX-MX10G | SM | 1270～1610(20nm间隔) | CWDM/APD | 0～+5 | -20 | 60 | Y
FT-95-VLS-TTLXX8-MX10G | SM/MM | 1270～1610(20nm间隔)/850 | CWDM/PIN | -3~+3 | -11.1 | – | Y
Overview

Product details

CWDM wavelengths from 1270 to 1610 nm on a 20 nm grid are covered by this 10G single-mode transceiver range. Reach options are 10, 20, 40 and 60 km, with transmit power and receive sensitivity scaled to each distance; the 60 km version moves from a PIN to an APD receiver. Digital diagnostics are marked on every listed version, and one dual-mode entry adds 850 nm multimode.

Key Features

  • 10G CWDM, SM fiber, 1270-1610 nm (20 nm spacing)
  • Reach options: 10 / 20 / 40 / 60 km
  • CWDM laser with PIN receiver; APD receiver for 60 km
  • Digital diagnostics on all listed versions
  • Rx sensitivity -14.4 dBm (PIN) or -20 dBm (APD)

Applications

  • CWDM metro and access links
  • Multi-wavelength aggregation on one fiber pair
  • Campus CWDM rings

Specifications

ParameterValue
Data Rate10G
Fiber TypeSM (one version SM/MM)
Wavelength1270-1610 nm (20 nm spacing); 850 nm on SM/MM version
Reach10 / 20 / 40 / 60 km
LD/PDCWDM/PIN; CWDM/APD (60 km)
Digital DiagnosticsY

Ordering References

Model and part numbers for ordering reference:

ReferenceDescription
FT-95-VL-TTLXX-MX10G, SM, 1270-1610 nm, CWDM/PIN, Tx -3~+1 dBm, Rx -14.4 dBm, 10 km, DDM
FT-95-VL-TT2XX-MX10G, SM, 1270-1610 nm, CWDM/PIN, Tx -3~+2 dBm, Rx -14.4 dBm, 20 km, DDM
FT-95-VL-TTDXX-MX10G, SM, 1270-1610 nm, CWDM/PIN, Tx +1.5~+5 dBm, Rx -14.4 dBm, 40 km, DDM
FT-95-VL-TT6XX-MX10G, SM, 1270-1610 nm, CWDM/APD, Tx 0~+5 dBm, Rx -20 dBm, 60 km, DDM
FT-95-VLS-TTLXX8-MX10G, SM/MM, 1270-1610 nm / 850 nm, CWDM/PIN, Tx -3~+3 dBm, Rx -11.1 dBm, DDM
