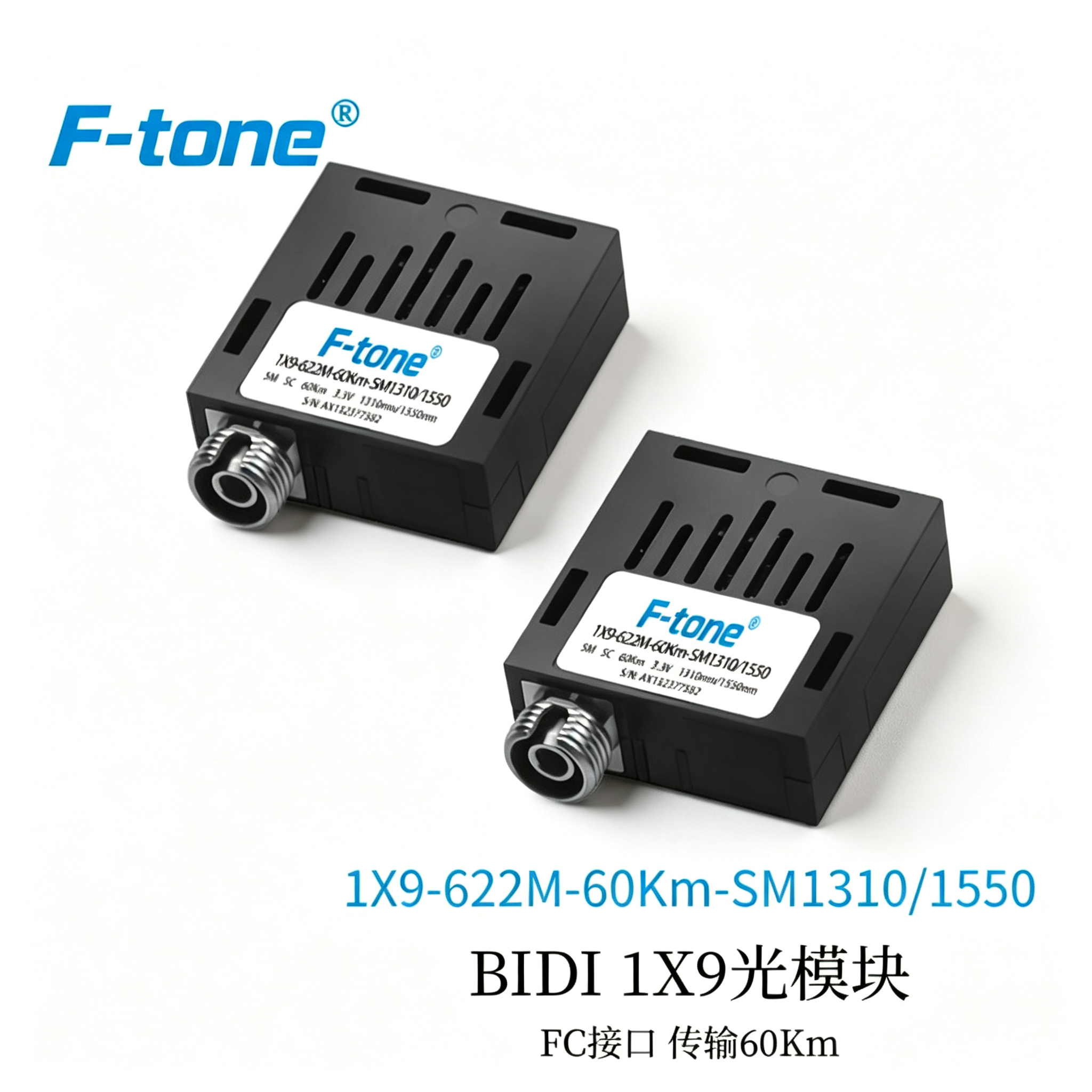

622Mbps 1x9 BIDI FC Single-Mode Optical Transceiver, 60-100km

Overview

The FT-BIDI-14 is a 622 Mbps 1x9 bidirectional optical transceiver with an FC connector, designed for long-reach single-fiber links from 60 to 100 km. Wavelength-division diplexing sends and receives on one fiber strand, using 1310/1550 nm or 1490/1550 nm pairs depending on the distance option, which halves fiber consumption on metro and rural routes. The module runs from a 3.3 V supply with an LVPECL electrical interface to match legacy SONET/SDH line cards. EMC-CLASS A shielding in a metal-shielded plastic housing supports electrically noisy environments. F-tone Networks positions the FT-BIDI-14 as a cost-effective way to extend STM-4 services across long access spans without laying new fiber.

Key Features

• 622 Mbps bidirectional transmission over a single single-mode fiber strand
• FC connector; reach options from 60 to 100 km
• Wavelength pairs: 1310/1550 nm (60 km) or 1490/1550 nm (60/80/100 km)
• 3.3 V supply; LVPECL electrical interface
• Operating temperature 0 to 70 °C / -40 to 85 °C
• EMC-CLASS A design: metal shield with plastic housing

Applications

• SONET/SDH STM-4 (OC-12) access and aggregation links
• Metro and rural long-reach point-to-point fiber runs
• Wireless backhaul and utility networks needing single-fiber links

Specifications
