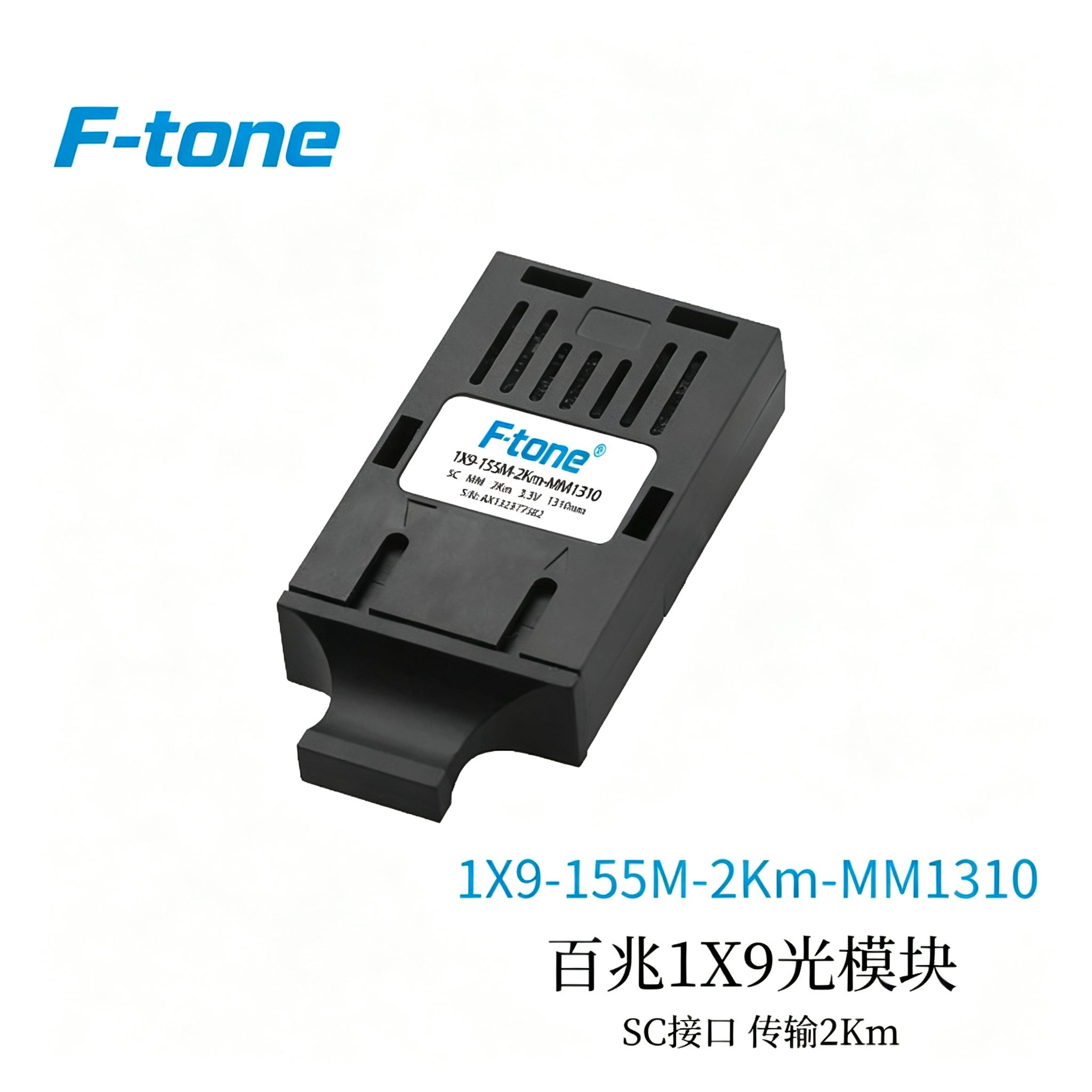

1 / 2155M 1x9 FC Multimode Optical Transceiver
F-tone Networks FT-155M: 155 Mbps 1x9 FC multimode transceiver, 850 nm to 550 m and 1310 nm to 2 km, 3.3 V, LVPECL. For Fast Ethernet and SDH STM-1 networks.
- 产品型号 Product Model
- 速率Data Rate | 接头类型Port | 单多模Fiber | 波长Wave(nm) | 传输距离Distance (KM) | 电压Voltage | 信号电平Signal Level | 温度Temp. (℃)
- FT-M1850–S*
- 155Mbps | SC | MM | MM 850nm | 550M | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
- FT-M1130–S*
- 155Mbps | SC | MM | MM 1310nm | 2KM | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
- FT-M1850–F*
- 155Mbps | FC | MM | MM 850nm | 550M | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
- FT-M1130–F*
- 155Mbps | FC | MM | MM 1310nm | 2KM | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
- FT-M1850–T*
- 155Mbps | ST | MM | MM 850nm | 550M | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
Reference model FT-155M in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| 产品型号 Product Model | 速率Data Rate | 接头类型Port | 单多模Fiber | 波长Wave(nm) | 传输距离Distance (KM) | 电压Voltage | 信号电平Signal Level | 温度Temp. (℃) |
|---|---|
| FT-M1850–S* | 155Mbps | SC | MM | MM 850nm | 550M | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-M1130–S* | 155Mbps | SC | MM | MM 1310nm | 2KM | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-M1850–F* | 155Mbps | FC | MM | MM 850nm | 550M | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-M1130–F* | 155Mbps | FC | MM | MM 1310nm | 2KM | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-M1850–T* | 155Mbps | ST | MM | MM 850nm | 550M | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-M1130–T* | 155Mbps | ST | MM | MM 1310nm | 2KM | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| 1. 接地工业级:-40~105°C(**FC/ST) 2. 2.过EMC-CLASS A(金属屏蔽罩+屏蔽外壳) 3. 3.LVPECL电平需第四脚TTL电平 4. 4.定制高品质FC/ST接头光模块(见上图) 5. 5.双芯片5V光模块 需要以上光模块，可咨询厂家 | 1. Grounding industrialTemperature Range: -40°C to +105°C 2. EMC-CLASS A:Metallic shield and Plastic housing. 3.LVPECL-SD:LVTTL 4.Customizable FC/ST Metallized connector 5.5v Optical Modules For more information,please contactthe manufacturer! |
| 产品型号Product Model | 速率Data Rate | 接头类型Port | 单多模Fiber | 波长Wave(nm) | 传输距离Distance (KM) | 电压Voltage | 信号电平Signal Level | 温度Temp. (℃) |
Product details
Overview
The FT-155M is a 155 Mbps 1x9 optical transceiver series for multimode fiber networks. Equipped with a threaded FC connector, it offers two wavelength choices: 850 nm for reaches up to 550 m and 1310 nm for reaches up to 2 km over multimode fiber. The 155 Mbps rate matches SDH STM-1 and Fast Ethernet over fiber, fitting access and enterprise backbones. The module runs from 3.3 V with an LVPECL signal interface and comes in a metal-shielded package designed to meet EMC-CLASS A requirements. Commercial and industrial temperature ranges of 0 to 70 °C and -40 to 85 °C keep it stable in both wiring closets and harsher field cabinets.
Key Features
- 155 Mbps data rate over multimode fiber through an FC connector
- 850 nm version up to 550 m; 1310 nm version up to 2 km
- 3.3 V supply with LVPECL signal interface
- Metal-shielded package designed to meet EMC-CLASS A requirements
- Operating temperature: 0 to 70 °C commercial, -40 to 85 °C industrial
Applications
- Fast Ethernet over fiber in enterprise networks
- SDH STM-1 access and building backbones
- Campus and industrial multimode fiber links
Specifications
| Part Number | FT-155M |
| Form Factor | 1x9 optical transceiver |
| Data Rate | 155 Mbps |
| Connector | FC |
| Fiber Type | Multimode |
| Wavelength / Distance | 850 nm up to 550 m; 1310 nm up to 2 km |
| Supply Voltage | 3.3 V |
| Signal Interface | LVPECL |
| EMI Shielding | Metal-shielded package, EMC-CLASS A design |
| Operating Temperature | 0 to 70 °C (commercial), -40 to 85 °C (industrial) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
