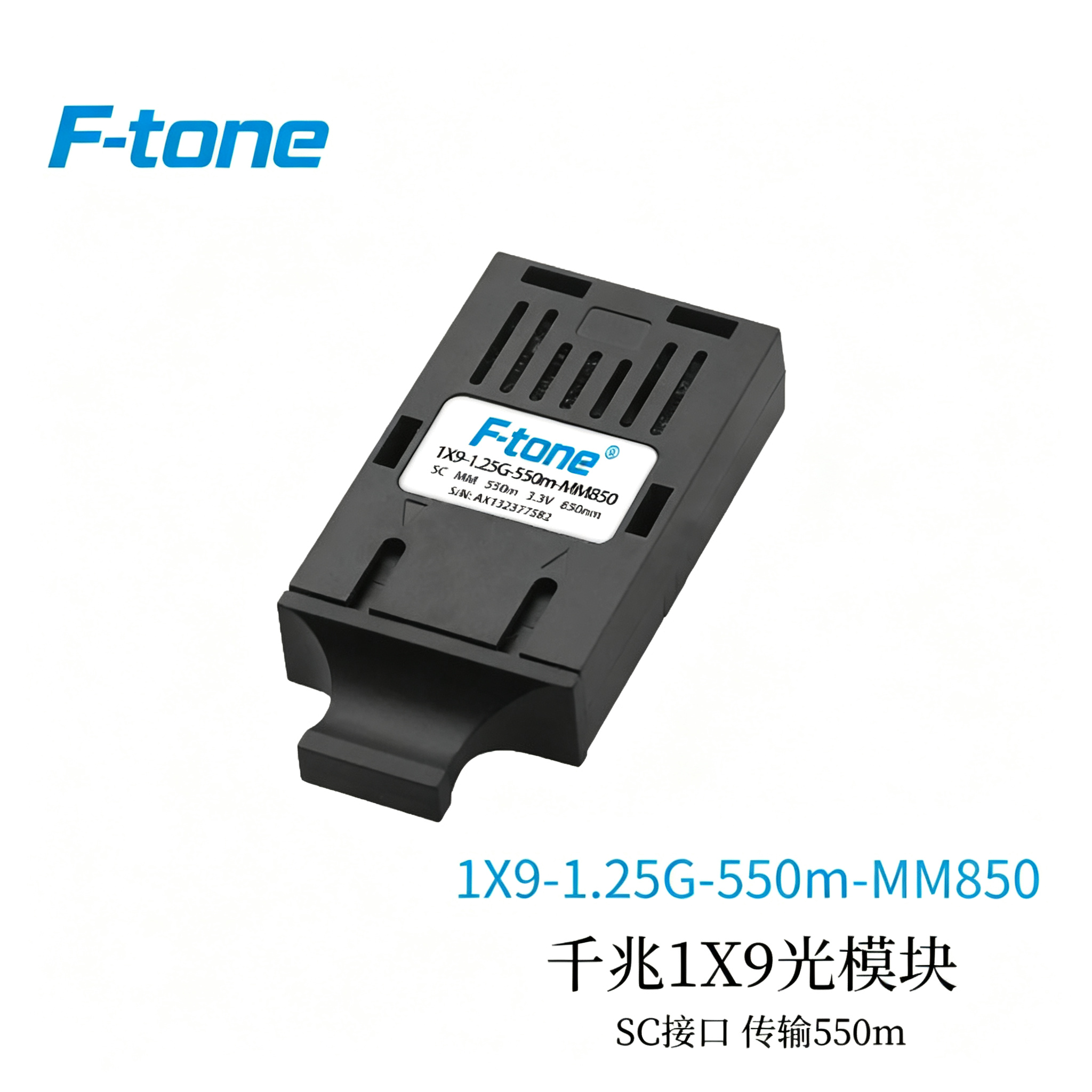

1 / 21.25G 1x9 FC Multimode Optical Transceiver, 550m–2km
F-tone Networks FT-1-25G-550M: 1.25G 1x9 FC multimode transceiver. 850 nm for 550 m or 1310 nm for 2 km, 3.3 V LVTTL/TTL interface, two temperature grades.
- 产品型号 Product Model
- 速率Data Rate | 接头类型Port | 单多模Fiber | 波长Wave(nm) | 传输距离Distance (KM) | 电压Voltage | 信号电平Signal Level | 温度Temp. (℃)
- FT-M2850–S*
- 1.25Gbps | SC | MM | MM 850nm | 550M | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃
- FT-M2130–S*
- 1.25Gbps | SC | MM | MM 1310nm | 2KM | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃
- FT-M2850–F*
- 1.25Gbps | FC | MM | MM 850nm | 550M | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃
- FT-M2130–F*
- 1.25Gbps | FC | MM | MM 1310nm | 2KM | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃
- FT-M2850–T*
- 1.25Gbps | ST | MM | MM 850nm | 550M | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃
Reference model FT-1-25G-550M in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| 产品型号 Product Model | 速率Data Rate | 接头类型Port | 单多模Fiber | 波长Wave(nm) | 传输距离Distance (KM) | 电压Voltage | 信号电平Signal Level | 温度Temp. (℃) |
|---|---|
| FT-M2850–S* | 1.25Gbps | SC | MM | MM 850nm | 550M | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃ |
| FT-M2130–S* | 1.25Gbps | SC | MM | MM 1310nm | 2KM | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃ |
| FT-M2850–F* | 1.25Gbps | FC | MM | MM 850nm | 550M | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃ |
| FT-M2130–F* | 1.25Gbps | FC | MM | MM 1310nm | 2KM | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃ |
| FT-M2850–T* | 1.25Gbps | ST | MM | MM 850nm | 550M | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃ |
| FT-M2130–T* | 1.25Gbps | ST | MM | MM 1310nm | 2KM | 3.3V | LVTTL/TTL | 0℃~70℃ / -40℃~85℃ |
| 1. 接地工业级:-40~105°C(**FC/ST) 2. 2.过EMC-CLASS A(金属屏蔽罩+屏蔽外壳) 3. 3.LVPECL电平需第四脚TTL电平 4. 4.定制高品质FC/ST接头光模块(见上图) 5. 5.双芯片5V光模块 需要以上光模块，可咨询厂家 | 1. Grounding industrialTemperature Range: -40°C to +105°C 2. EMC-CLASS A:Metallic shield and Plastic housing. 3.LVPECL-SD:LVTTL 4.Customizable FC/ST Metallized connector 5.5v Optical Modules For more information,please contactthe manufacturer! |
Product details
Overview
The FT-1-25G-550M is a 1.25 Gbps multimode transceiver in the 1x9 package, offering two reach options for short-haul links. With an 850 nm source it spans up to 550 meters, while the 1310 nm version extends to 2 km over multimode fiber. The threaded FC connector resists vibration and accidental disconnection in industrial cabinets and telecom racks. A 3.3 V supply and LVTTL/TTL signal interface match classic 1x9 host designs. Both commercial (0 to 70 ℃) and industrial (-40 to 85 ℃) grades are available, and the metal shield housing supports EMC Class A requirements.
Key Features
- 1.25 Gbps duplex transmission over multimode fiber
- Two reach options: 850 nm for up to 550 m, 1310 nm for up to 2 km
- Threaded FC connector, resistant to vibration in cabinets and racks
- 3.3 V supply with LVTTL/TTL signal interface
- Commercial (0 to 70 ℃) and industrial (-40 to 85 ℃) temperature grades
- Metal shield housing, EMC Class A design
Applications
- Gigabit Ethernet backbone and horizontal cabling
- Fiber Channel storage area network links
- Industrial control networks and legacy 1x9 equipment upgrades
Specifications
| Parameter | Value |
|---|---|
| Part Number | FT-1-25G-550M |
| Form Factor | 1x9 |
| Data Rate | 1.25 Gbps |
| Connector | FC |
| Fiber Type | Multimode (duplex) |
| Wavelength / Distance | 850 nm up to 550 m; 1310 nm up to 2 km |
| Supply Voltage | 3.3 V |
| Signal Level | LVTTL/TTL |
| Operating Temperature | 0 to 70 ℃ / -40 to 85 ℃ |
| EMI Shielding | Metal shield housing, EMC Class A |
