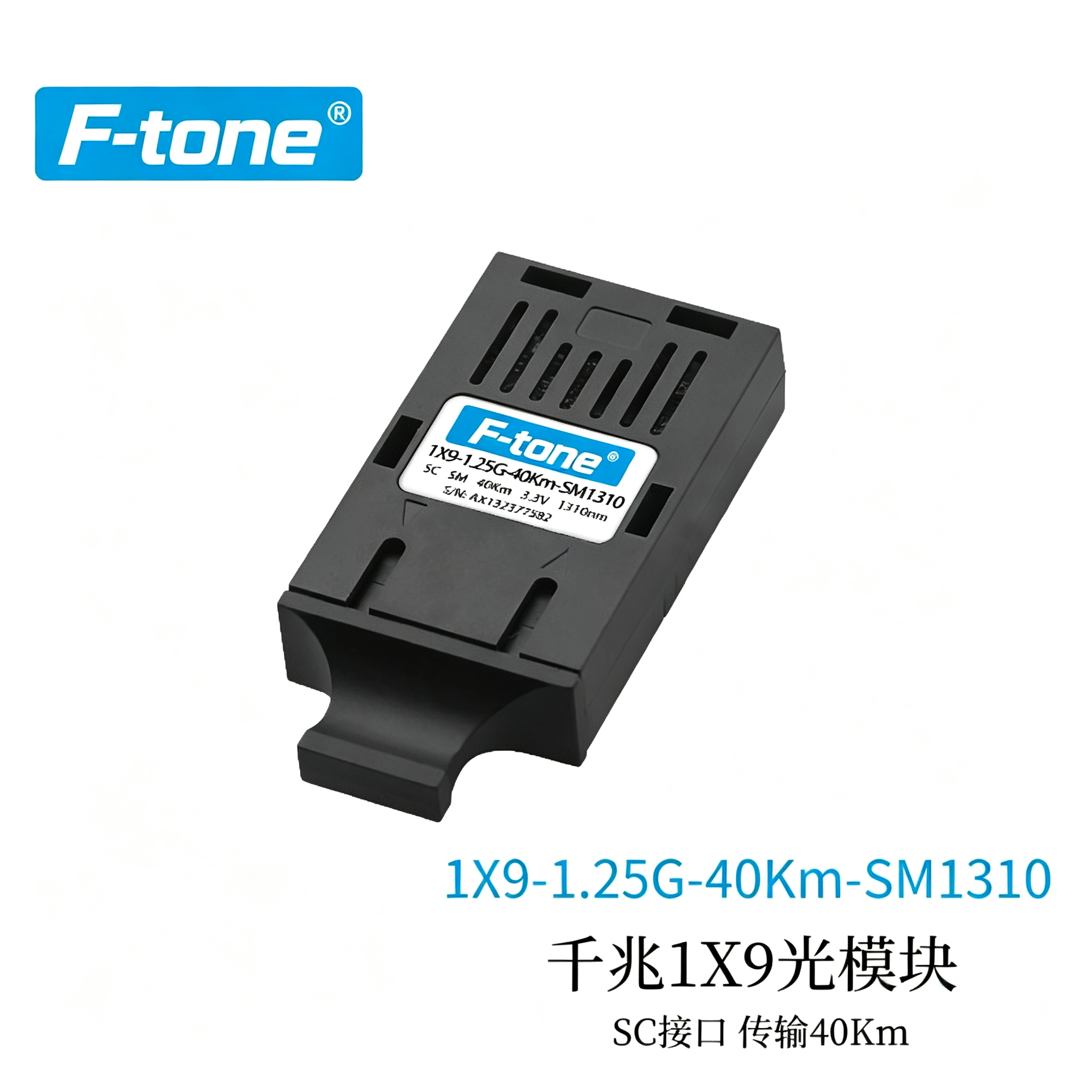

1 / 3MODEL · FT-1-25G-40KM
1.25G 1x9 FC Single-Mode Optical Transceiver, 40km
F-tone Networks FT-1-25G-40KM: 1.25G 1x9 FC single-mode transceiver, 1310 nm, 40 km reach. TX-only and RX-only versions for single-fiber links, 3.3 V LVPECL.
- 产品型号Product Model
- 速率Data Rate | 接头类型Port | 单多模Fiber | 波长Wave(nm) | 传输距离Distance (KM) | 电压Voltage | 信号电平Signal Level | 温度Temp. (℃)
- FT-S2132-**/R
- 1.25Gbps | SC/FC/ST | RX SM | SM 1310 | 20km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
- FT-S2134-**/R
- 1.25Gbps | SC/FC/ST | RX SM | SM 1310 | 40km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
- FT-S2136-**/R
- 1.25Gbps | SC/FC/ST | RX SM | SM 1310 | 60km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
- FT-S2158-**/R
- 1.25Gbps | SC/FC/ST | RX SM | SM 1550 | 80km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
- FT-S215X-**/R
- 1.25Gbps | SC/FC/ST | RX SM | SM 1550 | 100km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃
Reference model FT-1-25G-40KM in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| 产品型号Product Model | 速率Data Rate | 接头类型Port | 单多模Fiber | 波长Wave(nm) | 传输距离Distance (KM) | 电压Voltage | 信号电平Signal Level | 温度Temp. (℃) |
|---|---|
| FT-S2132-**/R | 1.25Gbps | SC/FC/ST | RX SM | SM 1310 | 20km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2134-**/R | 1.25Gbps | SC/FC/ST | RX SM | SM 1310 | 40km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2136-**/R | 1.25Gbps | SC/FC/ST | RX SM | SM 1310 | 60km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2158-**/R | 1.25Gbps | SC/FC/ST | RX SM | SM 1550 | 80km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S215X-**/R | 1.25Gbps | SC/FC/ST | RX SM | SM 1550 | 100km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| 1. 接地工业级:-40~105°C(**FC/ST) 2. 2.过EMC-CLASS A(金属屏蔽罩+屏蔽外壳) 3. 3.LVPECL电平需第四脚TTL电平 4. 4.定制高品质FC/ST接头光模块(见上图) 5. 5.双芯片5V光模块 需要以上光模块，可咨询厂家 | 1. Grounding industrialTemperature Range: -40°C to +105°C 2. EMC-CLASS A:Metallic shield and Plastic housing. 3.LVPECL-SD:LVTTL 4.Customizable FC/ST Metallized connector 5.5v Optical Modules For more information,please contactthe manufacturer! |
| FT-S2132-** | 1.25Gbps | SC/FC/ST | SM | SM 1310 | 20km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2134-** | 1.25Gbps | SC/FC/ST | SM | SM 1310 | 40km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S26136-** | 1.25Gbps | SC/FC/ST | SM | SM 1310 | 60km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2158-** | 1.25Gbps | SC/FC/ST | SM | SM 1550 | 80km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S215X-** | 1.25Gbps | SC/FC/ST | SM | SM 1550 | 100km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2132-**/T | 1.25Gbps | SC/FC/ST | TX SM | SM 1310 | 20km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2134-**/T | 1.25Gbps | SC/FC/ST | TX SM | SM 1310 | 40km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2136-**/T | 1.25Gbps | SC/FC/ST | TX SM | SM 1310 | 60km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S2158-**/T | 1.25Gbps | SC/FC/ST | TX SM | SM 1550 | 80km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
| FT-S215X-**/T | 1.25Gbps | SC/FC/ST | TX SM | SM 1550 | 100km | 3.3V | LVPECL | 0℃~70℃ / -40℃~85℃ |
Overview
Product details
Overview
The FT-1-25G-40KM is a 1.25 Gbps single-mode 1x9 transceiver reaching 40 km at 1310 nm, built for single-fiber links where only one strand is available. It is offered as transmitter-only (/T) and receiver-only (/R) versions, so a matched pair forms a full duplex connection over a single fiber without a second strand. The threaded FC connector holds firm under vibration in telecom cabinets and outdoor enclosures. Powered from 3.3 V with an LVPECL interface, the module supports commercial (0 to 70 ℃) and industrial (-40 to 85 ℃) temperature grades.
Key Features
- 1.25 Gbps single-mode transmission, 40 km reach at 1310 nm
- Threaded FC connector for a secure, vibration-resistant mate
- Transmitter-only (/T) and receiver-only (/R) versions for single-fiber simplex links
- 3.3 V supply with LVPECL signal interface
- Commercial (0 to 70 ℃) and industrial (-40 to 85 ℃) temperature grades
- Metal shield housing, EMC Class A design
Applications
- Single-fiber telecom access and aggregation links
- Metro edge point-to-point connections
- Route upgrades where fiber count is limited
Specifications
| Parameter | Value |
|---|---|
| Part Number | FT-1-25G-40KM |
| Form Factor | 1x9 |
| Data Rate | 1.25 Gbps |
| Connector | FC |
| Fiber Type | Single-mode (simplex, single fiber) |
| Wavelength | 1310 nm |
| Transmission Distance | 40 km |
| Variants | FT-S2134-**/T transmitter-only; FT-S2134-**/R receiver-only |
| Supply Voltage | 3.3 V |
| Signal Level | LVPECL |
| Operating Temperature | 0 to 70 ℃ / -40 to 85 ℃ |
| EMI Shielding | Metal shield housing, EMC Class A |
