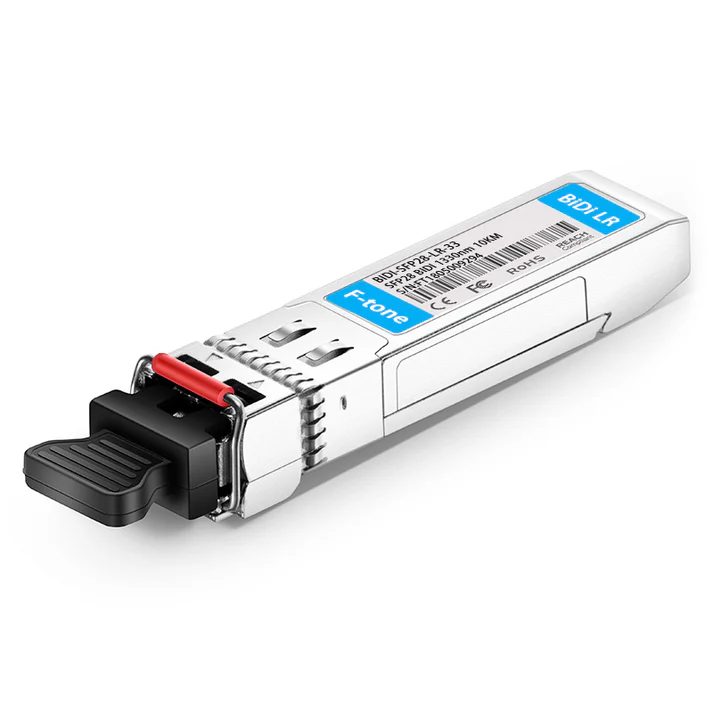

10G BiDi SFP+ 1330/1270nm 10km Transceiver

Order this unit for the second end of a 10km single-strand SFP+ path. It is the 1330/1270nm partner to the 1270/1330nm model, so the two transmit on opposite wavelengths and never collide. Launch power sits between -2 and +3dBm, and the photodiode copes with input as weak as -13dBm. Connection is LC, rates are flexible, and temperature grade can be commercial, industrial or military.

Key Features

• 1330/1270nm direction of the BiDi pair
• 10km on single-mode fiber
• -2 to +3dBm output, -13dBm sensitivity
• DFB/PIN, LC connector
• Multi-rate support

Applications

• Customer-side end of single-fiber 10G links
• Cell site and small-cell backhaul
• Campus links that reuse one fiber strand

Specifications
