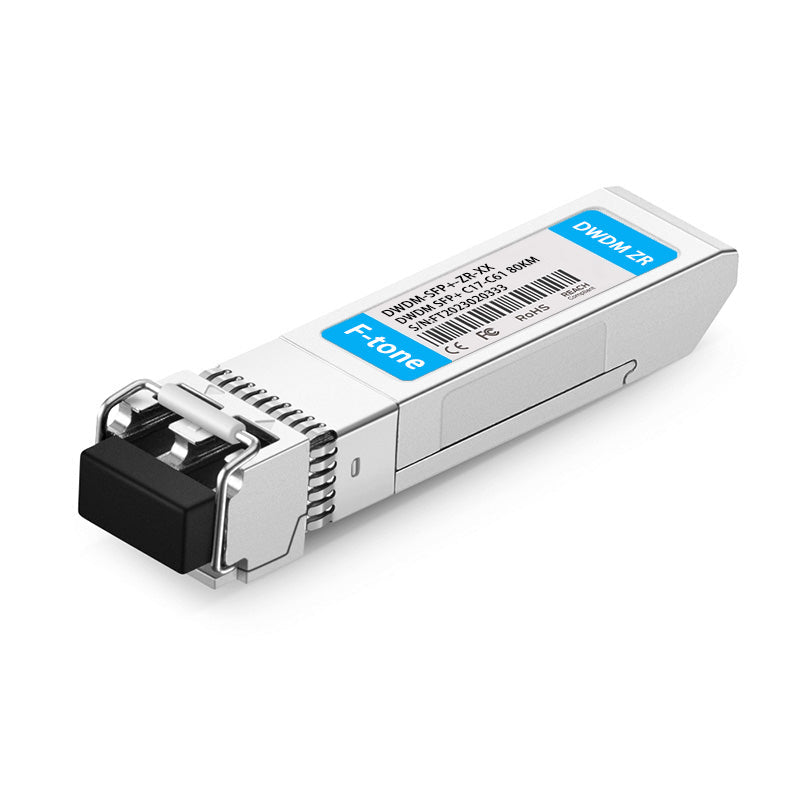

10Gb/s 80km DWDM Tunable SFP Transceiver

Overview

The FT-PART-NUMBER-TSPLXG80D-T50-ASCII is a 10 Gb/s tunable DWDM transceiver in standard SFP footprint. Instead of stocking a fixed-wavelength module for every channel, one unit tunes across the C-band on the 100 GHz ITU grid (channels 19.5 to 60), which collapses spares inventory for metro and access DWDM deployments. It pushes 80 km of single-mode reach with 0 to +5 dBm launch power, and the receiver holds -23 dBm sensitivity against -7 dBm overload. Full digital diagnostics report temperature, voltage, laser bias and optical power, while TX_DISABLE, TX_FAULT and LOS signaling follow SFP MSA behavior. Laser safety is Class 1, and EMI meets FCC Part 15 Class B.

Key Features

• Tunable C-band DWDM, 100 GHz ITU grid (channels 19.5 to 60), 10 Gb/s in SFP footprint
• 80 km reach over single-mode fiber via duplex LC receptacle
• Optical budget: TX 0 to +5 dBm with 6 dB extinction ratio; RX sensitivity -23 dBm, overload -7 dBm
• Digital diagnostics for temperature, voltage, laser bias, TX/RX optical power
• TX_DISABLE, TX_FAULT and LOS signaling with 2-wire serial interface per SFP MSA
• 3.3 V supply, about 1.5 W; 0 to +70 C case; Class 1 laser safety, FCC Part 15 Class B EMI

Applications

• Metro DWDM networks needing wavelength agility
• Spares consolidation for carrier networks
• Reconfigurable access aggregation
• 10G transport over existing fiber plant

Specifications
