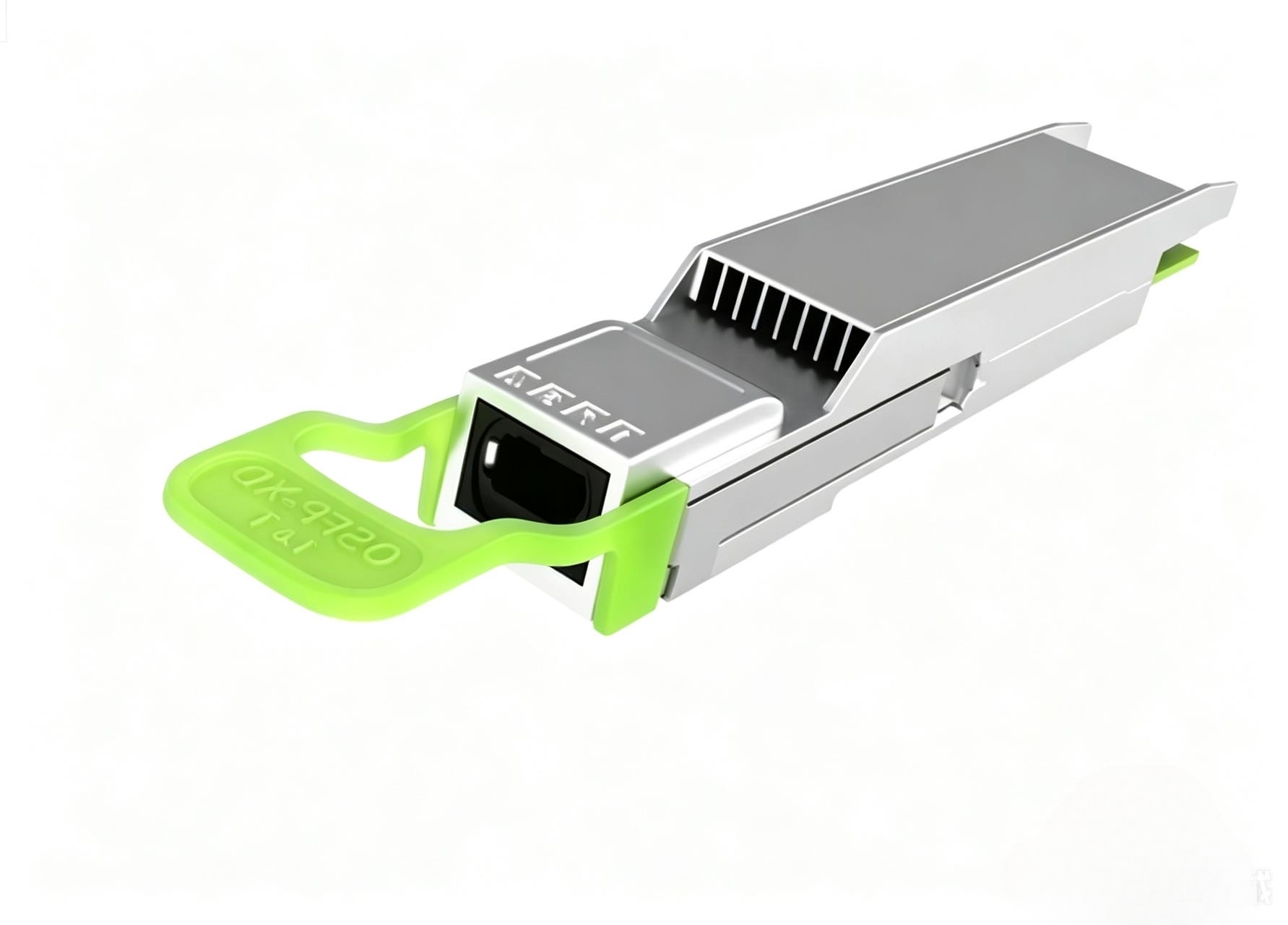

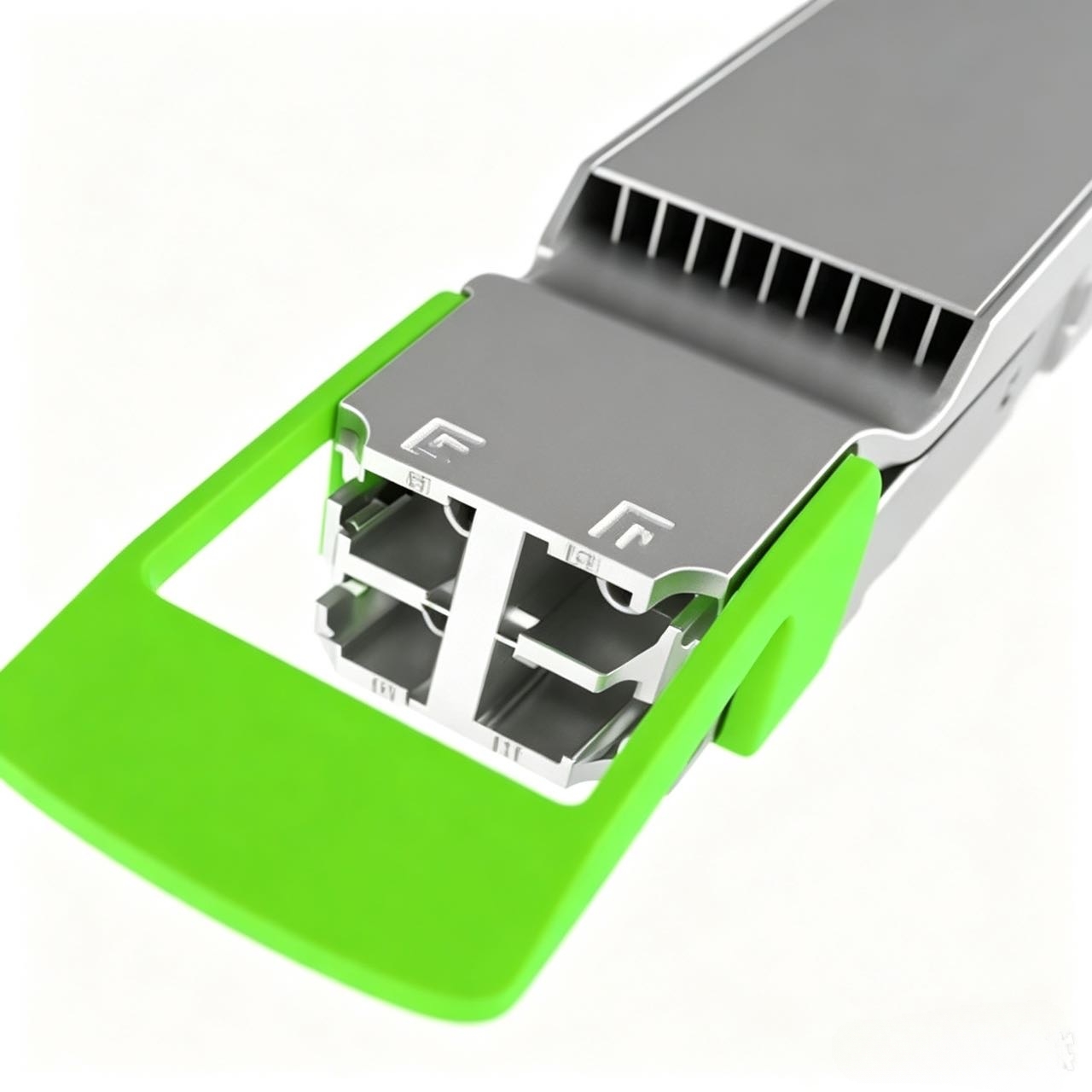

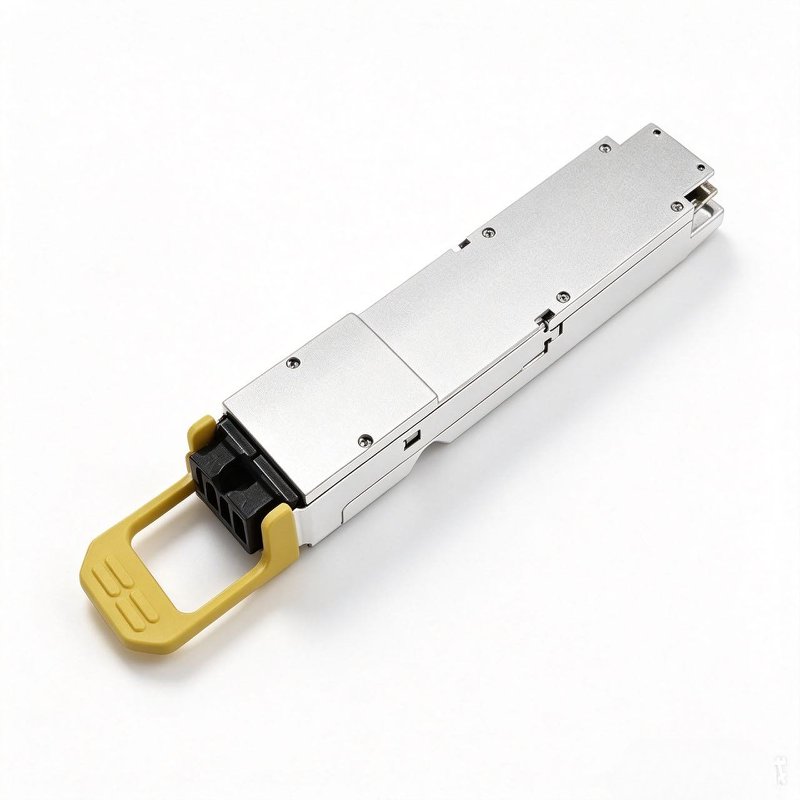

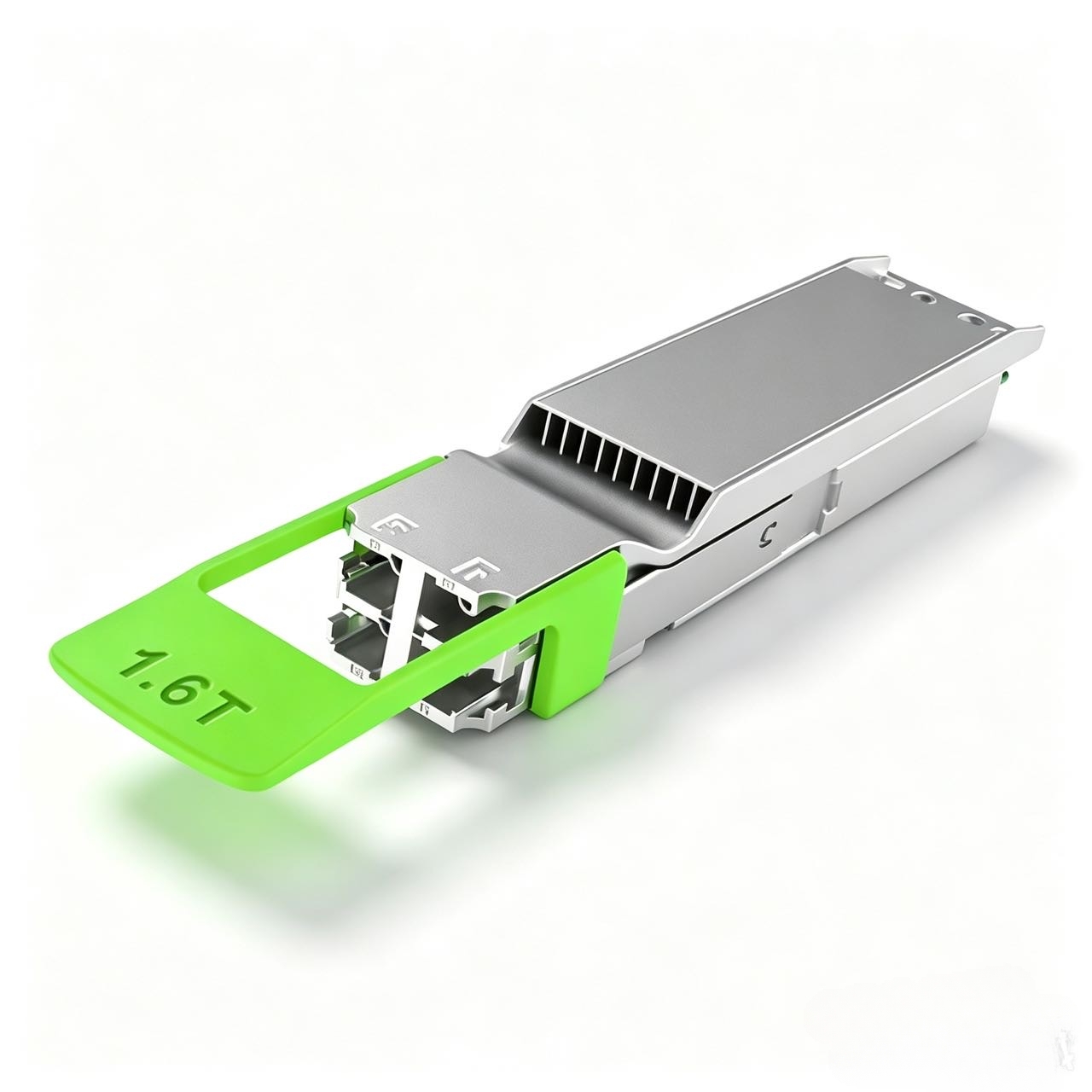

FT-OSFP-1-6T-DR8D 1.6T OSFP DR8 Digital Coherent Optical Transceiver

The FT-OSFP-1-6T-DR8D is a 1.6T OSFP digital coherent optical module built on silicon photonics with PIN receivers. It delivers 1.6 Tb/s over eight 200G PAM4 lanes at 1310 nm, reaching up to 500 m on single-mode fiber. The DR8 optical architecture uses dual MPO-12 connectors to carry the eight parallel 200G lanes. With transmit power from -3.3 to 4 dBm and receive sensitivity of -3.4 dBm, the module offers a comfortable link budget for short-reach coherent applications. Digital diagnostics (DDM/DOM) support real-time monitoring of operating parameters. Both commercial (0 to 70 °C) and industrial (-40 to 85 °C) temperature grades are available to match deployment environments.

Key Features

• 1.6T (8x200G PAM4) data rate at 1310 nm
• Silicon photonics platform with PIN receivers (SiPh+PIN)
• Transmit range -3.3 to 4 dBm; receive sensitivity -3.4 dBm
• Dual MPO-12 connectors (MPO-16), 500 m reach on single-mode fiber
• Power consumption ≤20W with DDM/DOM diagnostics
• Commercial 0~70 °C and industrial -40~85 °C temperature grades selectable

Applications

• Data center 1.6T short-reach coherent interconnects
• Hyperscale 800G/1.6T fabric expansion
• AI compute cluster optical links

Specifications
