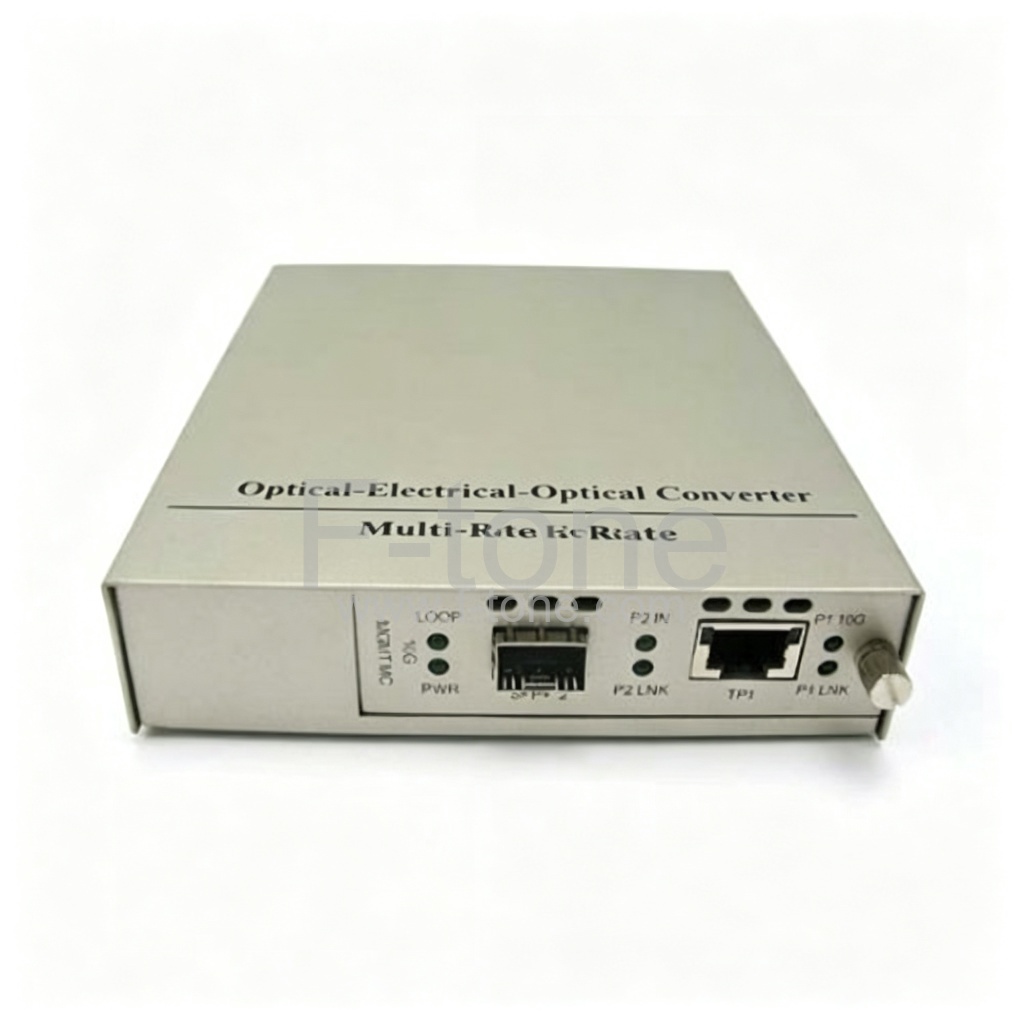

1 / 2MODEL · FT-SFPPLUS-10G-7
10GBASE-T to SFP+ Managed Media Converter Card
F-tone Networks 10GBASE-T to SFP+ media converter, centralized management: 10Gb/s, Cat6a copper to 100m, SFP+ fiber to 80km, DMI readout, remote card status.
- Transmission Speed
- 10Gb/s
- Protocols
- IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR)
- Access Type
- 10G LAN
- SFP+ module
- Up to 80Km
- 10Gbase-T
- 100meters Cat .6a cable
- Functions
- SFP+ fiber module detection; SFP+ fiber module DMI function (Temperature, Voltage, Optical power); Link status detector; Enable/Disabled Loopback test function; UTP cable length detection (only RJ45 interface); Remote card's status monitor (only in pairs)
Reference model FT-SFPPLUS-10G-7 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Transmission Speed | 10Gb/s |
|---|---|
| Protocols | IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR) |
| Access Type | 10G LAN |
| SFP+ module | Up to 80Km |
| 10Gbase-T | 100meters Cat .6a cable |
| Functions | SFP+ fiber module detection; SFP+ fiber module DMI function (Temperature, Voltage, Optical power); Link status detector; Enable/Disabled Loopback test function; UTP cable length detection (only RJ45 interface); Remote card's status monitor (only in pairs) |
| Power (Standalone) | AC 220V OR DC -48V |
| Power (Rack-mountable) | AC 85 ～ 220V OR DC -48V |
| Operating Temp | 0~ 50 ℃ |
| Storage Temp | -10~ 70 ℃ |
| Dimensions (Card) | 11.5mm (W) × 78mm (D) |
| Dimensions (Standalone) | 156mm (W) × 128mm (D) × 32mm (H) |
| Interface Type | RJ45 To/From SFP+ |
| Maximum Packet | 14,880,950/S |
| LED P1 10G | Green, on: TP 10G |
| LED P1 LNK | Green, on: TP link connected |
| LED P2 IN | Green, on: SFP+2 or XFP2 module inserted |
| LED P2 LNK | Green, on: SFP+2 or XFP2 connected normally |
| LED LOOP | Green, on: loopback is on |
| LED PWR | Green, on: power is on |
Overview
Product details

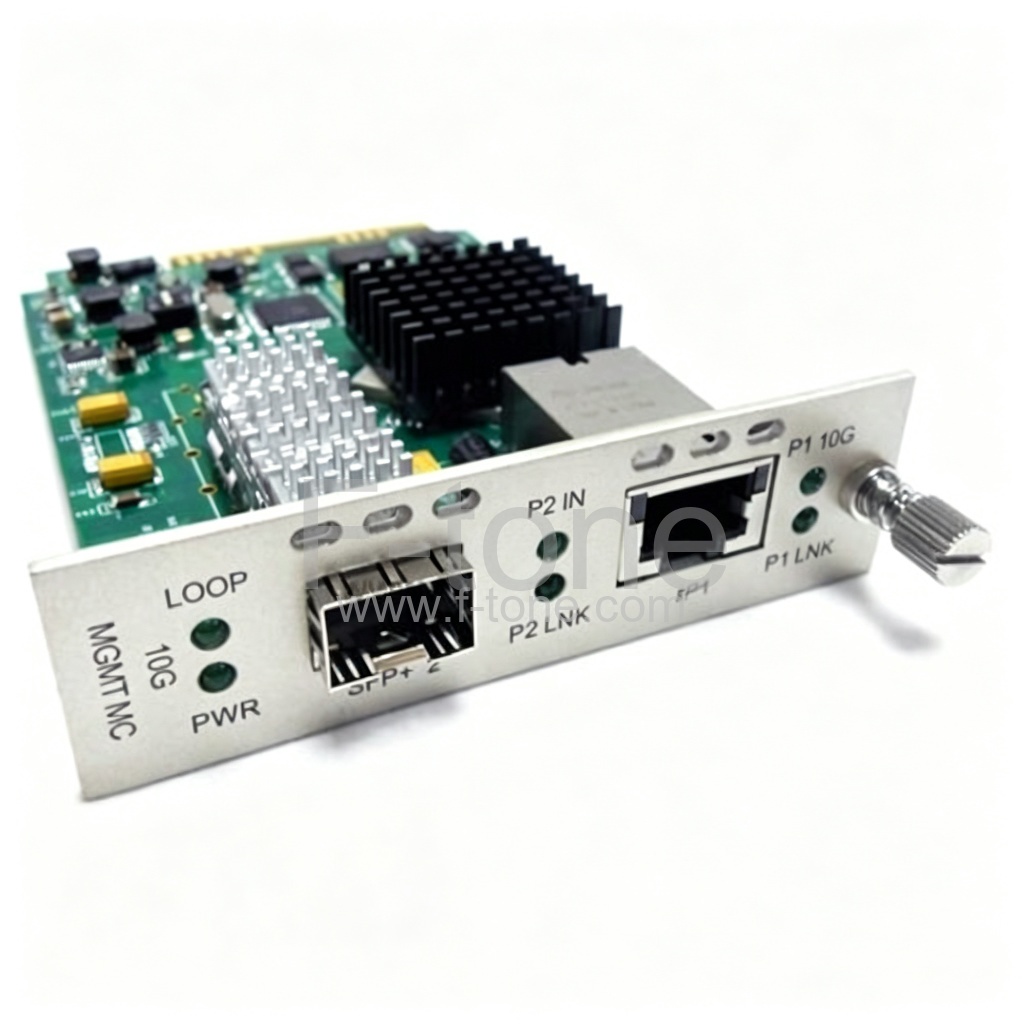

A centrally managed 10G converter that pairs an RJ45 10GBASE-T port with an SFP+ fiber slot. Copper reach is 100 meters on Cat6a and fiber reach goes up to 80km depending on the module. It reads SFP+ diagnostics, detects link state and copper cable length, supports loopback tests and, when used in pairs, can monitor the status of the remote card. Its LEDs report copper link and speed, module insertion and link, loopback and power.
Key Features
- RJ45 to SFP+ at 10Gb/s
- Cat6a copper to 100m; fiber to 80km with a suitable module
- SFP+ diagnostic readout
- Remote card status monitoring when used in pairs
- Loopback and cable length detection
- Card 11.5 x 78mm or standalone 156 x 128 x 32mm
Applications
- Managed converter chassis at aggregation points
- Monitored copper-to-fiber links for operators
- Enterprise backbone extensions
Specifications
| Parameter | Value |
|---|---|
| Transmission Speed | 10Gb/s |
| Protocols | IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR) |
| Access Type | 10G LAN |
| SFP+ module | Up to 80Km |
| 10Gbase-T | 100meters Cat .6a cable |
| Functions | SFP+ fiber module detection; SFP+ fiber module DMI function (Temperature, Voltage, Optical power); Link status detector; Enable/Disabled Loopback test function; UTP cable length detection (only RJ45 interface); Remote card's status monitor (only in pairs) |
| Power (Standalone) | AC 220V OR DC -48V |
| Power (Rack-mountable) | AC 85 ～ 220V OR DC -48V |
| Operating Temp | 0~ 50 ℃ |
| Storage Temp | -10~ 70 ℃ |
| Dimensions (Card) | 11.5mm (W) × 78mm (D) |
| Dimensions (Standalone) | 156mm (W) × 128mm (D) × 32mm (H) |
| Interface Type | RJ45 To/From SFP+ |
| Maximum Packet | 14,880,950/S |
| LED P1 10G | Green, on: TP 10G |
| LED P1 LNK | Green, on: TP link connected |
| LED P2 IN | Green, on: SFP+2 or XFP2 module inserted |
| LED P2 LNK | Green, on: SFP+2 or XFP2 connected normally |
| LED LOOP | Green, on: loopback is on |
| LED PWR | Green, on: power is on |
