FT-100668 10/100/1000Base-TX to 1000Base-LX BIDI Gigabit Media Converter 20km

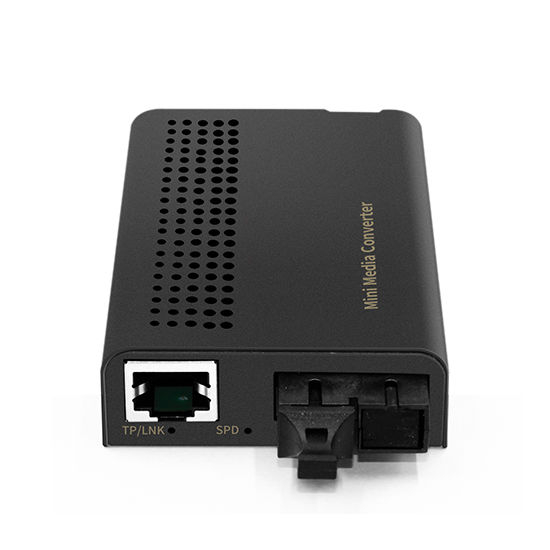

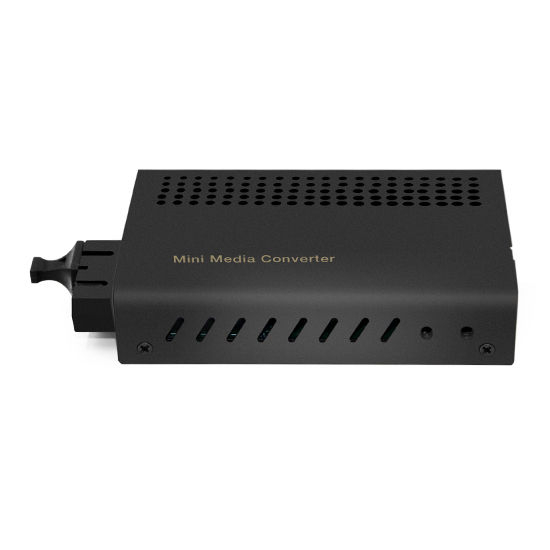

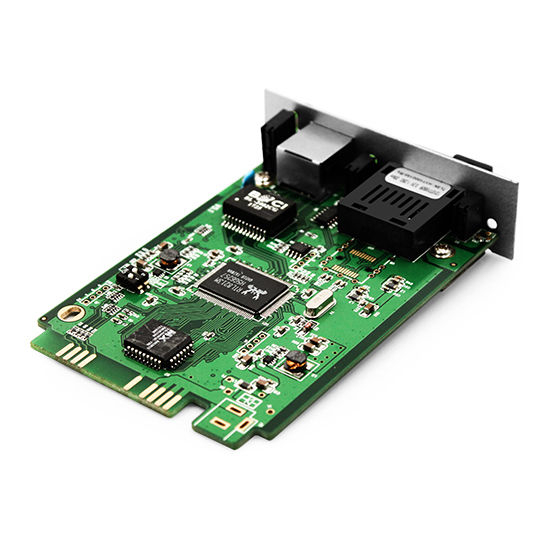

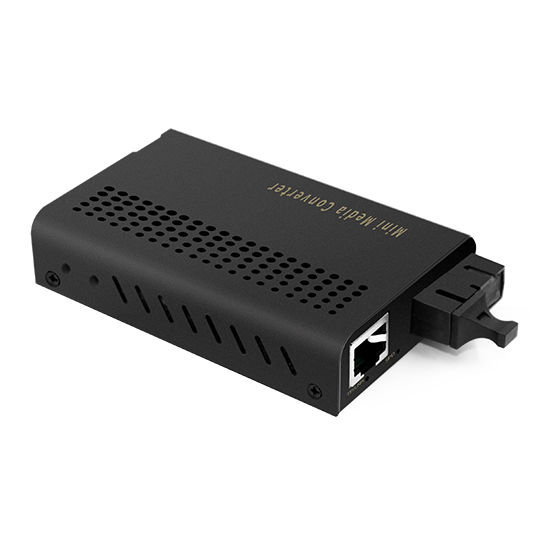

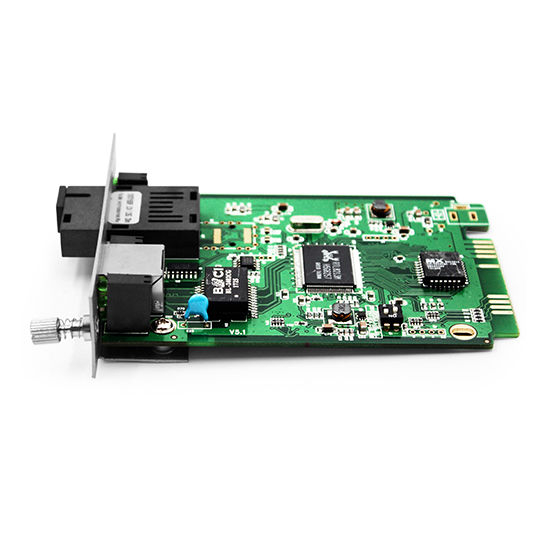

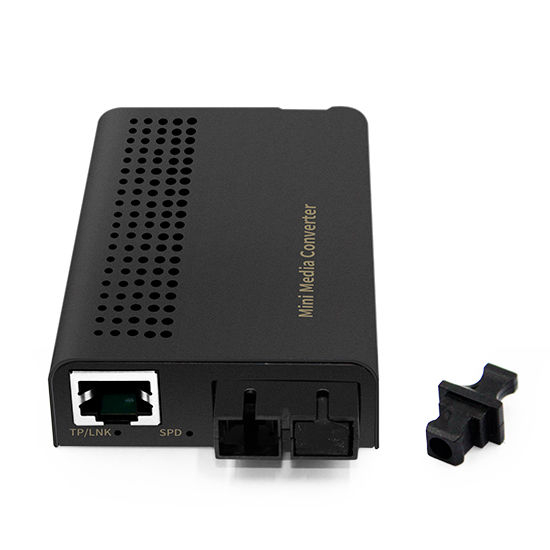

The FT-100668 is a single-fiber bidirectional (BIDI) gigabit media converter for 20 km single-mode spans. It transmits at 1310 nm and receives at 1550 nm over a single SC strand, halving the fiber count needed for long campus or access links. The card-format converter measures 112.8 x 77.2 x 23 mm and provides two 1000Base-X SC ports plus a 10/100/1000M RJ45 port. The copper side negotiates 10/100/1000 Mbps while the fiber side runs 1000M full duplex. Power draw stays below 3 W from a built-in 5–12 V DC supply, and MTBF exceeds 50,000 hours. The unit complies with IEEE 802.3, 802.3u and 802.3z, with commercial, industrial and military temperature grades available as options.

Key Features

• Single-fiber BIDI design: TX 1310 nm / RX 1550 nm over SC connectors
• 20 km reach on single-mode 9/125 µm fiber
• Two 1000Base-X SC ports plus one 10/100/1000M RJ45 port
• 10/100/1000 Mbps access mode; 1000M full-duplex fiber operation

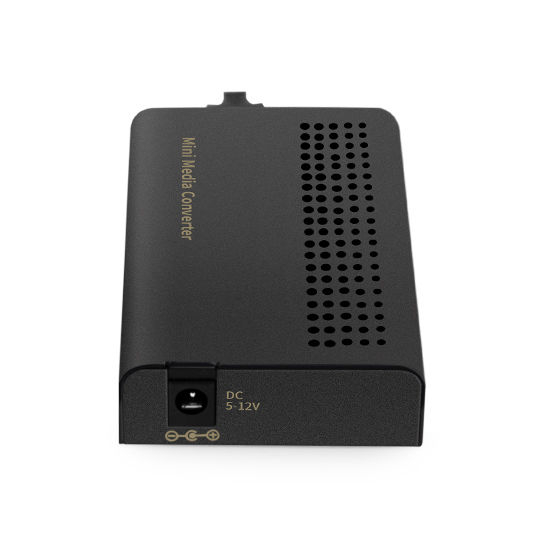

• Power consumption below 3 W; 5–12 V DC input with built-in supply
• IEEE 802.3 / 802.3u / 802.3z compliant; MTBF above 50,000 hours

Applications

• Long-distance campus and metro access fiber links
• Telecom last-mile and point-to-point backhaul
• Industrial parks and inter-building connectivity

Specifications
