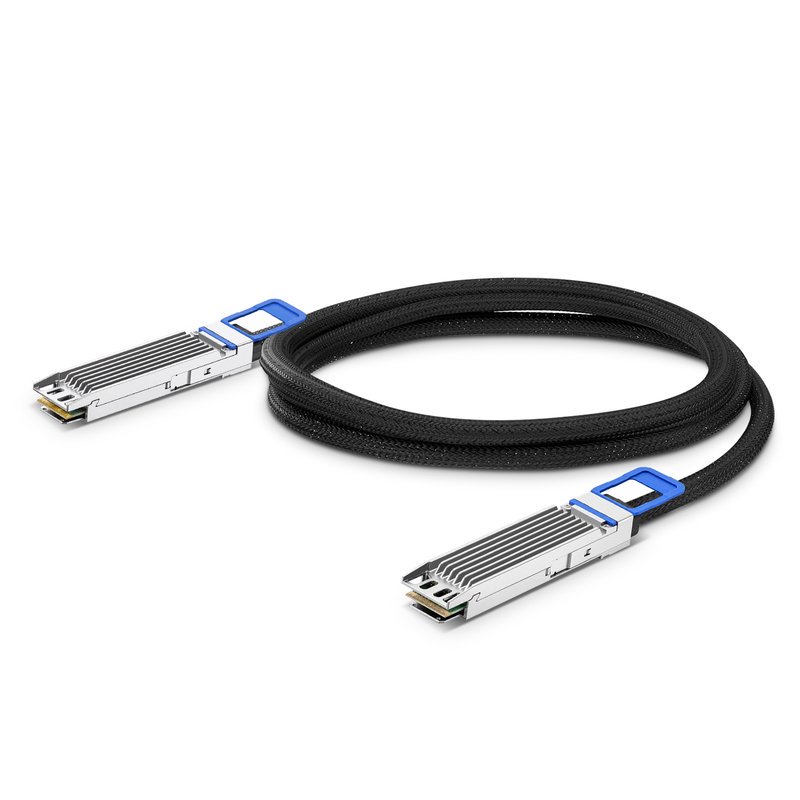

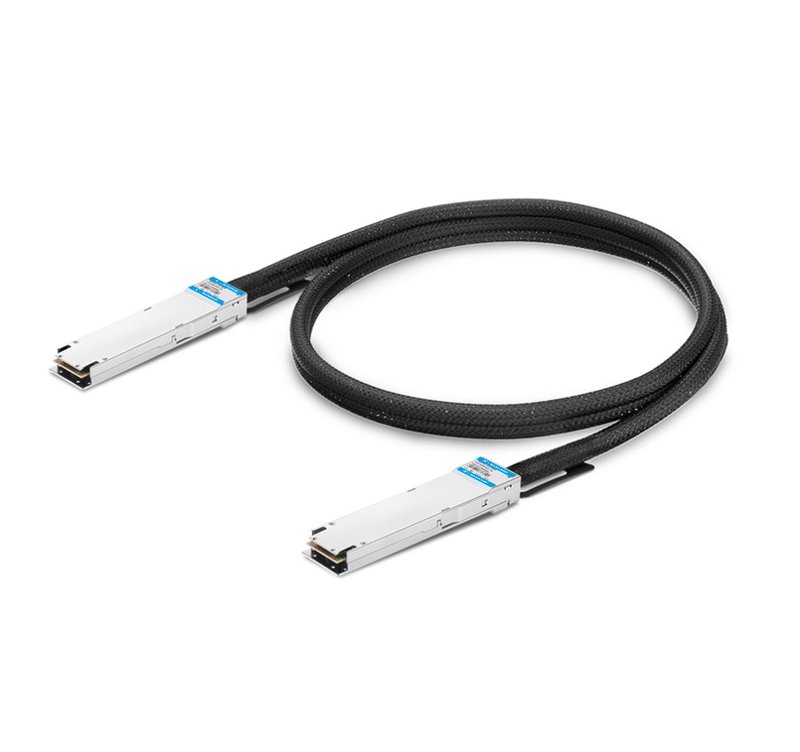

FT-OSFP-1600G-1M 1.6T OSFP224 8x200G PAM4 Passive DAC Cable 1m

The FT-OSFP-1600G-1M is a 1-meter passive direct attach copper (DAC) cable terminated with OSFP224 connectors on both ends. It carries eight 200G PAM4 lanes for a full 1.6T aggregate rate between adjacent switches and servers. As a passive copper assembly it draws no additional power, making it the lowest-cost, lowest-latency option for short-reach 1.6T interconnects inside the rack. DDM/DOM diagnostic support is provided for link monitoring. Commercial (0 to 70 °C) and industrial (-40 to 85 °C) temperature grades can be selected to match the operating environment.

Key Features

• 1.6T (8x200G PAM4) over passive copper twinax
• OSFP224 to OSFP224 connectors, 1 m (3 ft) length
• Zero power consumption (passive assembly)
• DDM/DOM diagnostics supported
• Commercial 0~70 °C / industrial -40~85 °C grades selectable

Applications

• 1.6T top-of-rack server to switch interconnects
• In-rack AI/GPU cluster cabling
• Data center short-reach spine-leaf links

Specifications
