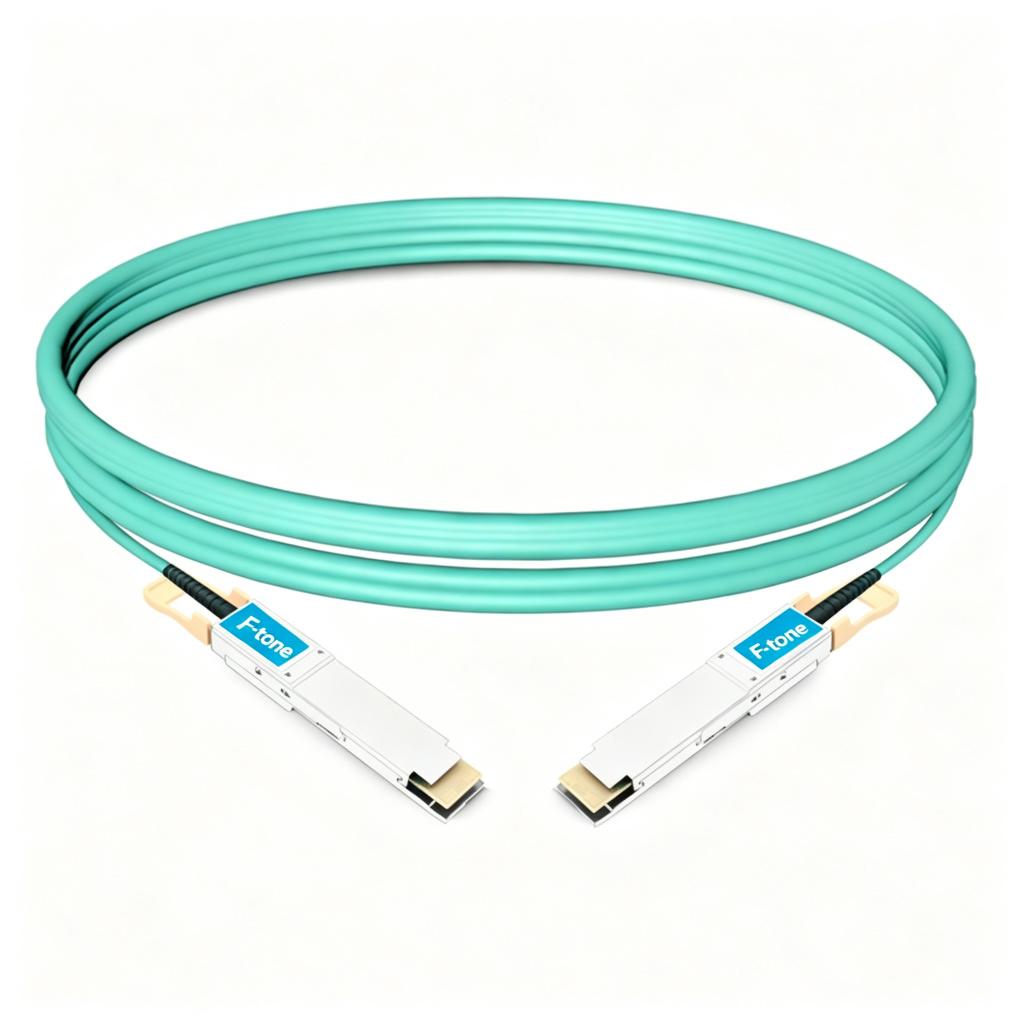

1 / 610m 800G QSFP-DD Straight AOC, Mellanox Compatible
F-tone Networks 10m (33ft) Mellanox-compatible 800G QSFP-DD AOC, 850Gb/s PAM4, 850nm VCSEL, <15W per end, CMIS 5.2. Request a quote from Betty or Una.
- Arista兼容型号
- A-D800-D800-10M
- Manufacturer
- F-tone
- Form Factor
- QSFP-DD
- Data Rate
- 850Gb/s
- Wavelength
- 850nm
- Cable Length
- 10m (33ft)
Reference model FT-A-D800-D800-10M in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| Arista兼容型号 | A-D800-D800-10M |
|---|---|
| Manufacturer | F-tone |
| Form Factor | QSFP-DD |
| Data Rate | 850Gb/s |
| Wavelength | 850nm |
| Cable Length | 10m (33ft) |
| 调制技术 | PAM4 |
| 设备要求 | FEC |
| Number of Lanes | 53.125 ± 100ppm |
| 电压 | 3.3V |
| Cable Type | 多模(MMF) |
| DDM/DDOM | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| 最大功耗 | <15.0W Each End |
| Protocol | Compliant QSFP-DD MSA, CMIS 5.2 |
| 应用 | Ethernet for 800GBASE-SR8 |
| Part Number | QSFP-DD-800G-AOC-10M |
| F-tone P/N | QSFP-DD-800G-AOC-10M |
| Modulation Format | PAM4 |
| Protocols | Compliant QSFP-DD MSA, CMIS 5.2 |
| Connector Type | QSFP-DD to QSFP-DD |
| Mini. Bend Radius | 30mm |
| Transmitter | VCSEL |
| DDM/DOM | Support |
| Modulation | PAM4 |
Product details
Straight QSFP-DD active optics aimed at 800GBASE-SR8 Ethernet cover 10m (33ft) of MMF. Aggregate rate is listed at 850 Gb/s; 850 nm VCSEL into PIN with PAM4 and FEC; DDM yes. Each end stays under 15 W, case 0–70 C, bend 30 mm. QSFP-DD MSA and CMIS 5.2 apply. Arista-compatible and F-tone part numbers appear under Ordering References.
Key Features
- Matched QSFP-DD ends
- 850 Gb/s PAM4 for 800GBASE-SR8
- 850 nm VCSEL over MMF
- Under 15 W per end
- 10m (33ft); CMIS 5.2 / QSFP-DD MSA
Applications
- 800GBASE-SR8 short-reach Ethernet
- QSFP-DD multimode interconnects
Specifications
| Parameter | Value |
|---|---|
| Form Factor | QSFP-DD |
| Data Rate | 850Gb/s |
| Wavelength | 850nm |
| Cable Length | 10m (33ft) |
| Modulation | PAM4 |
| Equipment Requirement | FEC |
| Voltage | 3.3V |
| Cable Type | Multimode (MMF) |
| DDM/DDOM | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| Max Power Consumption | <15.0W Each End |
| Protocol | Compliant QSFP-DD MSA, CMIS 5.2 |
| Application | Ethernet for 800GBASE-SR8 |
| Modulation Format | PAM4 |
| Protocols | Compliant QSFP-DD MSA, CMIS 5.2 |
| Connector Type | QSFP-DD to QSFP-DD |
| Min. Bend Radius | 30mm |
| Transmitter | VCSEL |
| DDM/DOM | Support |
| Compatible Brands | Adva / Arista / Nec |
Ordering References
Model and part numbers for ordering reference:
| Reference | Description |
|---|---|
| A-D800-D800-10M | Arista compatible model |
| QSFP-DD-800G-AOC-10M | F-tone part number |
| QSFP-DD-800G-AOC-10M | F-tone part number (alt listing) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
