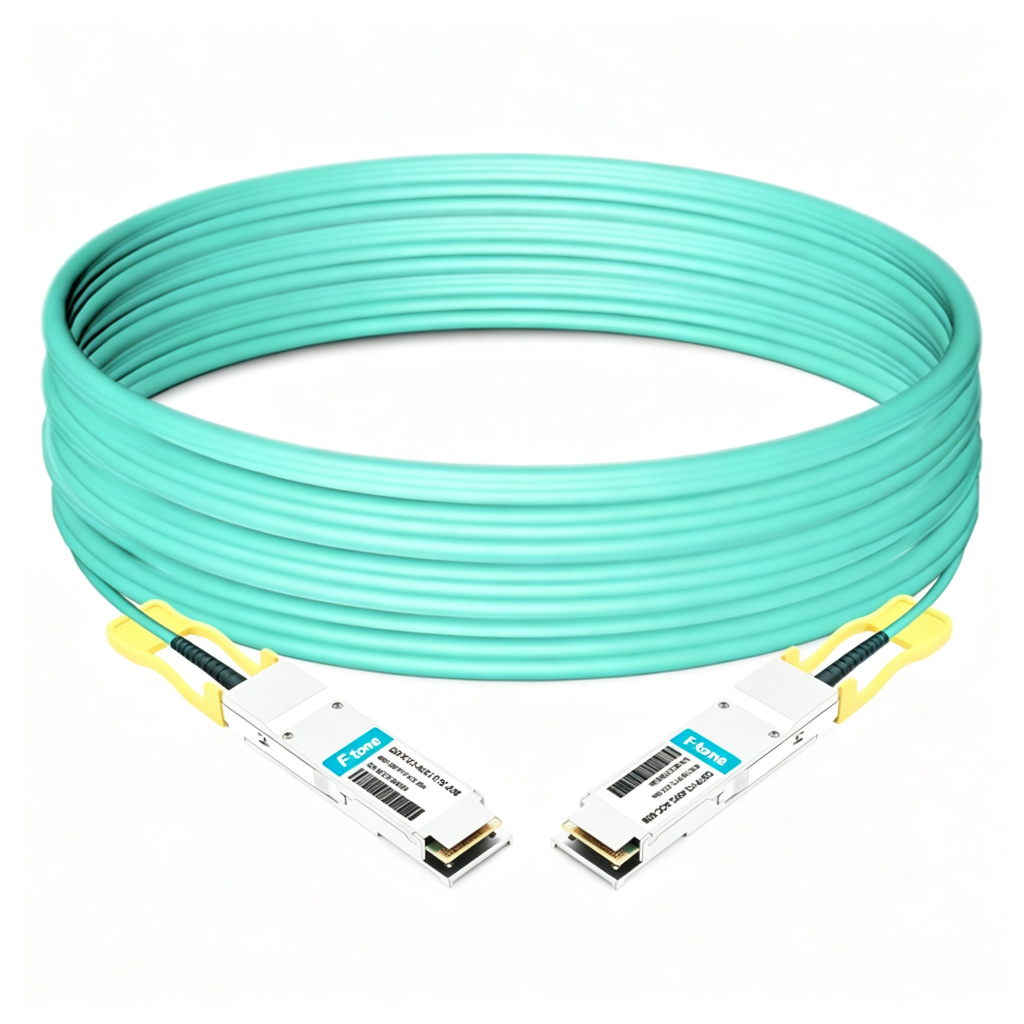

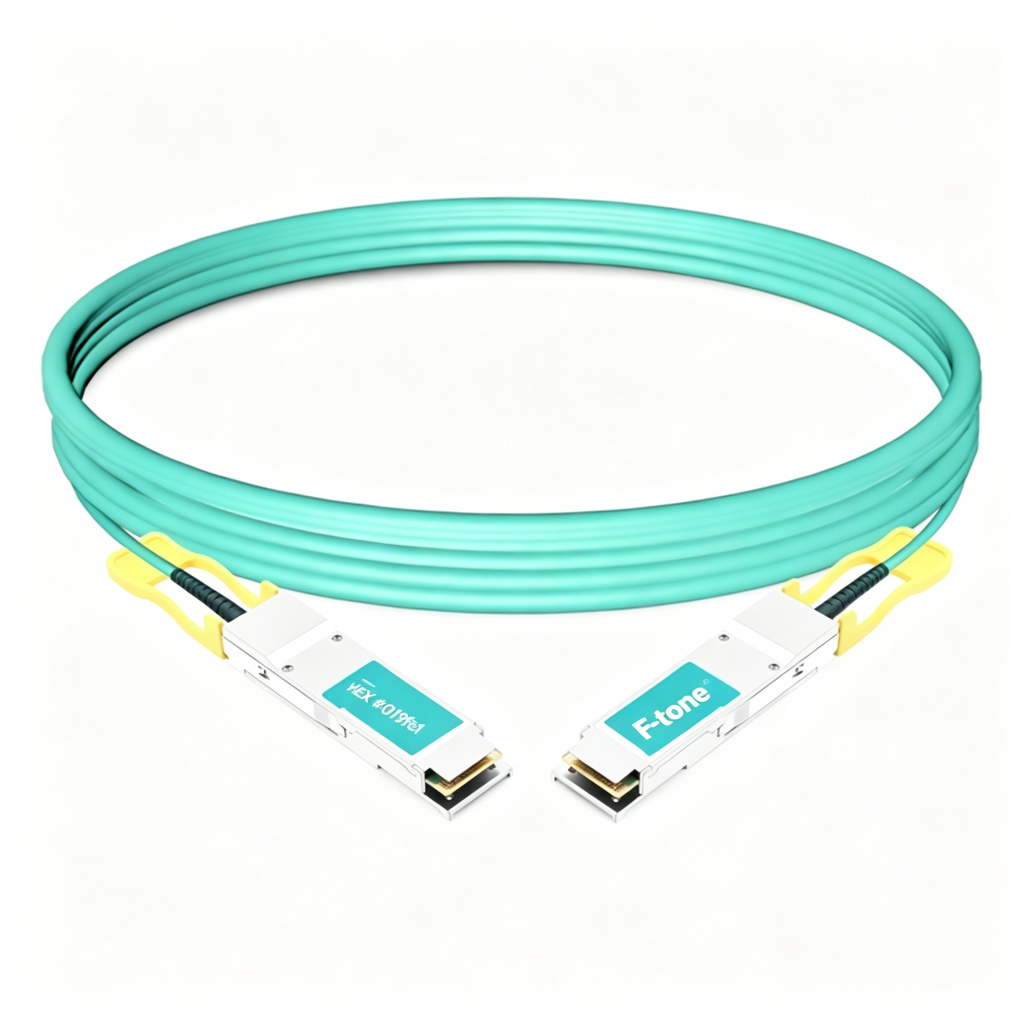

1 / 510m 400G QSFP112 Straight Active Optical Cable
F-tone Networks 10m (33ft) 400G QSFP112 AOC, 425Gb/s PAM4, 850nm VCSEL, eight 50G lanes, <8W per end, IEEE 802.3db/ck. Contact Betty or Una for pricing.
- Part Number
- QSFP-DD-400G-AOC-10M
- Manufacturer
- F-tone
- Form Factor
- QSFP112
- Data Rate
- 425Gb/s
- Wavelength
- 850nm
- Cable Length
- 10m (33ft)
Reference model FT-QSFP112-400G-AOC-10M in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| Part Number | QSFP-DD-400G-AOC-10M |
|---|---|
| Manufacturer | F-tone |
| Form Factor | QSFP112 |
| Data Rate | 425Gb/s |
| Wavelength | 850nm |
| Cable Length | 10m (33ft) |
| 调制技术 | PAM4 |
| 设备要求 | FEC |
| Number of Lanes | 8 TX and 8 RX (50G) |
| 电压 | 3.3V |
| Cable Type | 多模(MMF) |
| DDM/DDOM | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| 最大功耗 | <8.0W Each End |
| Protocol | QSFP112 MSA Rev2.1.1 and IEEE 802.3db, IEEE 802.3ck |
| 应用 | 400G Ethernet and 200G Ethernet |
| F-tone P/N | QSFP-DD-400G-AOC-10M |
| Modulation Format | PAM4 |
| Protocols | QSFP112 MSA Rev2.1.1 and IEEE 802.3db, IEEE 802.3ck |
| Connector Type | QSFP112 to QSFP112 |
| Power Consumption | ＜8W |
Product details
Point-to-point 400G QSFP112 active optics cover 10m (33ft) of multimode. Aggregate throughput is listed at 425 Gb/s across eight 50G PAM4 lanes each direction, 850 nm VCSEL into PIN, FEC required, DDM enabled. Each end draws under 8 W at 3.3 V with a 0–70 C case window. QSFP112 MSA Rev 2.1.1 plus IEEE 802.3db/802.3ck address 400G and 200G Ethernet use.
Key Features
- Matched QSFP112 ends
- 425 Gb/s via 8x50G PAM4 lanes
- 850 nm VCSEL over MMF
- Under 8 W per end
- 10m (33ft); IEEE 802.3db / 802.3ck
Applications
- 400G Ethernet QSFP112 short reaches
- 200G/400G multimode rack links
Specifications
| Parameter | Value |
|---|---|
| Form Factor | QSFP112 |
| Data Rate | 425Gb/s |
| Wavelength | 850nm |
| Cable Length | 10m (33ft) |
| Modulation | PAM4 |
| Equipment Requirement | FEC |
| Number of Lanes | 8 TX and 8 RX (50G) |
| Voltage | 3.3V |
| Cable Type | Multimode (MMF) |
| DDM/DDOM | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| Max Power Consumption | <8.0W Each End |
| Protocol | QSFP112 MSA Rev2.1.1 and IEEE 802.3db, IEEE 802.3ck |
| Application | 400G Ethernet and 200G Ethernet |
| Modulation Format | PAM4 |
| Protocols | QSFP112 MSA Rev2.1.1 and IEEE 802.3db, IEEE 802.3ck |
| Connector Type | QSFP112 to QSFP112 |
| Power Consumption | ＜8W |
| Compatible Brands | Adva / Nec |
Ordering References
Model and part numbers for ordering reference:
| Reference | Description |
|---|---|
| QSFP-DD-400G-AOC-10M | F-tone part number |
| QSFP-DD-400G-AOC-10M | F-tone part number (alt listing) |
