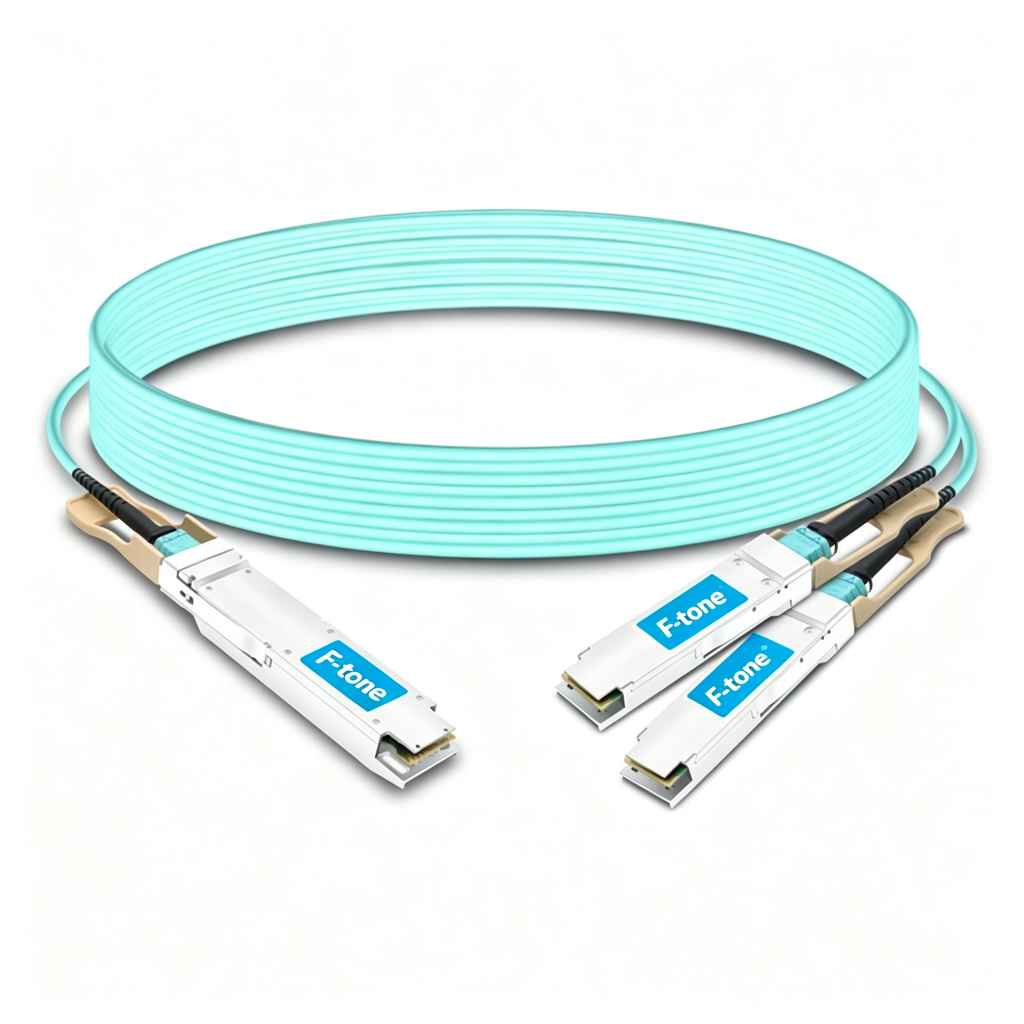

1 / 510m 400G OSFP to Dual 200G QSFP56 Breakout AOC
F-tone Networks 10m (32.81ft) 400G OSFP into dual 200G QSFP56 AOC, 850nm VCSEL PAM4, LSZH MMF, FEC, <10W/<5W. Factory terminated. Ask Betty or Una for a quote.
- Part Number
- OSFP-2Q56-AOC10M
- Manufacturer
- F-tone
- Form Factor
- OSFP to 2x QSFP56
- Data Rate
- 400Gb/s to 2 x 200Gb/s
- Wavelength
- 850nm
- Cable Length
- 10m (32.81ft)
Reference model FT-OSFP-2Q56-AOC10M in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| Part Number | OSFP-2Q56-AOC10M |
|---|---|
| Manufacturer | F-tone |
| Form Factor | OSFP to 2x QSFP56 |
| Data Rate | 400Gb/s to 2 x 200Gb/s |
| Wavelength | 850nm |
| Cable Length | 10m (32.81ft) |
| 调制技术 | PAM4 |
| 设备要求 | FEC |
| Jacket Material | 低烟无卤 |
| Min. Bend Radius | 30mm |
| Cable Type | 多模(MMF) |
| DDM/DDOM | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| 电压 | 3.3V |
| Protocol | CMIS 4.0, SFF-8636 |
| 最大功耗 | < 10W (400G OSFP) < 5W (200G QSFP56) |
| Connector Type | Fiber Optic Cable |
| 应用 | 400GBASE-SR8 to 2x 200GBASE HDR, Ethernet |
| 惠普兼容型号 | P45733-B21 |
| NVIDIA Compatible | MFA7U10-H010 |
| Minimum Bend Radius | 7.5mm |
| MTBF | ≈50 Million Hours |
| Power supply | 3.3V |
| Protocols | 400G Ethernet, InfiniBand 4xFDR/EDR |
| 10GSFP-AOC-XFM | 10G |
| SFP28-25G-AOC-XFM | 25G |
| QQ-AOC-XFM | 40G |
| QSFP4S-AOC-XFM | 40G |
| QSFP-8X-AOC-XFM | 40G |
| QSFP-56G-AOC-XFM | 56G |
| QSFP-100G-AOC-XFM | 100G |
| QSFP28-AOC-4SFP28-XFM | 100G |
| Power Consumption | ＜8W |
Product details
An OSFP 400G face splits toward two QSFP56 200G partners over multimode active optics. Length is 10m (32.81 ft) under LSZH MMF; 850 nm VCSEL drives PIN receivers with PAM4 and mandatory FEC; DDM is present. Budget under 10 W on the OSFP and under 5 W per QSFP56, case 0–70 C, bend floor 30 mm, CMIS 4.0 / SFF-8636 — suited to 400GBASE-SR8 feeding dual 200GBASE HDR paths.
Key Features
- OSFP host into dual QSFP56 legs
- 400 Gb/s splitting to 2x 200 Gb/s
- 850 nm VCSEL, PAM4, FEC required
- LSZH multimode jacket
- Power <10 W / <5 W over 10m (32.81ft)
Applications
- 400G OSFP feeding dual 200G QSFP56 ports
- Ethernet and InfiniBand HDR rack breakout
Specifications
| Parameter | Value |
|---|---|
| Form Factor | OSFP to 2x QSFP56 |
| Data Rate | 400Gb/s to 2 x 200Gb/s |
| Wavelength | 850nm |
| Cable Length | 10m (32.81ft) |
| Modulation | PAM4 |
| Equipment Requirement | FEC |
| Jacket Material | LSZH |
| Min. Bend Radius | 30mm |
| Cable Type | Multimode (MMF) |
| DDM/DDOM | Yes |
| Transmitter Type | 850nm VCSEL |
| Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| Voltage | 3.3V |
| Protocol | CMIS 4.0, SFF-8636 |
| Max Power Consumption | < 10W (400G OSFP) < 5W (200G QSFP56) |
| Application | 400GBASE-SR8 to 2x 200GBASE HDR, Ethernet |
| Protocols | 400G Ethernet, InfiniBand 4xFDR/EDR |
| Compatible Brands | Adva / HP / HPE / Nec |
Ordering References
Model and part numbers for ordering reference:
| Reference | Description |
|---|---|
| OSFP-2Q56-AOC10M | F-tone part number |
| P45733-B21 | HPE compatible model |
| MFA7U10-H010 | NVIDIA compatible model |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
