1 / 6MODEL · FT-100837

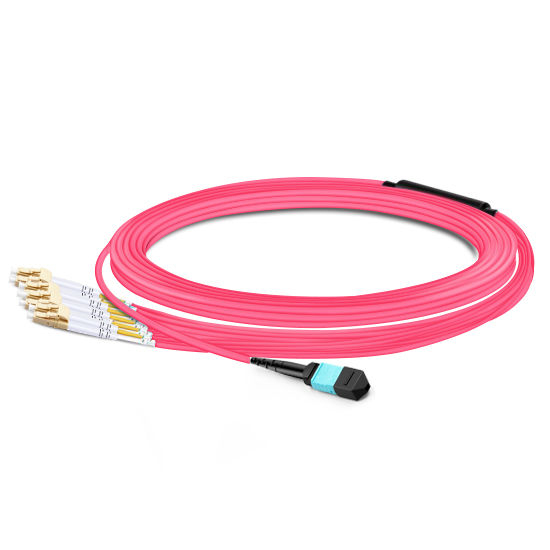

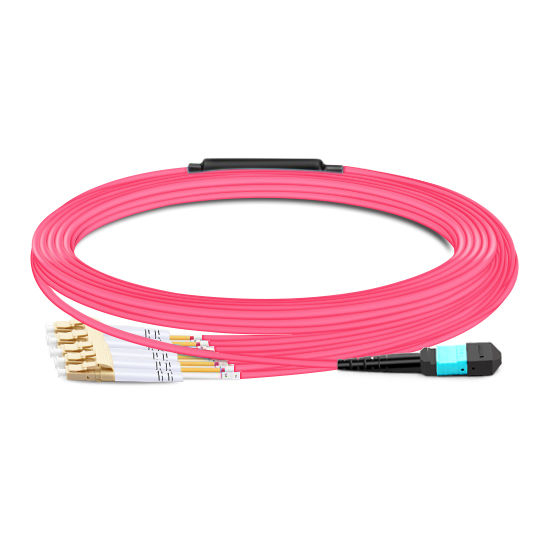

10m MTP to Four LC Duplex Breakout, 8F OM4 LSZH
F-tone Networks 10m (33ft) US Conec MTP into four LC duplex OM4 Elite breakout, 8F Type B plenum LSZH aqua/violet. Ask Betty or Una for a quote. Now. Now.

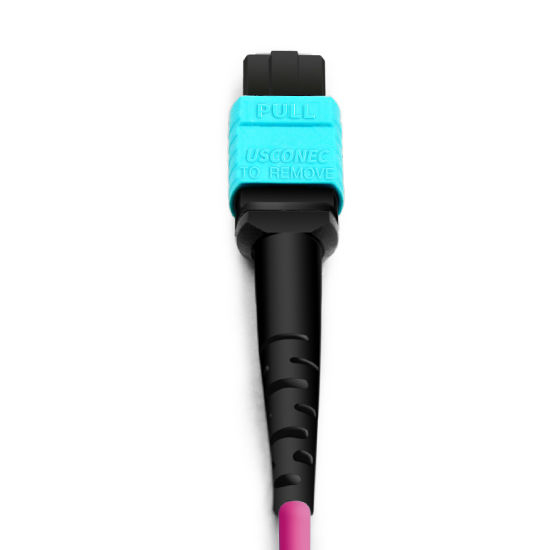

- Connector A
- MTP Female (US Conec)

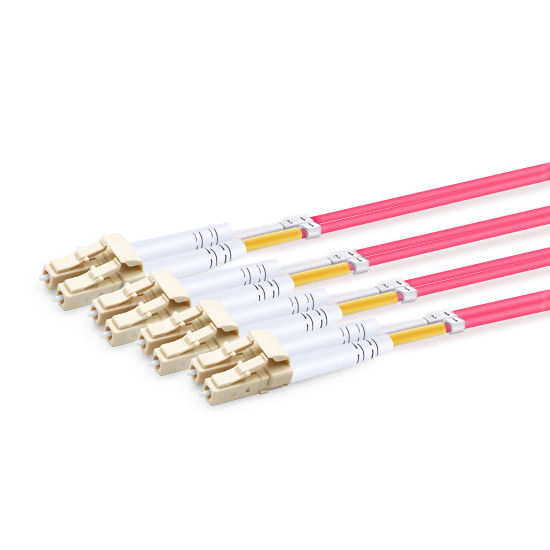

- Connector B
- LC UPC Duplex
- Fiber Type
- OM4 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- 8 Fibers
- Distance
- 10m (33ft)
Reference model FT-100837 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MTP Female (US Conec) |
|---|---|
| Connector B | LC UPC Duplex |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 8 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥20dB |
| LC Connector RL | ≥20dB |
| 850nm 处的衰减 | ≤2.3 dB/km |
| 1300nm 处的衰减 | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua/Violet |
| 扇出直径 | 2.0mm |
| Min. Bend Radius | 7.5mm |
| 安装拉伸载荷 | 100 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Fiber Mode | OM4 50/125 m |
| Insertion Loss | MTP0.35dB, LC0.3dB |
| Jacket OD | 3.0mm |
| Installation Tensile Load | 100 N |
| Polish Type | UPC to UPC |
| Armoured | No |
| MTP Connector Insert Loss | 0.35dB |
| Trunk Diameter | 3.0mm |
| Min. Bend Radius (Fiber Cable) Dynamic | 10mm |
Overview
Product details
US Conec MTP female fans eight OM4 fibers into four LC UPC duplexes. Type B Elite, LSZH aqua/violet, ClearCurve, 10m (33ft). MTP 0.35 dB max, LC within 0.2 dB, bend 7.5 mm.
Key Features
- US Conec MTP into four LC duplexes
- Eight OM4 50/125 strands
- Type B Elite, LSZH aqua/violet
- MTP 0.35 dB max / LC <=0.2 dB
- 10m (33ft) ClearCurve build
Applications
- OM4 MTP landing on four LC duplexes
- Eight-fiber multimode Elite fan-out
Specifications
| Parameter | Value |
|---|---|
| Connector A | MTP Female (US Conec) |
| Connector B | LC UPC Duplex |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 8 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥20dB |
| LC Connector RL | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km |
| Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua/Violet |

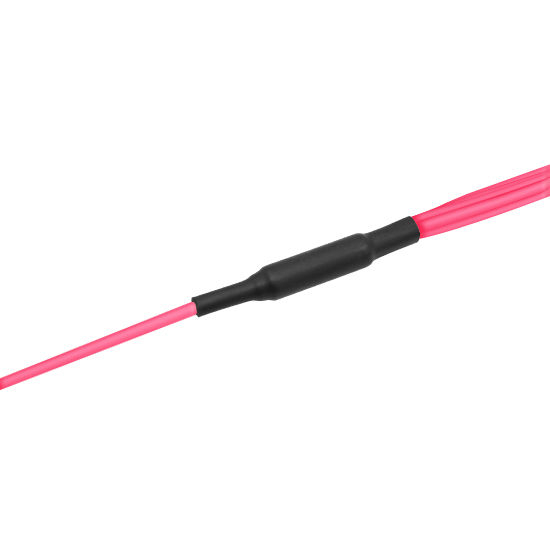

| Breakout Diameter | 2.0mm |
| Min. Bend Radius | 7.5mm |
| Installation Tensile Load | 100 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Polish Type | UPC to UPC |
| Armoured | No |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
