MODEL · FT-100802

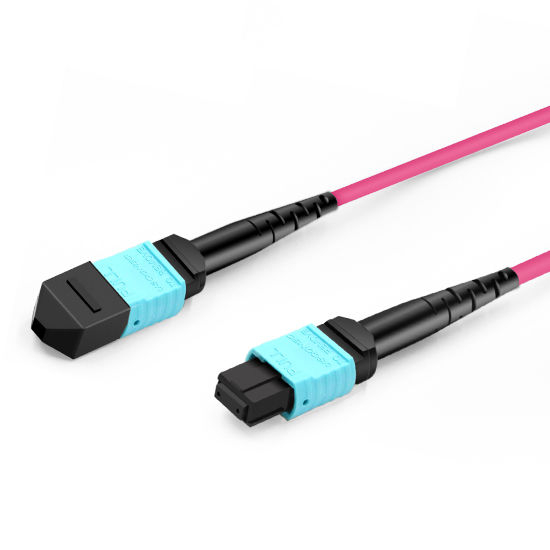

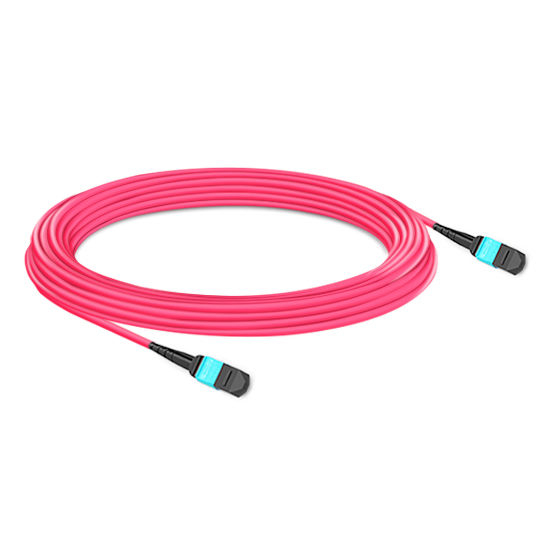

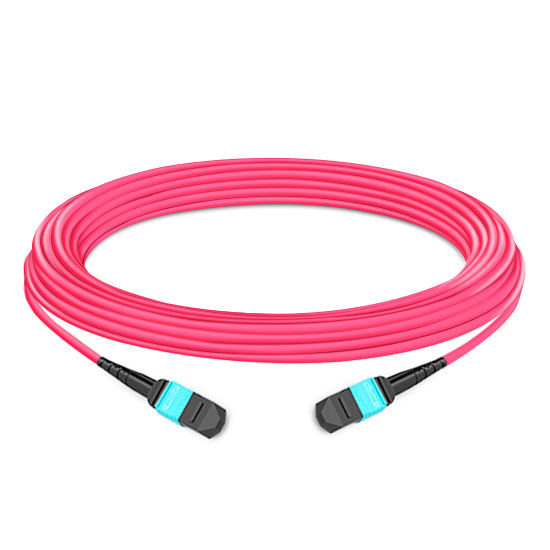

10m MTP-12 Female OM4 Trunk, 12F Type B Plenum

F-tone Networks 10m (33ft) MTP-12 female OM4 trunk, 12F Type B OFNP plenum, ClearCurve, IL 0.35dB max. Factory terminated. Ask Betty or Una for a quote.

Optical Transceivers Fiber Cables & Patch Cords

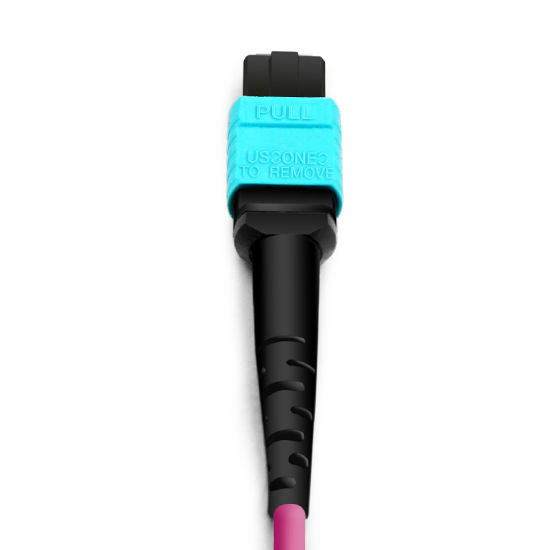

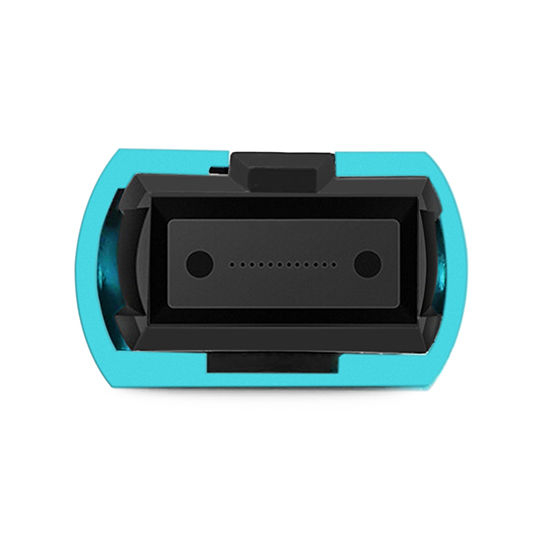

Connector A: MTP Female (US Conec)
Connector B: MTP Female (US Conec)
Fiber Type: OM4 50/125μm Multimode
Wavelength: 850/1300nm
Fiber Count: 12 Fibers
Distance: 10m (33ft)

Reference model FT-100802 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓

Specifications

Technical parameters

Connector A	MTP Female (US Conec)
Connector B	MTP Female (US Conec)
Fiber Type	OM4 50/125μm Multimode
Wavelength	850/1300nm
Fiber Count	12 Fibers
Distance	10m (33ft)
Fiber Glass	Corning ClearCurve®
Cable Jacket	全会 (OFNP)
抛光型	UPC to UPC
Min. Bend Radius	7.5mm
Insertion Loss	0.35dB Max (0.15dB Typ.)
Return Loss	≥20dB
850nm 处的衰减	≤2.3 dB/km
1300nm 处的衰减	≤0.6 dB/km
Cable Diameter	3.0mm
Fiber Color	Aqua/Violet
安装拉伸载荷	66 N
长期拉伸载荷	50 N
Operating Temperature	商业级/工业级/军品级可选
Storage Temperature	商业级/工业级/军品级可选
Polish Type	UPC to UPC
Armoured	No
Insert Loss	0.35dB
Approximate Diameter	3.0mm
Min. Bend Radius (Fiber Core)	7.5mm

Overview

Product details

Parallel OM4 trunks between MTP female cages cover twelve multimode strands over 10m (33ft). US Conec MTP tips, Type B polarity, OFNP plenum jacket (specs; title said Plenum LSZH), ClearCurve glass at 3.0 mm. Caps: IL 0.35 dB max (0.15 typ.), RL >=20 dB, bend 7.5 mm.

Key Features

Matched MTP female (US Conec) ends
Twelve OM4 50/125 multimode strands
Type B polarity, UPC, OFNP plenum
IL 0.35 dB max / RL >=20 dB
10m (33ft) ClearCurve at 3.0 mm

Applications

OM4 MTP-12 cassette interconnects
Twelve-fiber multimode trunks in plenum spaces

Specifications

Parameter	Value
Connector A	MTP Female (US Conec)
Connector B	MTP Female (US Conec)
Fiber Type	OM4 50/125μm Multimode
Wavelength	850/1300nm
Fiber Count	12 Fibers
Distance	10m (33ft)
Fiber Glass	Corning ClearCurve®
Cable Jacket	OFNP
Polish Type	UPC to UPC
Min. Bend Radius	7.5mm
Insertion Loss	0.35dB Max (0.15dB Typ.)
Return Loss	≥20dB
Attenuation at 850nm	≤2.3 dB/km
Attenuation at 1300nm	≤0.6 dB/km
Cable Diameter	3.0mm
Fiber Color	Aqua/Violet
Installation Tensile Load	66 N
Long-term Tensile Load	50 N
Operating Temperature	Commercial, industrial or military grade (selectable)
Storage Temperature	Commercial, industrial or military grade (selectable)
Armoured	No
Approximate Diameter	3.0mm
Min. Bend Radius (Fiber Core)	7.5mm
