1 / 6MODEL · FT-100820

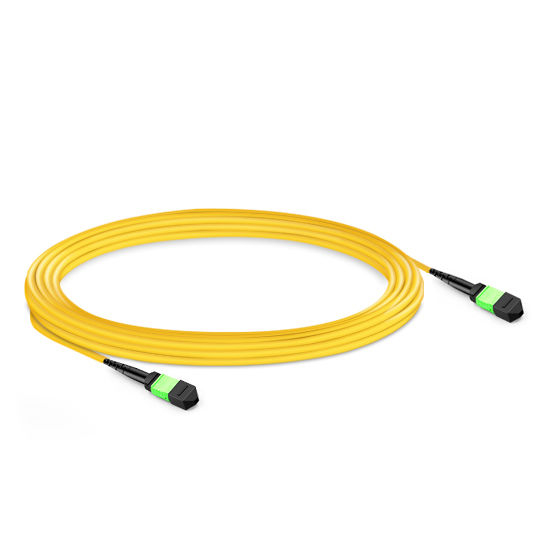

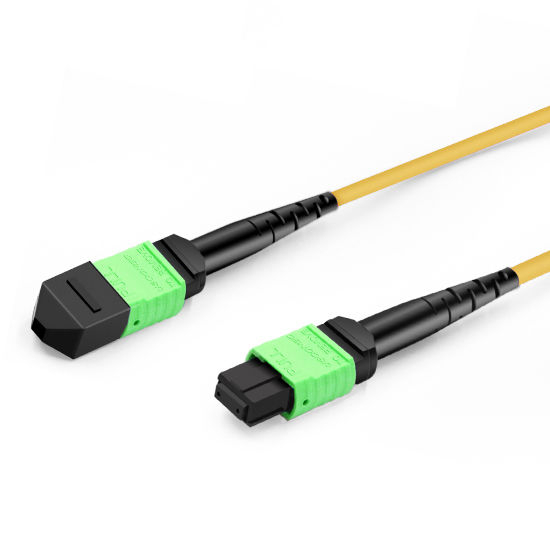

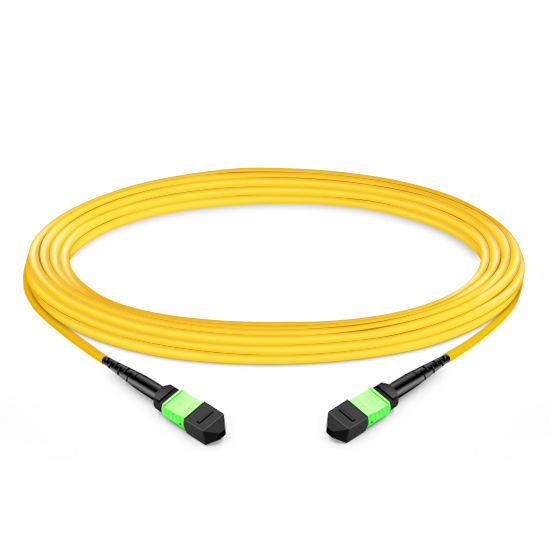

10m MTP-12 Female OS2 Elite Trunk, 12F Type B
F-tone Networks 10m (33ft) MTP-12 female OS2 Elite trunk, 12F Type B LSZH yellow, APC, ClearCurve, IL 0.35dB max. Factory terminated. Ask Betty or Una.
- Connector A

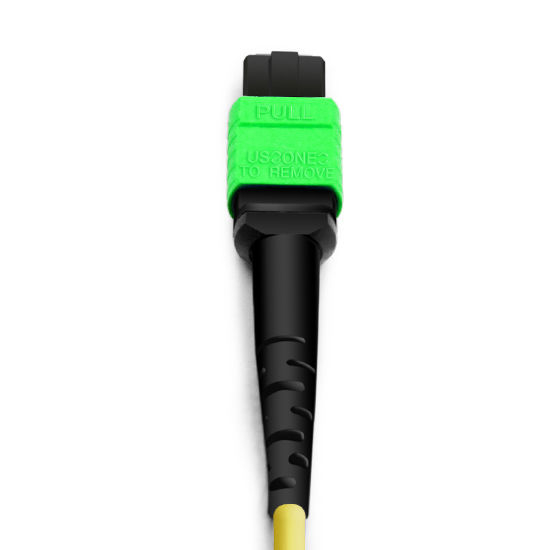

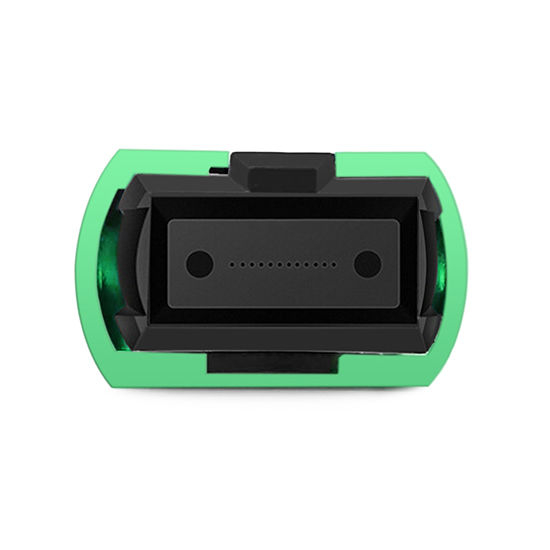

- MTP Female (US Conec)
- Connector B
- MTP Female (US Conec)
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm
- Fiber Count
- 12 Fibers
- Distance
- 10m (33ft)
Reference model FT-100820 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MTP Female (US Conec) |
|---|---|
| Connector B | MTP Female (US Conec) |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| 抛光型 | APC to APC |
| Min. Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| 安装拉伸载荷 | 100 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Polish Type | APC to APC |
| Armoured | No |
| Insert Loss | 0.35dB |
| Approximate Diameter | 3.0mm |
| Min. Bend Radius (Fiber Core) | 10mm |
Overview
Product details
Single-mode Elite trunks want APC polish and high return loss on both MTP faces. Twelve OS2 strands under yellow LSZH ClearCurve span 10m (33ft) at 3.0 mm. IL 0.35 dB max, RL >=60 dB, bend floor 10 mm, Type B polarity.
Key Features
- Matched MTP female (US Conec) ends
- Twelve OS2 9/125 single-mode strands
- Type B, APC-to-APC, LSZH yellow
- IL 0.35 dB max / RL >=60 dB
- 10m (33ft) ClearCurve Elite build
Applications
- OS2 MTP-12 Elite cassette links
- Twelve-fiber single-mode trunks in LSZH plants
Specifications
| Parameter | Value |
|---|---|
| Connector A | MTP Female (US Conec) |
| Connector B | MTP Female (US Conec) |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Polish Type | APC to APC |
| Min. Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| Installation Tensile Load | 100 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Armoured | No |
| Approximate Diameter | 3.0mm |
| Min. Bend Radius (Fiber Core) | 10mm |
