MODEL · FT-103113

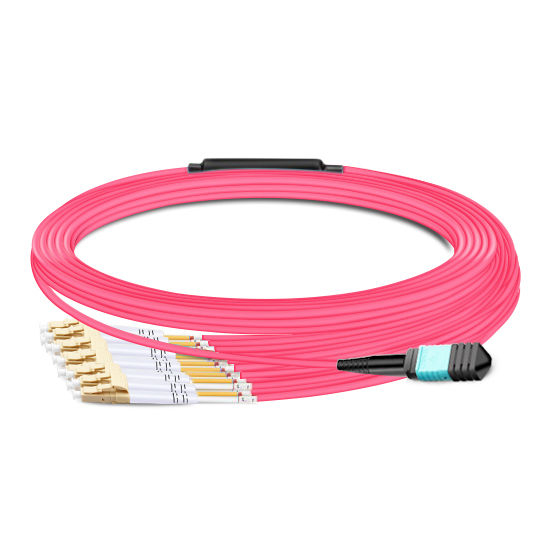

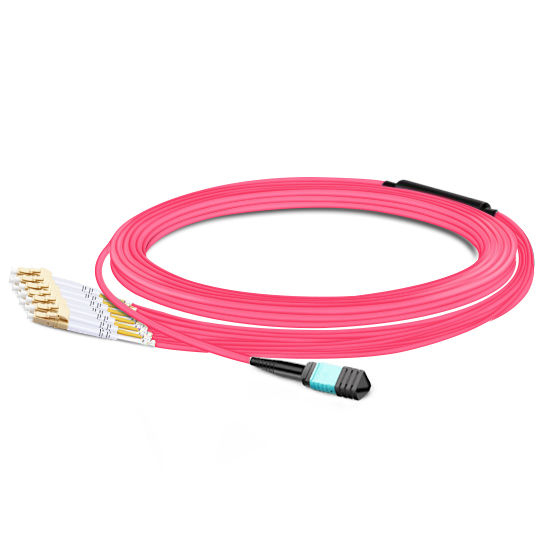

10m MPO-12 to Six LC Duplex Breakout, OM4 LSZH

F-tone Networks 10m (33ft) MPO-12 into six LC duplex OM4 Elite breakout, 12F Type B LSZH aqua/violet, ClearCurve. Ask Betty or Una for a quote. Now. Now.

Optical Transceivers Fiber Cables & Patch Cords

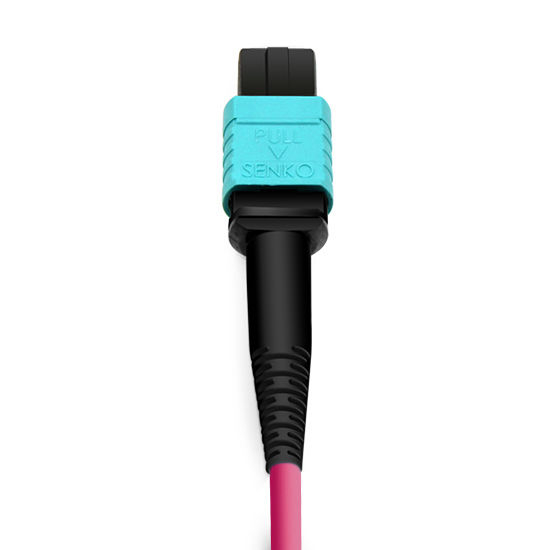

Connector A: MPO Female

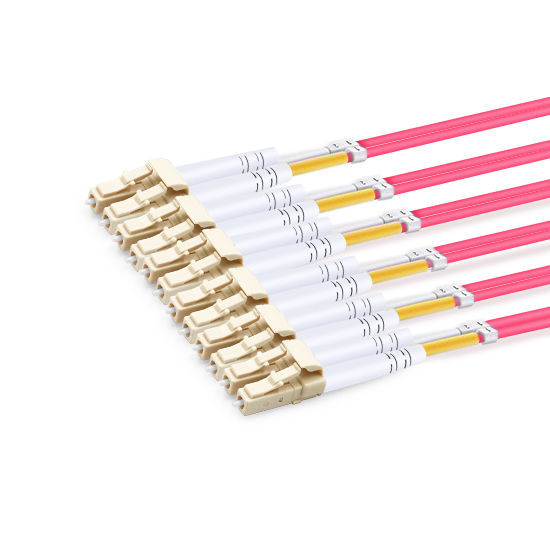

Connector B: LC UPC Duplex
Fiber Type: OM4 50/125μm Multimode
Wavelength: 850/1300nm
Fiber Count: 12 Fibers
Distance: 10m (33ft)

Reference model FT-103113 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓

Specifications

Technical parameters

Connector A	MPO Female
Connector B	LC UPC Duplex
Fiber Type	OM4 50/125μm Multimode
Wavelength	850/1300nm
Fiber Count	12 Fibers
Distance	10m (33ft)
Fiber Glass	Corning ClearCurve®
Cable Jacket	低烟无卤
MPO Connector IL	0.75dB Max (0.35dB Typ.)
LC Connector IL	≤0.2dB
MPO Connector RL	≥20dB
LC Connector RL	≥20dB
850nm 处的衰减	≤2.3 dB/km
1300nm 处的衰减	≤0.6 dB/km
Cable Diameter	3.0mm
Fiber Color	Aqua/Violet
扇出直径	2.0mm
Min. Bend Radius	7.5mm
安装拉伸载荷	100 N
长期拉伸载荷	50 N
Operating Temperature	商业级/工业级/军品级可选
Storage Temperature	商业级/工业级/军品级可选
Polish Type	UPC to UPC
Armoured	No
Insert Loss	≤0.35dB
Min. Bend Radius (Fiber Core)	7.5mm
Attenuation (dB/km)	≤2.3 at 850nm, ≤0.6 at 1300nm

Overview

Product details

Step up to OM4 glass while keeping the twelve-fiber MPO-to-LC layout. Aqua/violet LSZH, Type B, ClearCurve, 10m (33ft). Optical sheet mirrors the OM3 sibling yet targets higher-rate multimode short reaches.

Key Features

MPO receptacle into six LC duplex legs
Twelve OM4 50/125 strands
Type B polarity, UPC, LSZH aqua/violet
MPO 0.75 dB max / LC <=0.2 dB
10m (33ft) ClearCurve build

Applications

OM4 cassette landing on LC patch fields
High-rate multimode fan-out in LSZH rooms

Specifications

Parameter	Value
Connector A	MPO Female
Connector B	LC UPC Duplex
Fiber Type	OM4 50/125μm Multimode
Wavelength	850/1300nm
Fiber Count	12 Fibers
Distance	10m (33ft)
Fiber Glass	Corning ClearCurve®
Cable Jacket	LSZH
MPO Connector IL	0.75dB Max (0.35dB Typ.)
LC Connector IL	≤0.2dB
MPO Connector RL	≥20dB
LC Connector RL	≥20dB
Attenuation at 850nm	≤2.3 dB/km
Attenuation at 1300nm	≤0.6 dB/km
Cable Diameter	3.0mm
Fiber Color	Aqua/Violet

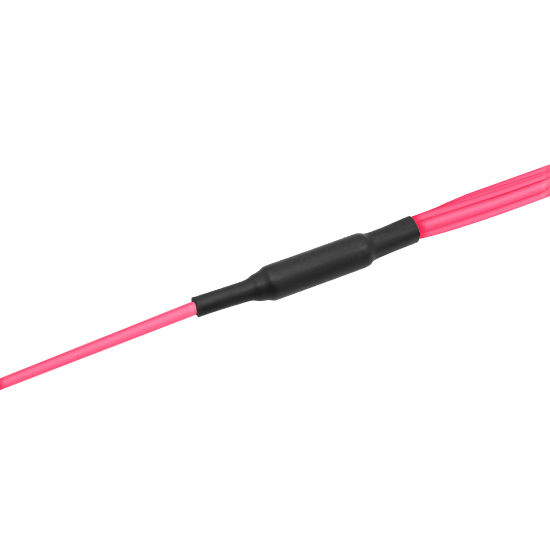

Breakout Diameter	2.0mm
Min. Bend Radius	7.5mm
Installation Tensile Load	100 N
Long-term Tensile Load	50 N
Operating Temperature	Commercial, industrial or military grade (selectable)
Storage Temperature	Commercial, industrial or military grade (selectable)
Polish Type	UPC to UPC
Armoured	No
Insertion Loss	≤0.35dB
Min. Bend Radius (Fiber Core)	7.5mm
Attenuation (dB/km)	≤2.3 at 850nm, ≤0.6 at 1300nm

Contact Us

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
