1 / 6MODEL · FT-103277

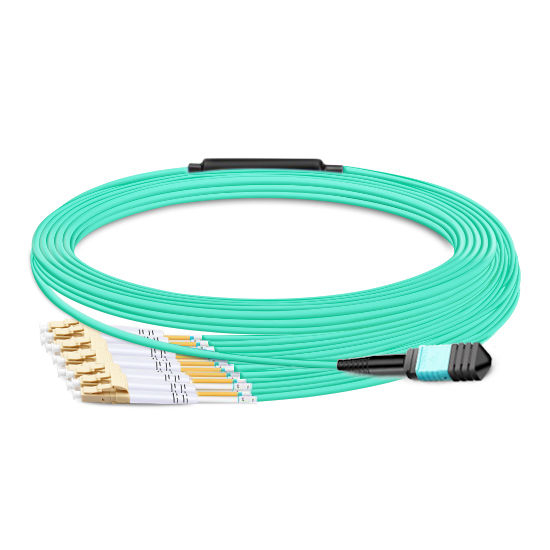

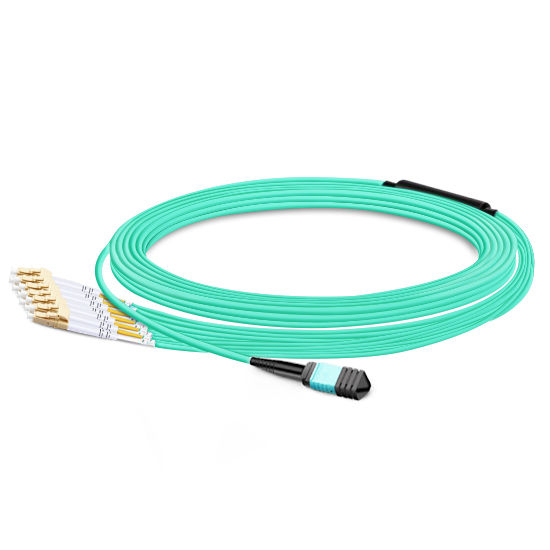

10m MPO-12 to Six LC Duplex Breakout, OM3 LSZH
F-tone Networks 10m (33ft) MPO-12 into six LC duplex OM3 Elite breakout, 12F Type B LSZH aqua, ClearCurve, listed IL. Ask Betty or Una for a quote. Now.
- Connector A
- MPO Female
- Connector B
- LC UPC Duplex
- Fiber Type
- OM3 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- 12 Fibers
- Distance
- 10m (33ft)
Reference model FT-103277 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MPO Female |
|---|---|
| Connector B | LC UPC Duplex |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| MPO Connector IL | 0.75dB Max (0.35dB Typ.) |
| LC Connector IL | ≤0.2dB |
| MPO Connector RL | ≥20dB |
| LC Connector RL | ≥20dB |
| 850nm 处的衰减 | ≤2.3 dB/km |
| 1300nm 处的衰减 | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua |
| 扇出直径 | 2.0mm |
| Min. Bend Radius | 7.5mm |
| 安装拉伸载荷 | 100 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Polish Type | UPC to UPC |
| Armoured | no |
| Insert Loss | ≤0.35dB |
| Min. Bend Radius(Fiber Core) | 7.5mm |
| Attenuation (dB/km) | ≤2.3 at 850nm, ≤0.6 at 1300nm |
| Max Transmission Distance | 300M |
Overview
Product details
Parallel OM3 trunks often terminate on LC patch fields; this Elite harness does that with twelve fibers. Type B polarity under aqua LSZH ClearCurve for 10m (33ft). MPO loss ceiling 0.75 dB, LC within 0.2 dB, bend 7.5 mm.
Key Features

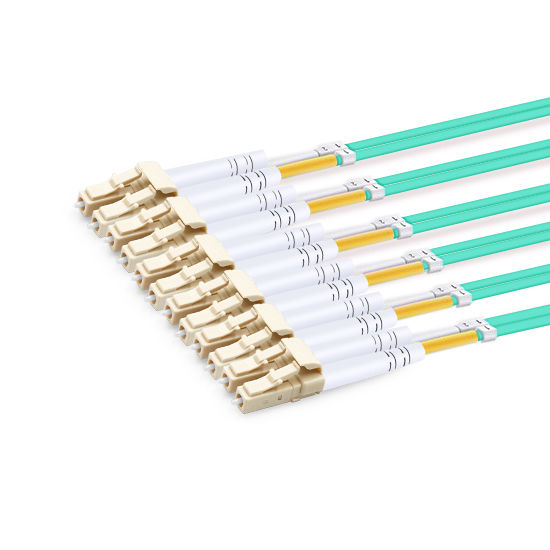

- MPO receptacle into six LC duplex legs
- Twelve OM3 50/125 strands
- Type B polarity, UPC, LSZH aqua
- MPO 0.75 dB max / LC <=0.2 dB
- 10m (33ft) ClearCurve build
Applications
- OM3 cassette landing on LC patch fields
- Twelve-fiber multimode rack fan-out
Specifications
| Parameter | Value |
|---|---|
| Connector A | MPO Female |
| Connector B | LC UPC Duplex |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| MPO Connector IL | 0.75dB Max (0.35dB Typ.) |
| LC Connector IL | ≤0.2dB |
| MPO Connector RL | ≥20dB |
| LC Connector RL | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km |
| Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua |
| Breakout Diameter | 2.0mm |
| Min. Bend Radius | 7.5mm |
| Installation Tensile Load | 100 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Polish Type | UPC to UPC |
| Armoured | no |
| Insertion Loss | ≤0.35dB |
| Min. Bend Radius(Fiber Core) | 7.5mm |
| Attenuation (dB/km) | ≤2.3 at 850nm, ≤0.6 at 1300nm |
| Max Transmission Distance | 300M |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
