1 / 6MODEL · FT-103063

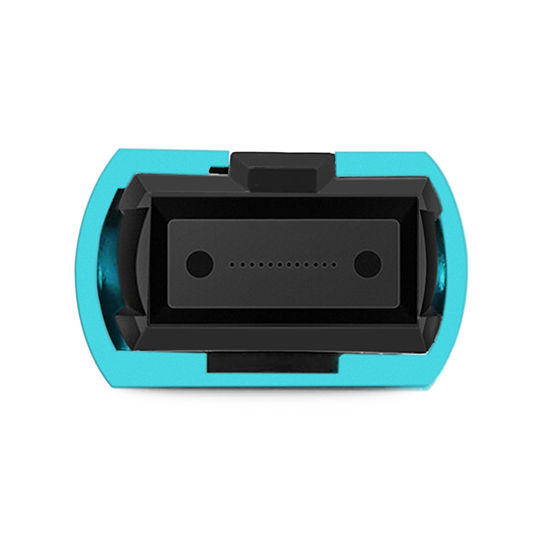

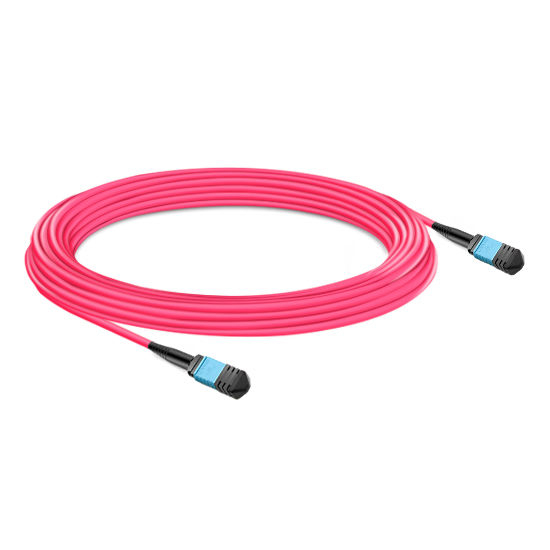

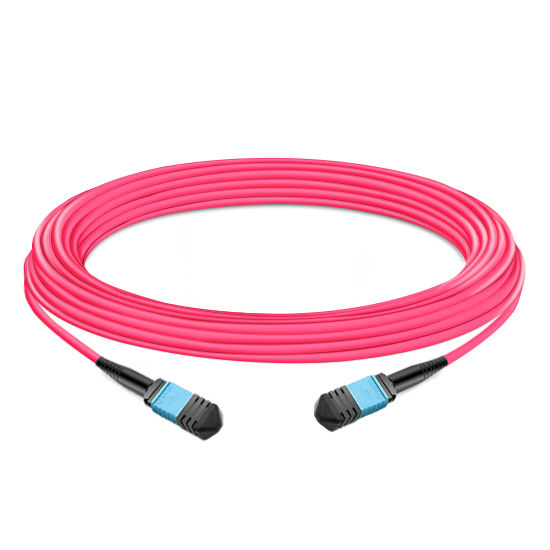

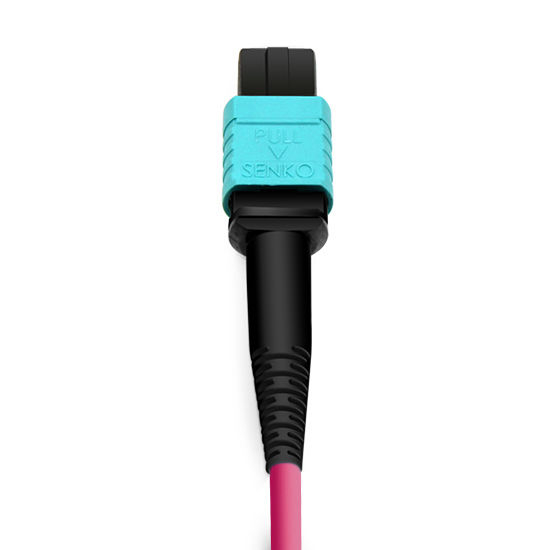

10m MPO-12 Female Trunk, 12F OM4 Type B LSZH
F-tone Networks 10m (33ft) MPO-12 female OM4 trunk, twelve fibers Type B LSZH aqua/violet, ClearCurve, IL 0.35dB max. Factory terminated. Ask Betty or Una.
- Connector A
- MPO Female
- Connector B
- MPO Female
- Fiber Type
- OM4 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- 12 Fibers
- Distance10
- 10m (33ft)
Reference model FT-103063 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MPO Female |
|---|---|
| Connector B | MPO Female |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 12 Fibers |
| Distance10 | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| 抛光型 | UPC to UPC |
| Min. Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | ≤2.3 dB/km |
| 1300nm 处的衰减 | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua/Violet |
| 安装拉伸载荷 | 66 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Distance | 10m (33ft) |
| Polish Type | UPC to UPC |
| Armoured | no |
| Insert Loss | ≤0.35dB |
| Min. Bend Radius(Fiber Core) | 7.5mm |
| Attenuation (dB/km) | ≤2.3 at 850nm, ≤0.6 at 1300nm |
Overview
Product details
Swap the glass to OM4 and the jacket cue to aqua/violet while keeping twelve-fiber MPO females and Type B polarity. ClearCurve, 10m (33ft), 3.0 mm. Same 0.35/0.15 dB insertion pair.
Key Features
- Matched MPO female ends
- Twelve OM4 50/125 strands
- Type B, UPC, LSZH aqua/violet
- IL 0.35 dB max (0.15 typ.)
- 10m (33ft) ClearCurve build
Applications
- OM4 MPO cassette interconnects
- Twelve-fiber high-rate multimode trunks
Specifications
| Parameter | Value |
|---|---|
| Connector A | MPO Female |
| Connector B | MPO Female |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | 12 Fibers |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Polish Type | UPC to UPC |
| Min. Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km |
| Attenuation at 1300nm | ≤0.6 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Aqua/Violet |
| Installation Tensile Load | 66 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Distance | 10m (33ft) |
| Armoured | no |
| Min. Bend Radius(Fiber Core) | 7.5mm |
| Attenuation (dB/km) | ≤2.3 at 850nm, ≤0.6 at 1300nm |
